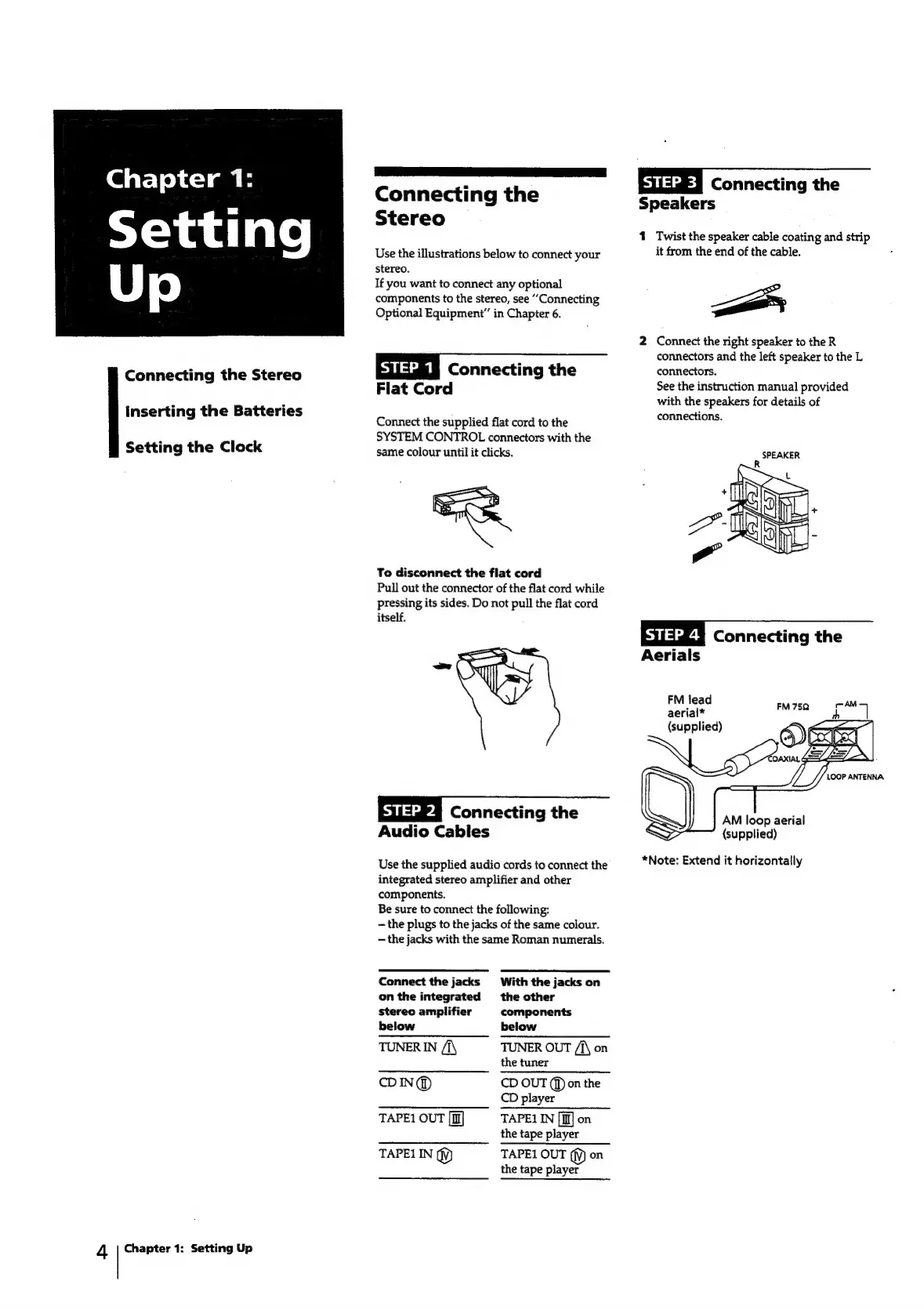

Chapter 1:
Setting
Up
Connecting the Stereo
Inserting the Batteries
Setting the Clock
4 Chapter 1: Setting Up
ee ae
Connecting the
Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 6.
ISTEP 1 Connecting the
Flat Cord
Connect the supplied flat cord to the
SYSTEM CONTROL connectors with the
same colour until it clicks.
To disconnect the flat cord
Pull out the connector of the flat cord while
pressing its sides. Do not pull the flat cord
itself.
| STEP 2 | Connecting the
Audio Cables
Use the supplied audio cords to connect the
integrated stereo amplifier and other
components.
Be sure to connect the following:
— the plugs to the jacks of the same colour.
— the jacks with the same Roman numerals.
Connect the jacks With the jacks on
on the integrated the other
stereo amplifier components
below below
TUNER IN /i\ TUNER OUT /i\ on
the tuner
CDIN@ CD OUT (f)) on the
CD player
TAPE] OUT TAPE1 IN [ill] on
the tape player
TAPE1 IN Ww TAPE1 OUT ® on
the tape player
Bie) Connecting the
Speakers
1 Twist the speaker cable coating and strip
it from the end of the cable.
a
2 Connect the right speaker to the R
connectors and the left speaker to the L
connectors.
See the instruction manual provided
with the speakers for details of
connections.
SPEAKER
| STEP 4, Connecting the
Aerials
ee FM75Q. 7AM
NU
COAXIAL LE L/S .
LOOP ANTENNA
AM loop aerial
(supplied)
*Note: Extend it horizontally
