MVC-CD200/CD300
4-20
LD, PEARL, VIDEO OUT, SH, 16M FLASH MEMORY, 64M SDRAM, CLK GEN, CW, HI CONTROL, AUDIO PROCESS, DC/DC CONVERTER
SY-67

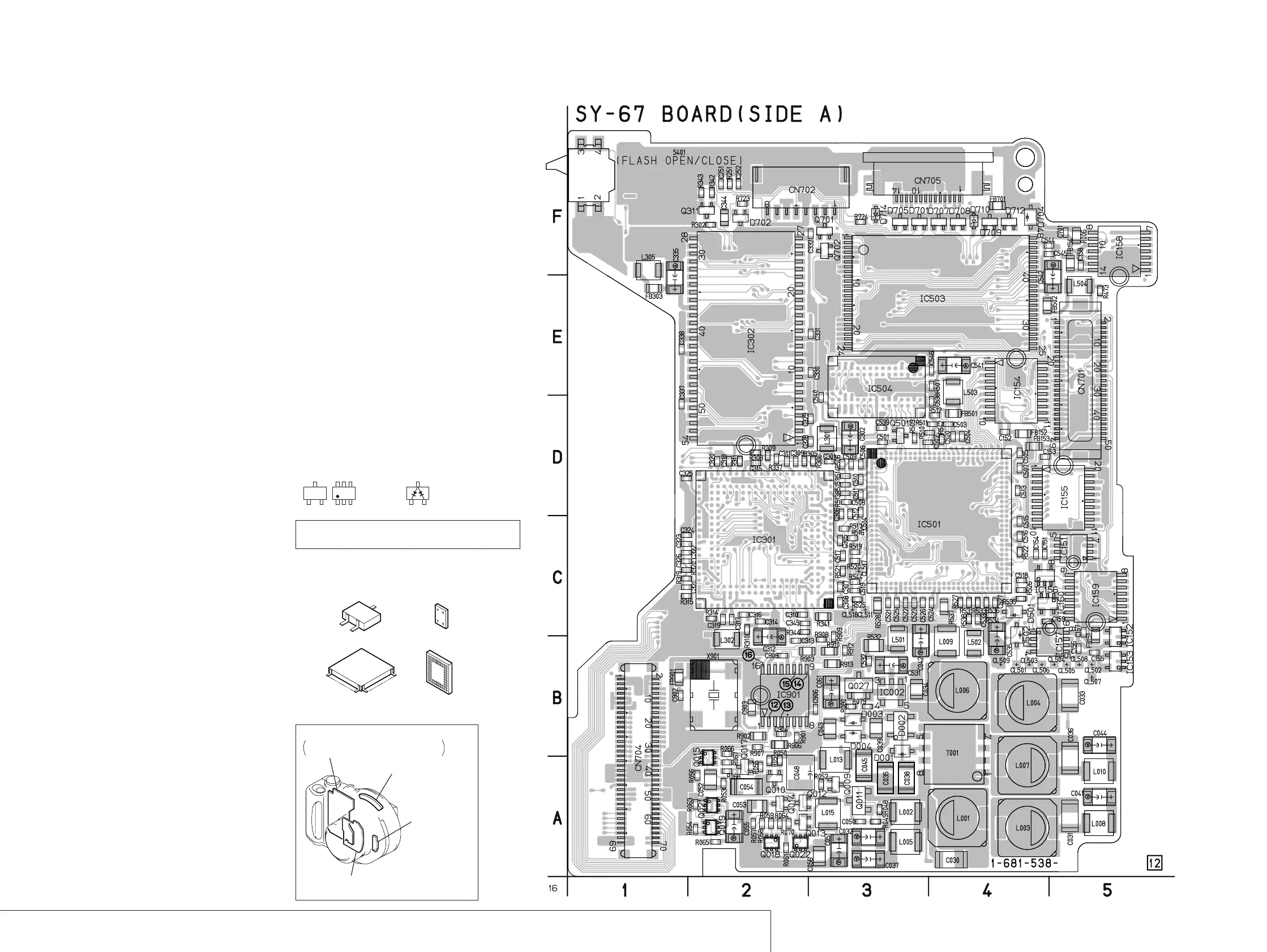

SY-67 (LD, PEARL, VIDEO OUT, SH, 16M FLASH MEMORY, 64M SDRAM, CLK GEN., CW, HI CONTROL,
AUDIO PROCESS, CONNECTOR, DC/DC CONVERTER)
PRINTED WIRING BOARD
— Ref. No. SY-67 Board; 5,000 Series —
4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
For printed wiring board
• Refer to page 4-76 for parts location.
• SY-67 board consists of multiple layers. However, only
the sides (layers) A and B are shown.
• Chip parts
Transistor Diode
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• Replacement of CSP (Chip Size Package) IC used in
this set require a tool.
CSP IC: IC301, 501, 504
C
BE
5
64
2
13
3
21
CSP (chip size package)Conventional
FLASH UNIT
TK-61
(LENS CAP DETECT)
CD-334 (CD300)
(LENS DRIVE, CAMERA PROCESS, CCD IMAGER)
SY-67
LD, PEARL, VIDEO OUT, SH, 16M FLASH MEMORY,
64M SDRAM, CLK GEN, CW, HI CONTROL,
AUDIO PROCESS, DC/DC CONVERTER,
To Next Page
