— 3 —
Ref. No.
J-1
J-2
J-3
J-4
J-5
J-6
J-7
J-8
J-9
J-10
J-11
J-12
J-13
J-14
J-15
J-16
J-17
Name
BU adjustment jig
Personal computer with Windows98/Me installed
Dencho for DDX-G2100 (CD-ROM)
USB driver (SPVD-006) (CD-ROM)
USB cable
Optical power meter (ADVANTEST TQ8210)
Optical sensor (ADVANTEST TQ82107)
Jitter meter (KIKUSUI KJM6235A)
Alignment disk (CD-ROM) (SCD-2700)
8cm CD-R (MCR-156A)
8cm CD-RW (MCRW-156A)
Phillips screw driver (No. 0)
Extension cable (50P, 0.5mm)
Extension cable (18P, 0.5mm)
AC power adaptor (AC-L10)
Power cord
BNC cable (RG58)
Parts Code
J-6082-533-A
J-6082-517-A
3-069-219-01
1-757-293-11
J-6082-512-A
J-6082-487-A
J-6082-374-A
1-475-599-11
1-790-107-22
Usage
Included in 32 pin extension cable for extension between
the mechanism deck and MD-083 board (CN001)
Supplied with BU adjustment jig (J-6082-533-A)
Laser power adjustment
Laser power adjustment
SKEW adjustment, Jitter check
SKEW adjustment, Read (CD) adjustment
Write (CD-R) adjustment
Write (CD-RW) adjustment
SKEW adjustment
For extension between the SY-67 board (CN701) and
MD-083 board (CN404)
Supplied with BU adjustment jig (J-6082-533-A)
For extension between the mechanism deck and MD-083
board (CN002)
For BU adjustment jig
For AC power adaptor
For Jitter meter
J-1 J-2
J-6
J-3
J-7 J-8
J-4 J-5

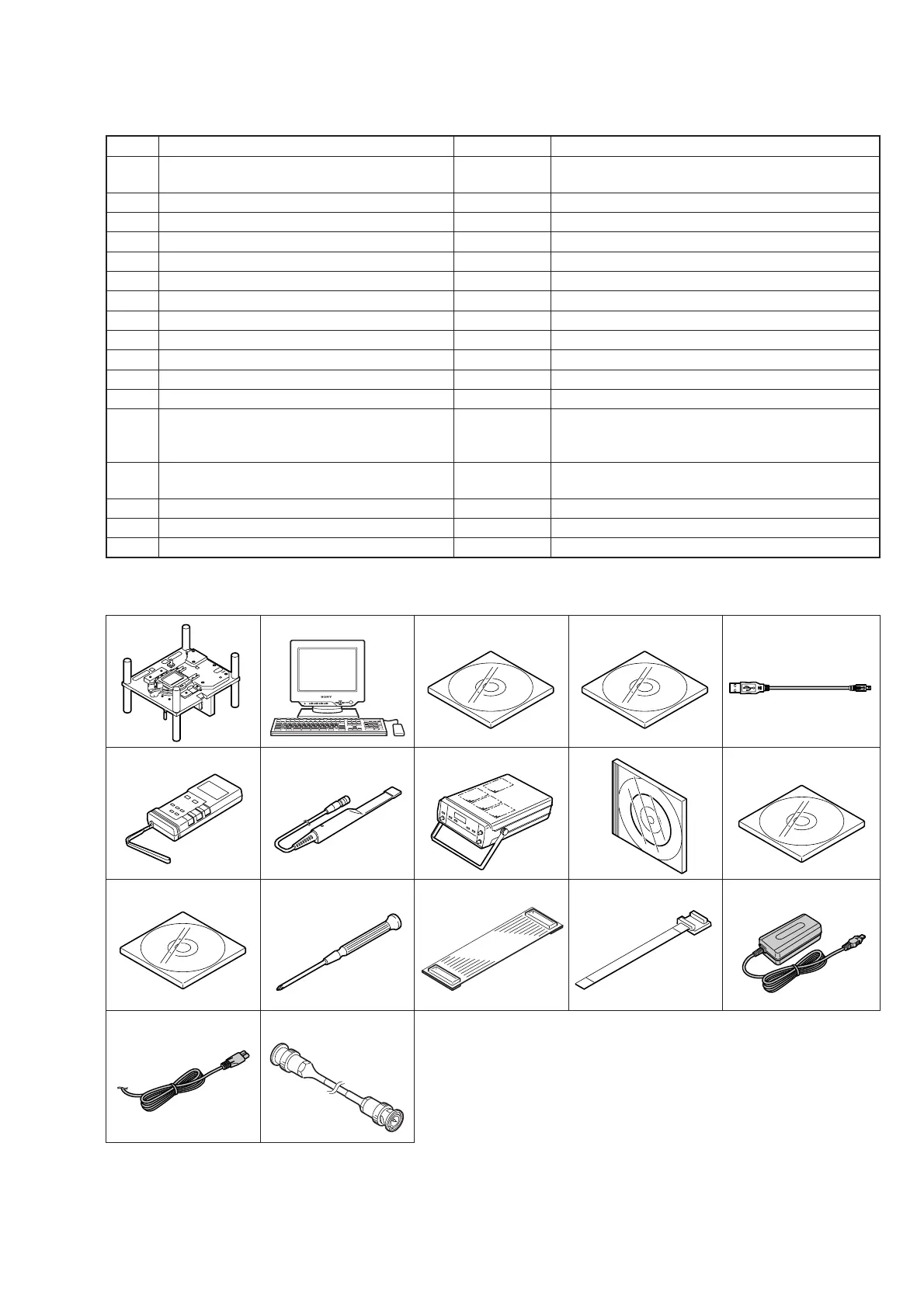

Fig. 1-1.
J-9 J-10
J-11 J-12
J-13
1. List of Service Tools
J-16
J-14 J-15
ADJUSTMENT
J-17
To Next Page
