– 3 –
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
Never look into the laser diode emission from right above when
checking it for adjustment. It is feared that you will lose your sight.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
(LCX-2R)
The laser diode in the optical pick-up block may suffer electro-
static break-down easily. When handling it, perform soldering
bridge to the laser-tap on the flexible board. Also perform mea-
sures against electrostatic break-down sufficiently before the op-
eration. The flexible board is easily damaged and should be handled
with care.

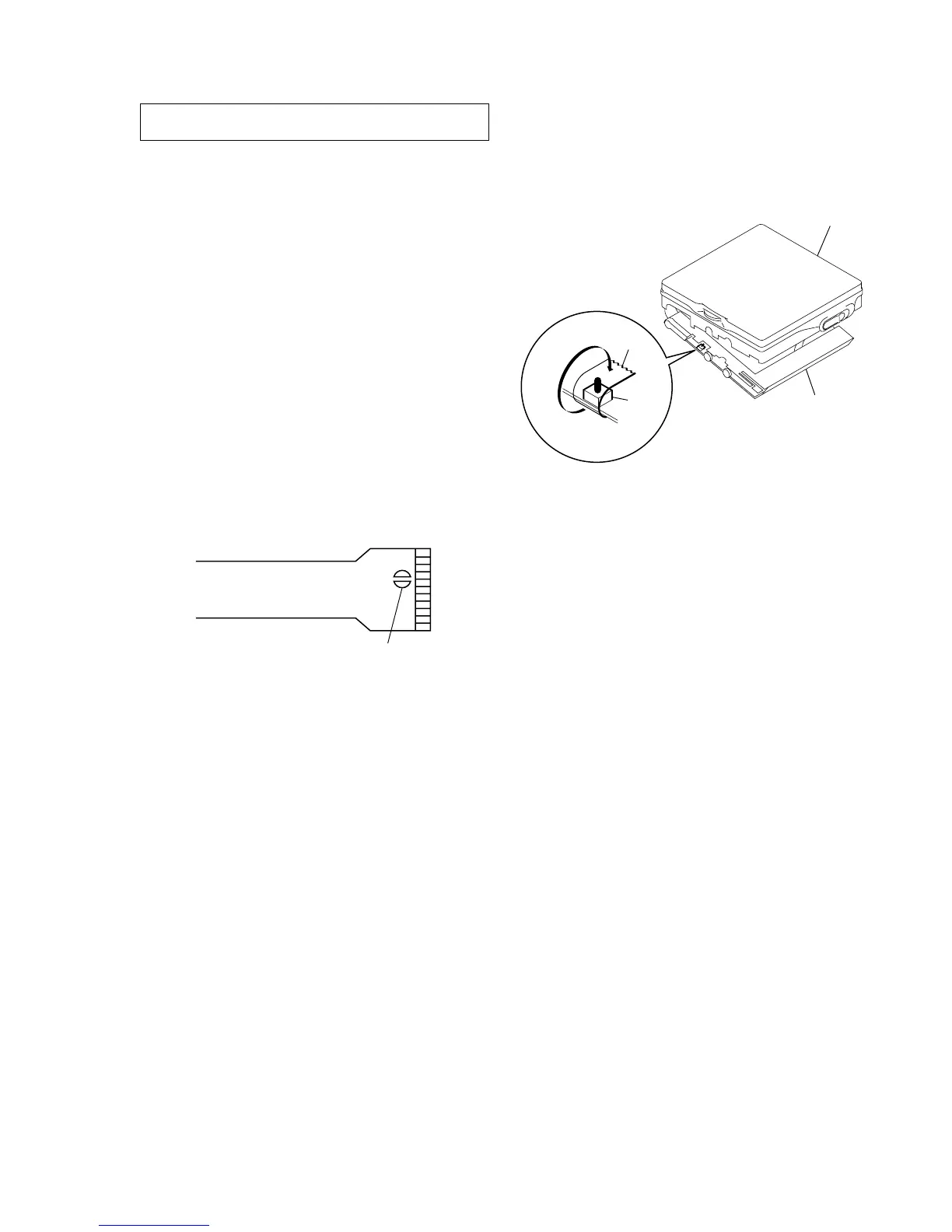

laser-tap
OPTICAL PICK-UP FLEXIBLE BOARD
SECTION 1
SERVICING NOTES
• When repairing this device with the power on, if you remove
the MAIN board or open the upper panel assy, this device stops
working.
In this case, you can work without the device stopping by fas-
tening the hook of the open/close detect switch (S801) with tape.
• This set is designed to perform automatic adjustment for each
adjustment and write its value to EEPROM. Therefore, when
EEPROM (IC802) has been replaced in service, be sure to per-
form automatic adjustment and write resultant values to the new
EEPROM.
(Refer to Section 5 Electrical Adjustment. (page 18))
• Replacement of CXD2660GA (IC502) and CXR701080-013GA
(IC801) used in this set requires a special tool. Therefore, they
cannot be replaced.
tape
S801
MAIN board
upper panel assy
To Next Page
