Sony MZ-R91 User Manual

– 56 –
165
166
177
167
168
169
167
170
153
171
172
173
154
159
M602
152
153
175
M601
151
176
M603
152
155
154
156
157
158
162
152
163
154
164
154
174
160
161
R91

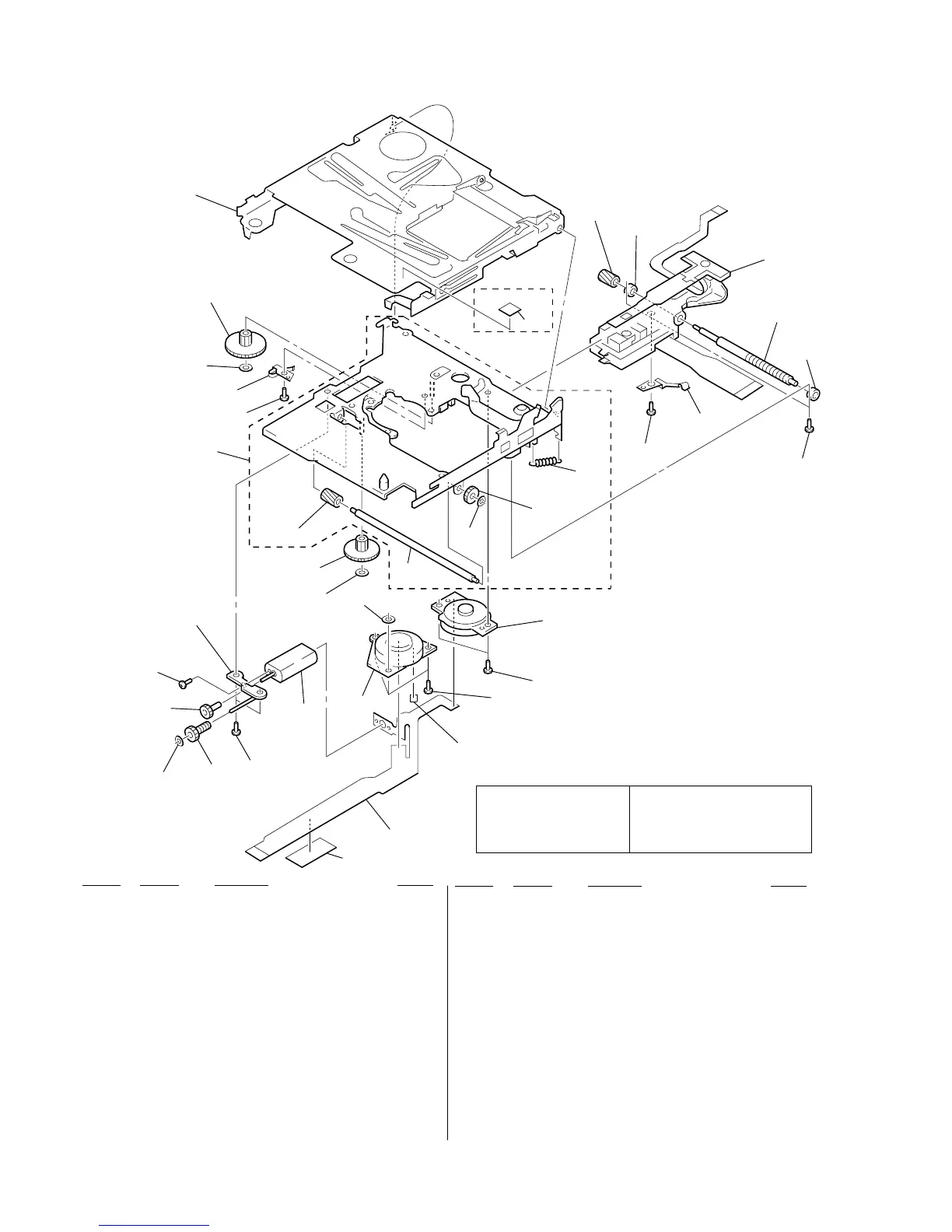

(4) MD-MECHANISM DECK SECTION
(MT-MZR90-165)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 1-675-466-11 MOTOR FLEXIBLE BOARD
152 4-963-883-42 SCREW (M1.4), PRECISION PAN
153 4-963-883-31 SCREW (M1.4), PRECISION PAN
154 3-338-645-31 WASHER (0.8-2.5)
155 4-222-214-11 GEAR (HB)
156 4-222-217-01 GEAR (HA)
157 4-224-885-01 SCREW (M1.2X1.5)
158 X-4951-918-1 CHASSIS ASSY, GEAR
159 4-222-223-01 SHAFT, SUB
160 4-222-215-01 GEAR (HC)
161 4-222-218-01 GEAR (HD)
162 X-4951-920-1 CHASSIS ASSY
163 4-222-206-01 SPRING, THRUST
164 4-222-216-01 GEAR (SA)
165 X-4951-919-1 HOLDER ASSY
166 4-222-208-01 GEAR (SB)
167 4-222-204-01 BEARING
0 168 X-4952-386-1 SERVICE ASSY, OP
169 4-222-203-01 SCREW, LEAD
170 3-349-825-21 SCREW
171 4-222-205-01 SPRING, RACK
172 4-222-222-01 GEAR (RACK)
173 4-222-226-01 SPRING (EJECT), TENSION
174 4-997-677-11 WASHER
175 3-043-428-01 SHEET (CLV)
176 3-222-363-01 SPACER (FLEXIBLE)
M601 8-835-666-01 MOTOR, DC SSM-01C14A (SPINDLE)
(WITH TURN TABLE)
M602 1-763-399-11 MOTOR, DC (SLED) (WITH GEAR)
M603 1-763-400-11 MOTOR, DC (OVER WRITE HEAD UP/DOWN)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
