Sony NW-E403 - 5 Exploded Views; Overall-1

24
NW-E403/E405/E407
8 2-595-365-04 BUTTON (VOL)
9 2-595-366-01 BUTTON (PS)
10 2-595-368-01 SPRING (SLIDE)
11 2-595-372-01 SPRING (SHUTTLE)
12 2-631-679-01 SHEET (FLEXIBLE)
13 2-595-373-02 ARM (SHUTTLE)
14 2-595-371-01 KNOB (SHUTTLE)
15 2-595-378-02 COVER (JACK)
16 2-595-377-01 BUTTON (TOP)
17 2-595-362-01 CABINET (BOTTOM)
- Continued on page 25 -
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
Ref. No. Part No. Description Remark
1 2-595-374-01 LID (CONNECTOR)
2 3-254-136-01 SCREW (B1.4)
3 2-595-376-01 CABINET (TOP)
4 2-595-375-01 CABINET (INNER) (RED)
4 2-595-375-11 CABINET (INNER) (BLUE)
4 2-595-375-21 CABINET (INNER) (BLACK)
4 2-595-375-31 CABINET (INNER) (GREEN)
5 2-632-857-01 SPACER (PWB)
6 2-631-678-01 SPACER (CABINET)
7 2-631-680-01 SHEET (CONNECTOR)

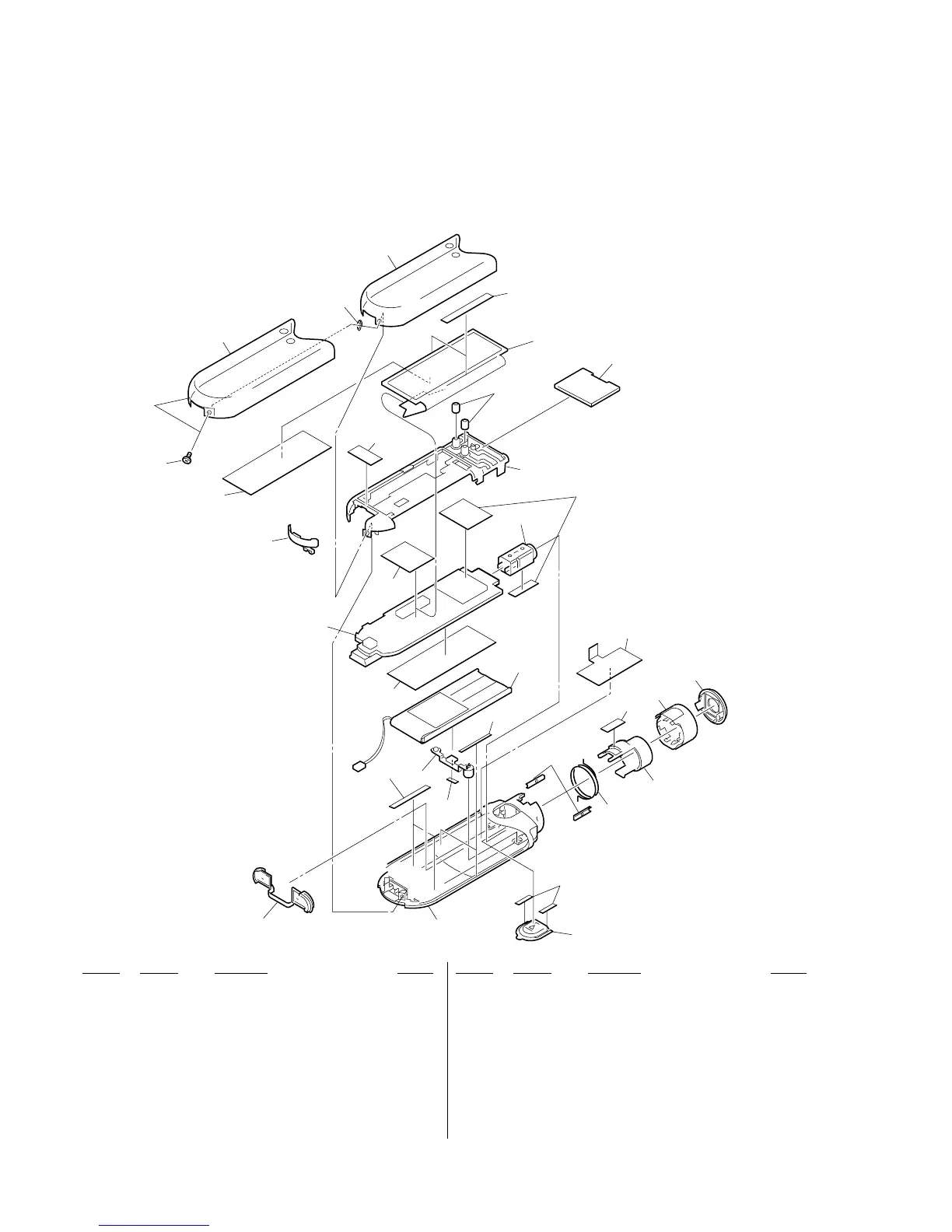

5-1. OVERALL-1
Ref. No. Part No. Description Remark
29
20
16
7
21
27
5
12
1
28
2
6
3
8
25
10
11
13
22
23
15
14
26
4
9
19
19
17
BT901
J301
LCD901
18
24
•Abbreviation
JE : Tourist model
CND : Canadian model
AUS: Australian model
KR : Korean model
Ver. 1.4
