NW-E403/E405/E407
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

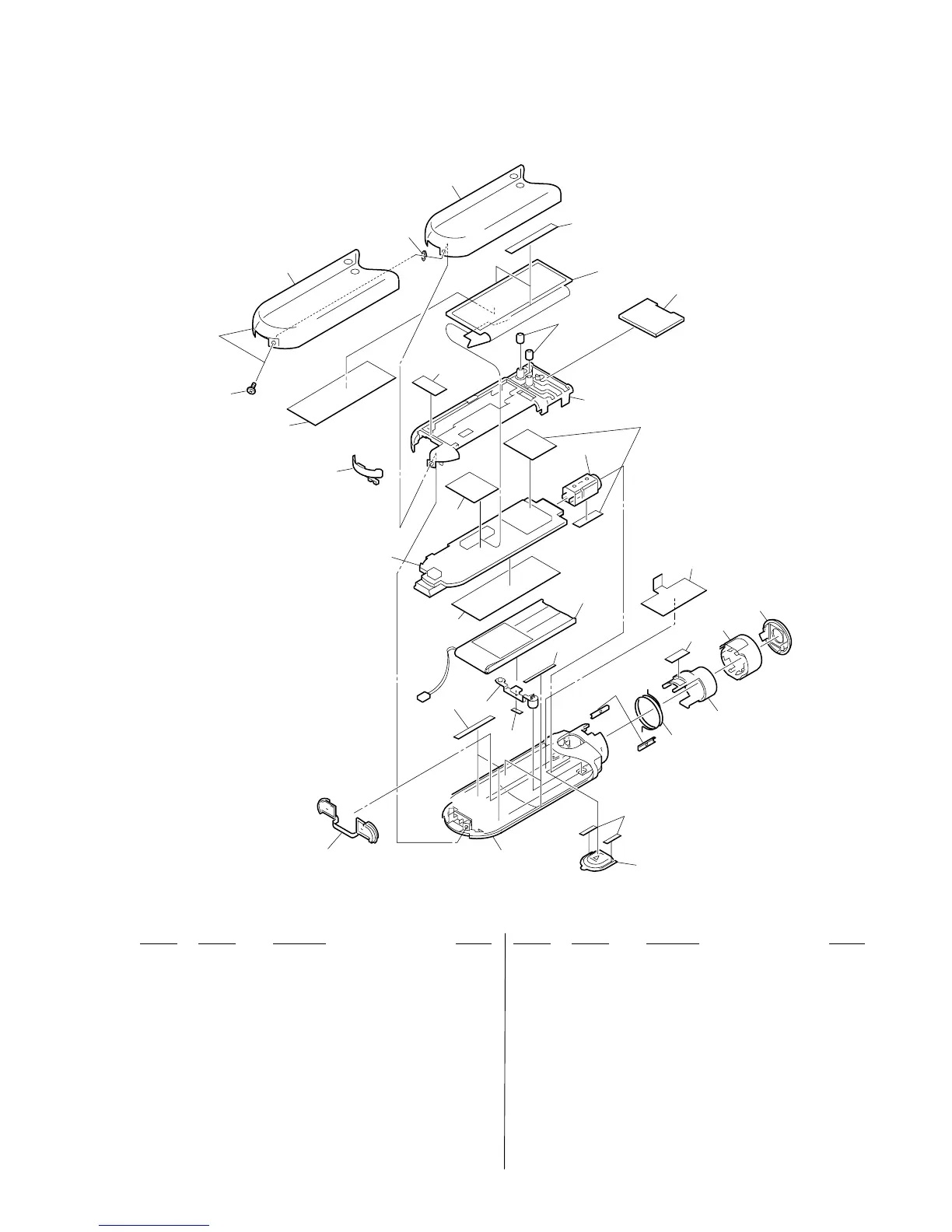

5-2. OVERALL-2
- Continued from page 24 -
18 2-595-363-01 SHEET (BATTERY), ADHESIVE
19 2-595-367-01 SHEET (BUTTON PS), ADHESIVE
20 A-1114-321-A SW BOARD, COMPLETE
21 X-2059-981-1 MAIN BOARD, COMPLETE (E403:AEP)
21 X-2059-982-1 MAIN BOARD, COMPLETE
(E403:US,CND,KR,JE)
21 X-2059-984-1 MAIN BOARD, COMPLETE (E405:AEP)
21 X-2059-985-1 MAIN BOARD, COMPLETE
(E405:US,CND,KR,AUS,JE)
21 X-2059-987-1 MAIN BOARD, COMPLETE (E407:AEP)
21 X-2059-988-1 MAIN BOARD, COMPLETE
(E407:US,CND,KR,AUS,JE)
22 2-634-130-01 SPACER (ARM SHUTTLE)
29
20
16
7
21
27
5
12
1
28
2
6
3
8
25
10
11
13
22
23
15
14
26
4
9
19
19
17
BT901
J301
LCD901
18
24
23 2-634-235-01 SHEET (SHIELD)
24 2-595-370-01 SHEET (CABINET), ADHESIVE
25 2-595-369-02 BUTTON (BOTTOM)
26 2-631-681-02 SPACER (BATTERY)
27 2-629-690-01 SPACER (SHIELD PLATE)
28 2-595-361-02 SHEET (PANEL), ADHESIVE
29 2-595-360-02 CHASSIS
BT901 X-2059-979-1 BATTERY, LITHIUM (ION) STORAGE (US,CND)
BT901 1-756-568-11 BATTERY, LITHIUM (ION) STORAGE
(EXCEPT US,CND)
J301 1-819-348-11 JACK (i)
LCD901 1-805-849-11 INDICATOR MODULE, ORGANIC EL
