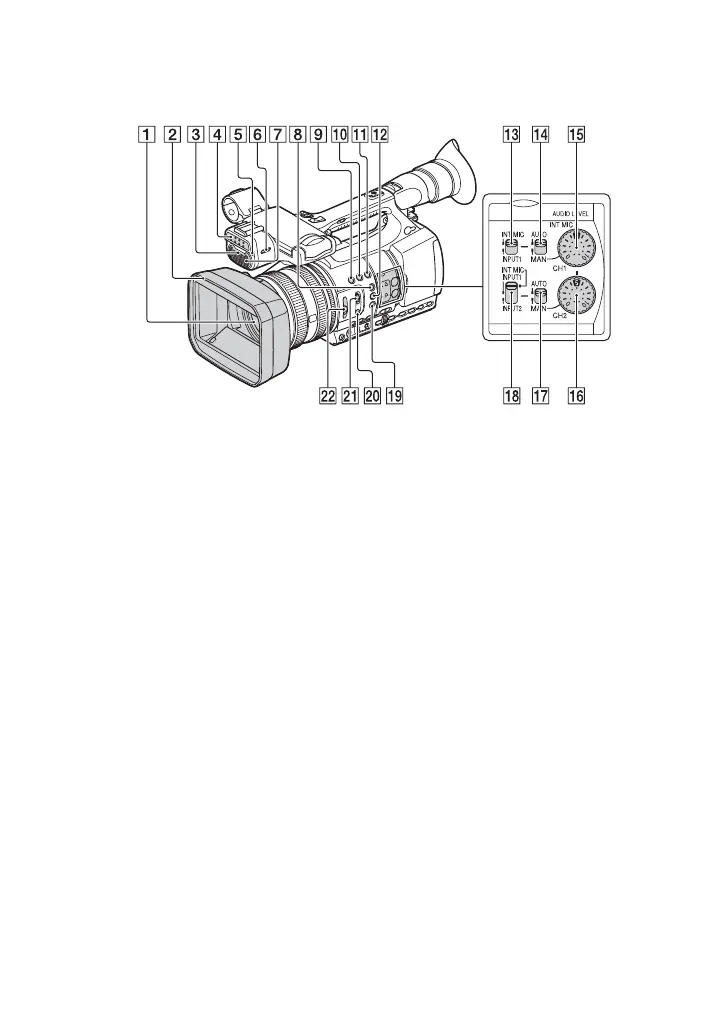

A Lens (21)
B Lens hood with lens cover (21)
C Front recording lamp (100)
The recording lamp flashes if the remaining
capacity of recording media or battery is low.
D Video light (45)
E Remote sensor (100)
F Video light switch (45)
G Built-in microphone
H ASSIGN 1/PEAKING button (62)
I ASSIGN 3/IRIS PUSH AUTO button
(38)
J ASSIGN 4/LAST SCENE button* (62)
K ASSIGN 5/ZEBRA button (62)
L ASSIGN 2/HISTOGRAM button (62)
M CH1 (INT MIC/INPUT 1) switch (43)
N AUTO/MAN (CH1) switch (43)
O AUDIO LEVEL (CH1) dial (43)
P AUDIO LEVEL (CH2) dial (43)
Q AUTO/MAN (CH2) switch (43)
R CH2 (INT MIC/INPUT 1/INPUT 2)
switch (43)
S S&Q button (60)
T PUSH AUTO/FOCUS HOLD button
(32)
U FOCUS switch (32)
V ND FILTER switch (40)
* ASSIGN 4/LAST SCENE button and ASSIGN
2/HISTOGRAM button have raised tactile dots
for your convenience in locating the buttons.
