PRS-950
4
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

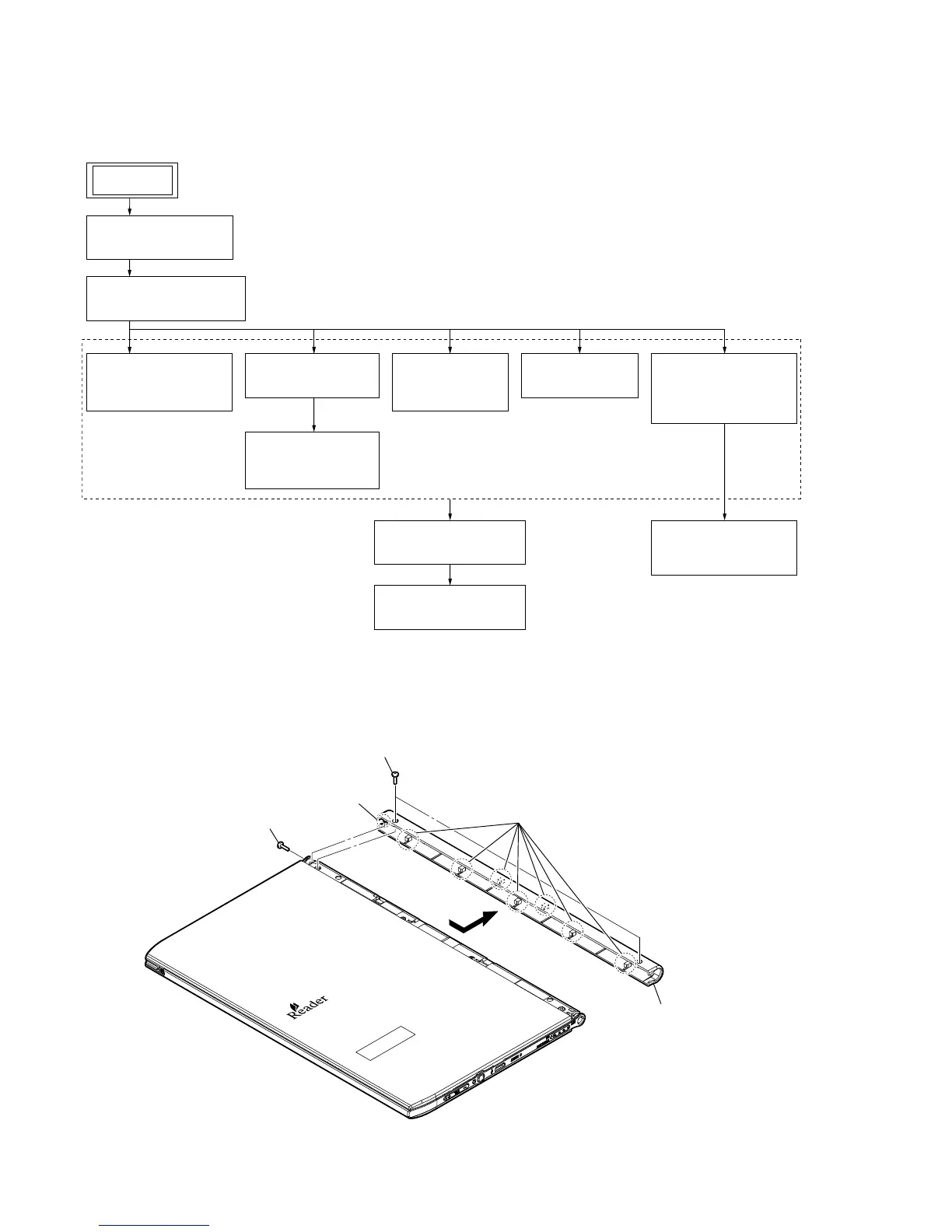

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. COVER ANTENNA
2-4. BATTERY BLOCK
ASSY (BAT1)
(Page 5)
2-5. HP BOARD
(Page 6)
2-6. ORNAMENT (B)
(ASSY)
(Page 6)
2-7. ORNAMENT
(T) ASSY
(Page 7)
2-9. CARD ASSY
(FOX MINIATURE)
(WW1)
(Page 8)
2-8. LED BOARD
(Page 7)
2-10. WWAN ANTENNA
(ANT1)
(Page 8)
2-3. PANEL REAR BLOCK
(Page 5)
2-11. MAIN BOARD
(Page 9)
2-12. MAIN BLOCK ASSY
(Page 10)
SET
2-2. COVER ANTENNA
(Page 4)
Note 1: Please detach STYLUS, SIM CARD SLOT LID and two DUMMY CARDS beforehand.
Note 2: Please take care not to lose STYLUS, SIM CARD SLOT LID and two DUMMY CARDS.
Note 3: If all items in the dotted line are not removed, the
work doesn't advance to "2-11. MAIN BOARD".
2 two tapping screws
5 seven claws
3 claw
6 cover antenna
4
– Rear side view (bottom side) –
1 tapping screw
(P2)
To Next Page
