PS-2700

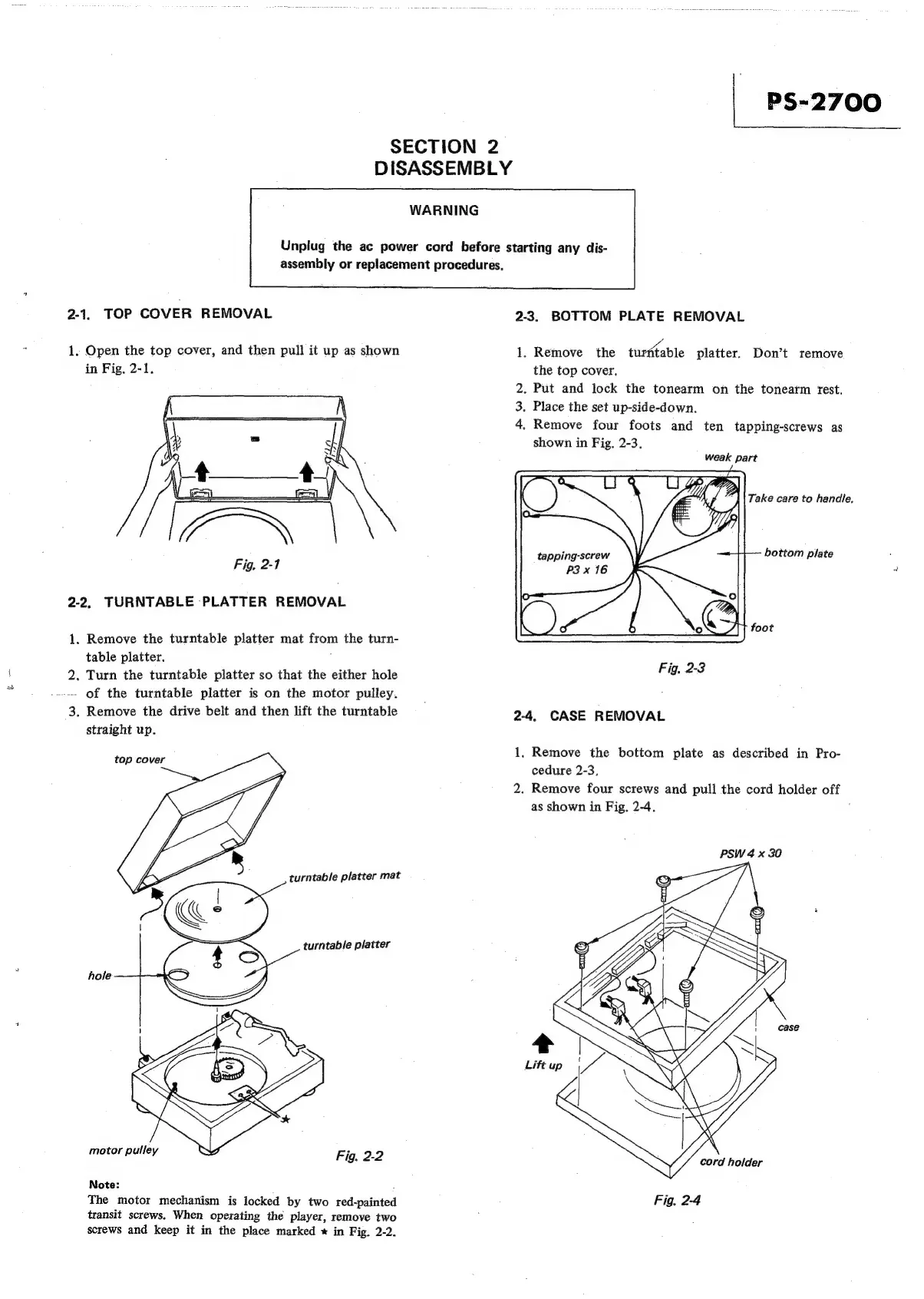

SECTION 2
DISASSEMBLY
WARNING
Unplug the ac power cord before starting any dis-
assembly or replacement procedures.
2-1. TOP COVER REMOVAL 2-3. BOTTOM PLATE REMOVAL
1. Open the top cover, and then pull it up as shown 1. Remove the turrtable platter. Don’t remove
in Fig, 2-1. the top cover.
2. Put and lock the tonearm on the tonearm rest.
3. Place the set up-side-down.
4. Remove four foots and ten tapping-screws as
shown in Fig, 2-3.
oN
tapping-screw
P3 x 16
weak part
“|| Take care to handle.
bottom plate
Fig. 2-1
2-2, TURNTABLE PLATTER REMOVAL
1. Remove the turntable platter mat from the turn-
table platter.
2. Turn the turntable platter so that the either hole Fig. 23
--- Of the turntable platter is on the motor pulley.
3. Remove the drive belt and then lift the turntable 2-4. CASE REMOVAL
straight up.
1, Remove the bottom plate as described in Pro-
top cover
cedure 2-3,
2. Remove four screws and pull the cord holder off
as shown in Fig. 2-4. ‘
» PSW 4 x 30
turntable
platter
mat
turntable platter
hole
ae
Xx
ator pulle .
m
pulley
Fig.
2-2
Ye
holder
Note: ‘
The
motor
mechanism
is
locked
by
two
red-painted
Fig.
2-4
transit
screws.
When
operating
the
player,
remove
two
screws
and
keep
it
in
the
place
marked
*
in
Fig.
2-2.
