Sony PS-2700 - Main Gear Removal; Shaft Removal

PS-2700

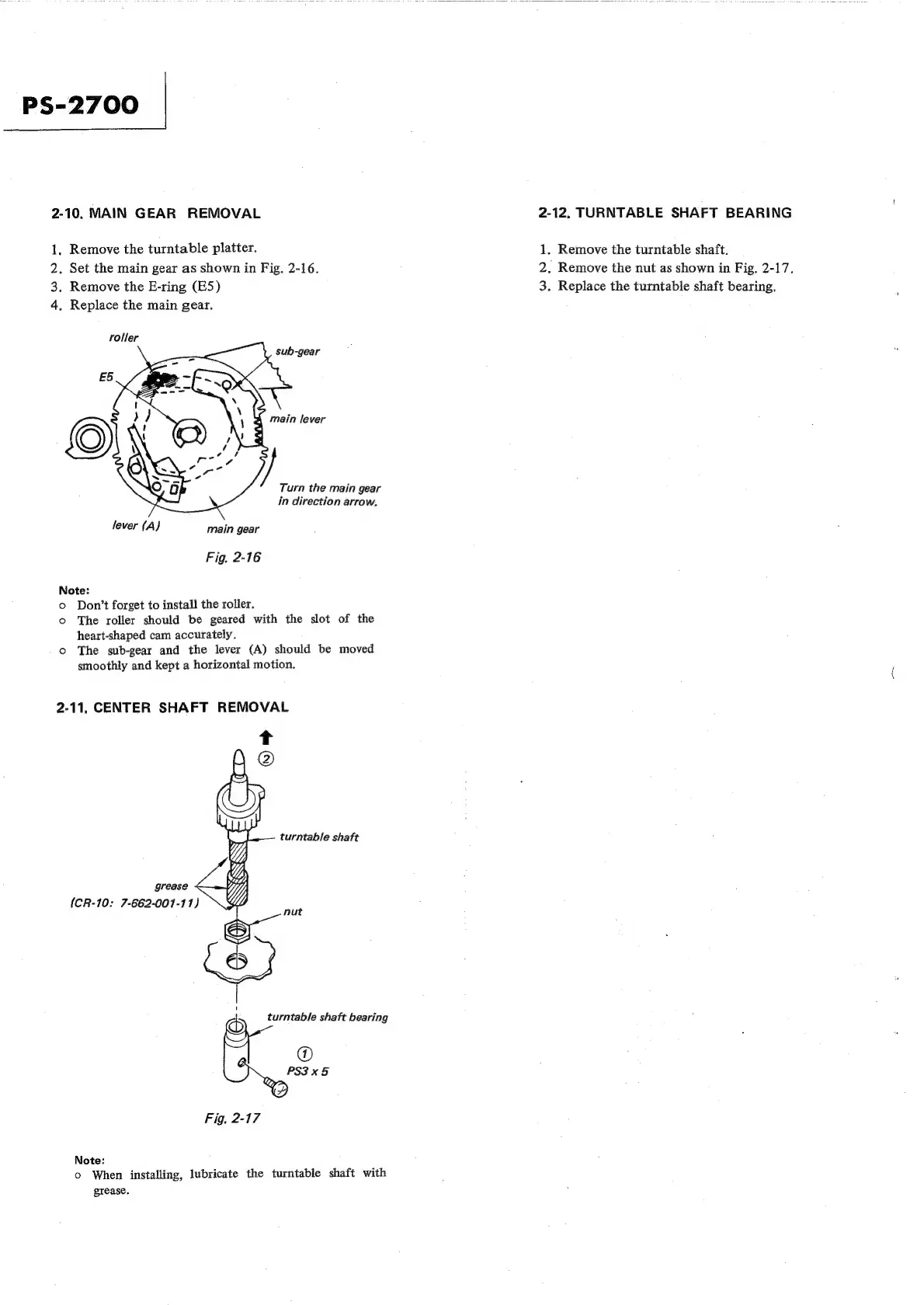

2-10. MAIN GEAR REMOVAL 2-12, TURNTABLE SHAFT BEARING
1, Remove the turntable platter. 1. Remove the turntable shaft.
2. Set the main gear as shown in Fig. 2-16. 2. Remove the nut as shown in Fig. 2-17.
3, Remove the E-ring (E5) 3. Replace the turntable shaft bearing.
4, Replace the main gear.
rotler
sub-gear
4 main lever
Turn the main gear
in direction arrow.
lever (AJ main gear
Fig. 2-16
Note:
o Don’t forget to install the roller.
© The roller should be geared with the slot of the
heart-shaped cam accurately.
o The sub-gear and the lever (A) should be moved
smoothly and kept a horizontal motion.
2-11. CENTER SHAFT REMOVAL
turntable shaft
grease
(CR-10: 7-662-001-11)
nut
é
|
a turntable shaft bearing
ce x5
Fig, 2-17
Note:
o
When
installing,
lubricate
the
turntable
shaft
with
grease.
