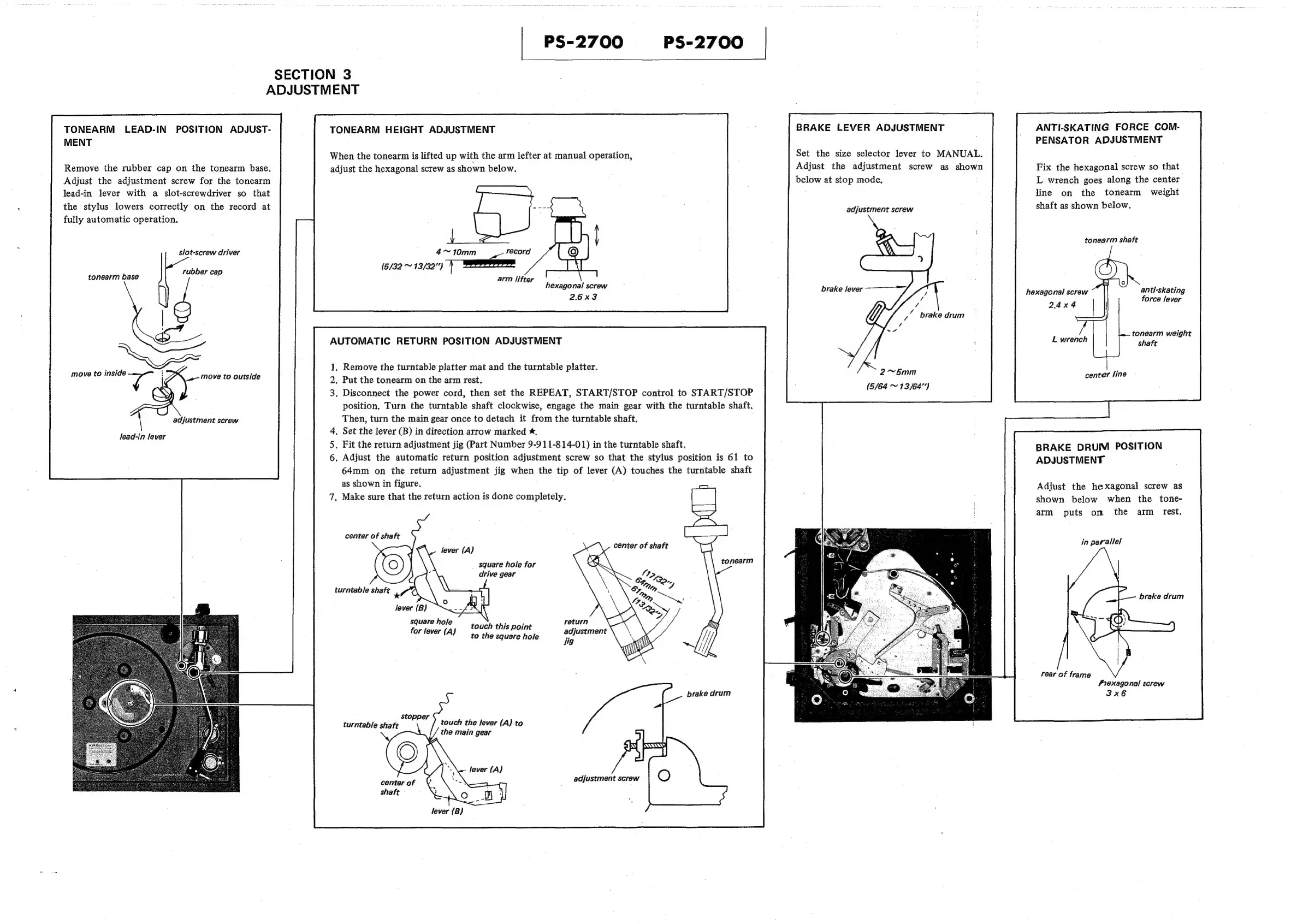

SECTION 3
ADJUSTMENT
TONEARM LEAD-IN POSITION ADJUST-
MENT
Remove the rubber cap on the tonearm base.
Adjust the adjustment screw for the tonearm
lead-in lever with a slot-screwdriver so that
the stylus lowers correctly on the record at
fully automatic operation,
slot-screw driver
rubber cap
tonearm base
move
to
inside
a
!
move
to
outside
adjustment screw
lead-in lever
TONEARM HEIGHT ADJUSTMENT
When the tonearm is lifted up with the arm lefter at manual operation,
adjust the hexagonal screw as shown below.
4~10mm es record
(5/32 ~ 13/32”)
arm lifter
AUTOMATIC RETURN POSITION ADJUSTMENT
. Remove the turntable platter mat and the turntable platter.
. Put the tonearm on the arm rest.
. Disconnect the power cord, then set the REPEAT, START/STOP control to START/STOP
position, Turn the turntable shaft clockwise, engage the main gear with the turntable shaft.
Then, turn the main gear once to detach it from the turntable shaft.
4, Set the lever (B) in direction arrow marked *,
. Fit the return adjustment jig (Part Number 9-911-814-01) in the turntable shaft.
. Adjust the automatic return position adjustment screw so that the stylus position is 61 to
64mm on the return adjustment jig when the tip of lever (A) touches the turntable shaft
as shown in figure.
. Make sure that the return action is done completely.
center of shaft
lever (A)
square hole for
drive gear
square hole
for
lever
(A)
COUGH
this
point
to the square hole
sto,
a touch the lever (A) to
turntable shaft .
the main gear
center of
shaft
lever (B)
ANTI-SKATING FORCE COM-
PENSATOR ADJUSTMENT
BRAKE LEVER ADJUSTMENT
Set the size selector lever to MANUAL.
Adjust the adjustment screw as shown
below at stop mode,
Fix the hexagonal screw so that
L wrench goes along the center
line on the tonearm weight
adjustment
screw
shaft
as
shown
below.
tonearm shaft
hexagonal screw
anti-skating
2.6x3
hexagonal screw
force lever
2.4x4
tonearm weight
L wrench shaft
2~5mm
(5/64 ~ 13/64”)
center line
BRAKE DRUM POSITION
ADJUSTMENT
Adjust the hexagonal screw as
shown below when the tone-
arm puts on the arm rest.
in parallel
nearm
return
adjustment
Jig
rear of frame
Fiexagonal screw
brake drum 3x6
adjustment screw
