PS-LX430/430€/431/431N/433

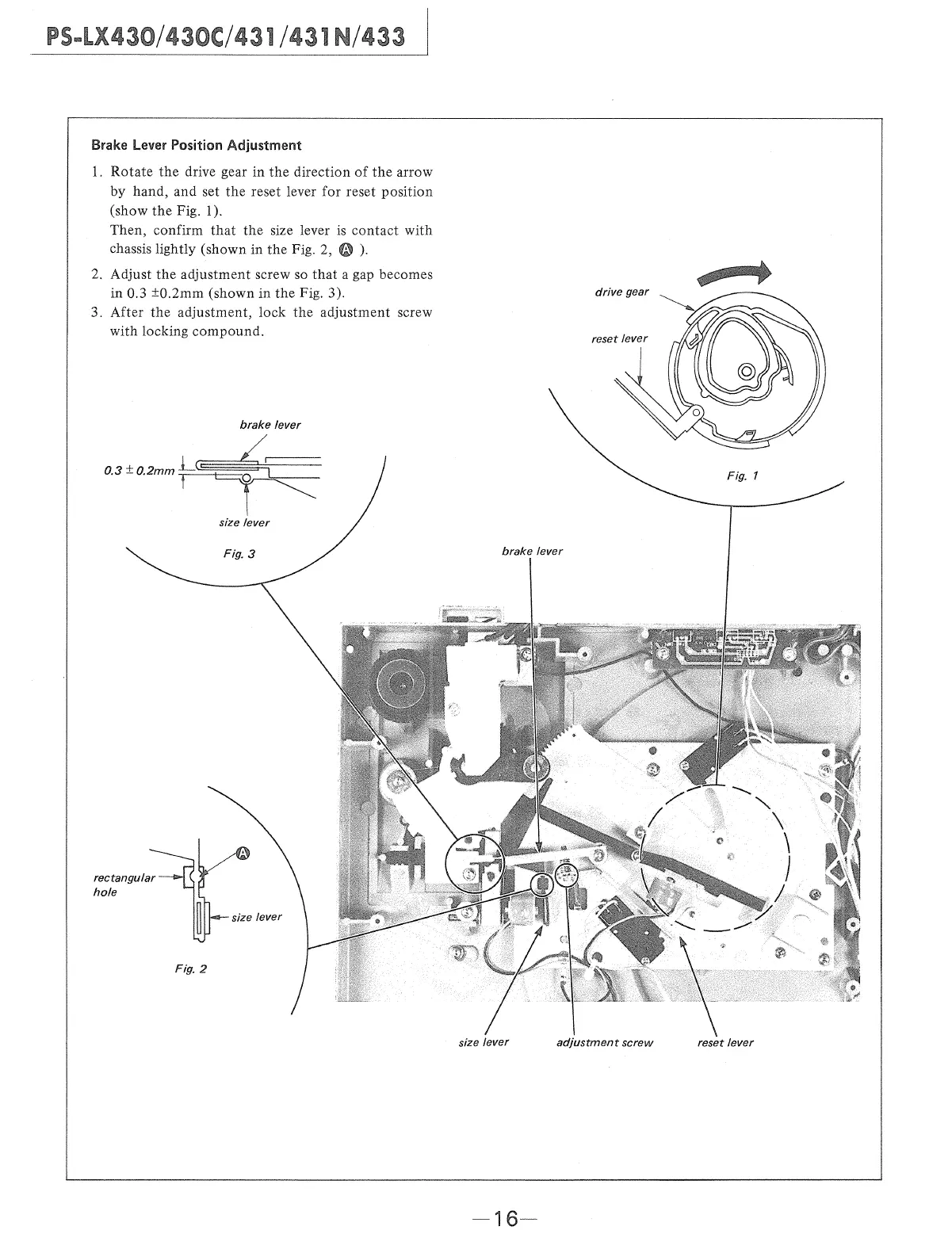

Brake Lever Position Adjustment
1. Rotate the drive gear in the direction of the arrow
by hand, and set the reset lever for reset position
(show the Fig. 1).
Then, confirm that the size lever is contact with
chassis lightly (shown in the Fig. 2, ® ).
2. Adjust the adjustment screw so that a gap becomes
in 0.3 0.2mm (shown in the Fig. 3). drive gear
3. After the adjustment, lock the adjustment screw
with locking compound. reset lever
brake lever
0.3£0.2mm 4
size lever
brake lever
Fig. 3
rectangular
hole
size lever
size lever adjustment screw reset lever
