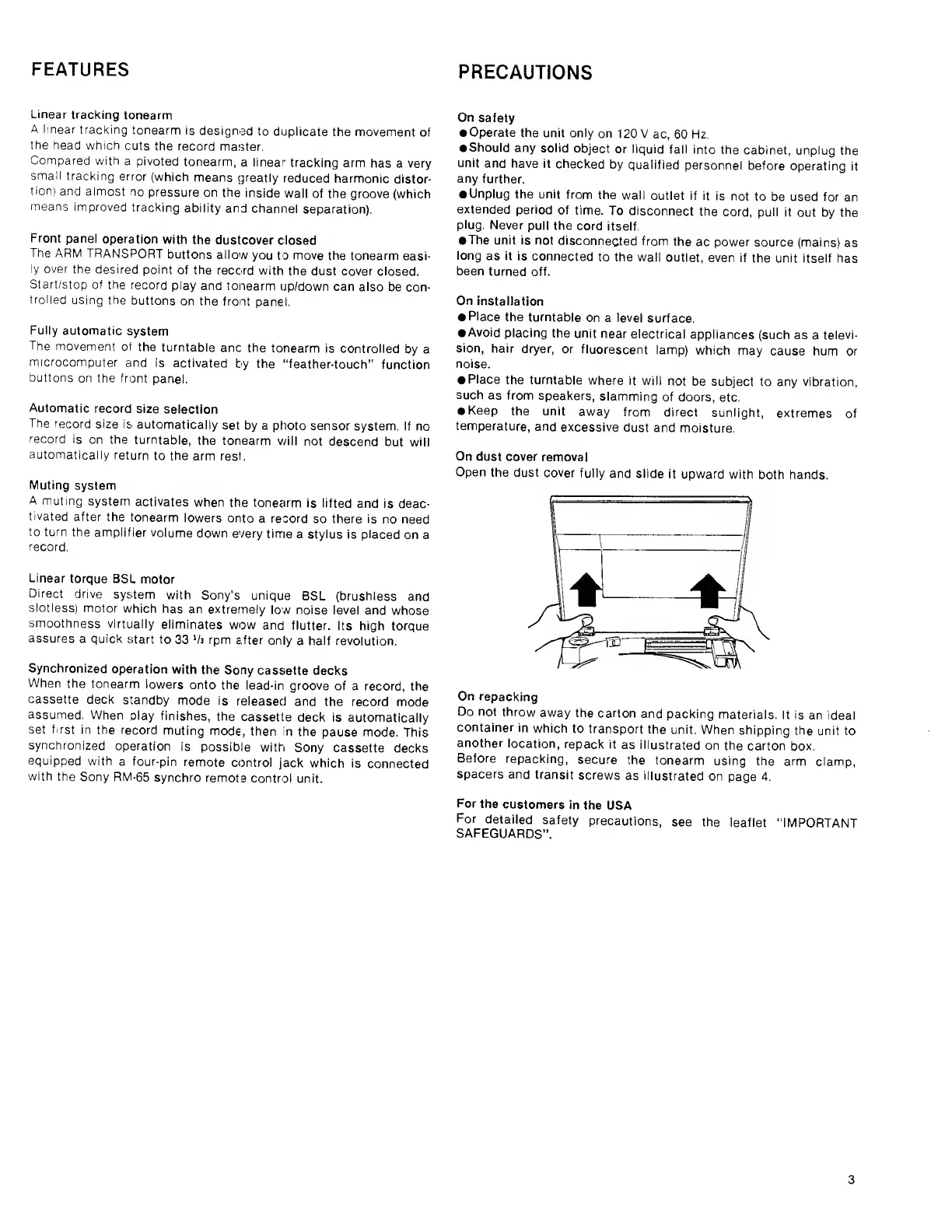

FEATURES
PRECAUTIONS
Linear tracking tonearm
A linear tracking tonearm is designed to duplicate the movement of
the head which cuts the record master.
Compared with a pivoted tonearm, a linear tracking arm has a very
small tracking error (which means greatly reduced harmonic distor¬
tion) and almost no pressure on the inside wall of the groove (which
means improved tracking ability and channel separation).
Front panel operation with the dustcover closed
The ARM TRANSPORT buttons allow you to move the tonearm easi-
y over the desired point of the record with the dust cover closed.
Start/stop of the record play and tonearm up/down can also be con¬
trolled using the buttons on the front panel.
Fully automatic system
The movement of the turntable anc the tonearm is controlled by a
microcomputer and is activated by the "feather-touch'' function
buttons on the front panel.
Automatic record size selection
The record size is automatically set by a photo sensor system. If no
record is on the turntable, the tonearm v/ill not descend but will
automatically return to the arm rest.
Muting system
A muting system activates when the tonearm is lifted and is deac¬
tivated after the tonearm lowers onto a record so there is no need
to turn the amplifier volume down every time a stylus is placed on a
record.
Linear torque BSL motor
Direct drive system with Sony’s unique BSL (brushless and
slotless) motor which has an extremely low noise level and whose
smoothness virtually eliminates wow and flutter. Its high torque
assures a quick start to 33 ‘A rpm after only a half revolution.
Synchronized operation with the Sony cassette decks
When the tonearm lowers onto the lead-in groove of a record, the
cassette deck standby mode is released and the record mode
assumed. When play finishes, the cassette deck is automatically
set first in the record muting mode, then in the pause mode. This
synchronized operation is possible with Sony cassette decks
equipped with a four-pin remote control jack which is connected
with the Sony RM-65 synchro remote control unit.
On safety
• Operate the unit only on 120 V ac, 60 Hz.
• Should any solid object or liquid fall into the cabinet, unplug the
unit and have it checked by qualified personnel before operating it
any further.
• Unplug the unit from the wall outlet if it is not to be used for an
extended period of time. To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The unit is not disconnected from the ac power source (mains) as
long as it is connected to the wall outlet, even if the unit itself has
been turned off.
On installation
• Place the turntable on a level surface.
• Avoid placing the unit near electrical appliances (such as a televi¬
sion, hair dryer, or fluorescent lamp) which may cause hum or
noise.
• Place the turntable where it will not be subject to any vibration,
such as from speakers, slamming of doors, etc.
• Keep the unit away from direct sunlight, extremes of
temperature, and excessive dust and moisture.
On dust cover removal
Open the dust cover fully and slide it upward with both hands.
On repacking
Do not throw away the carton and packing materials. It is an ideal
container in which to transport the unit. When shipping the unit to
another location, repack it as illustrated on the carton box.
Before repacking, secure the tonearm using the arm clamp,
spacers and transit screws as illustrated on page 4.
For the customers in the USA
For detailed safety precautions, see the leaflet “IMPORTANT
SAFEGUARDS".
3
