RCC1000
user manual | 5

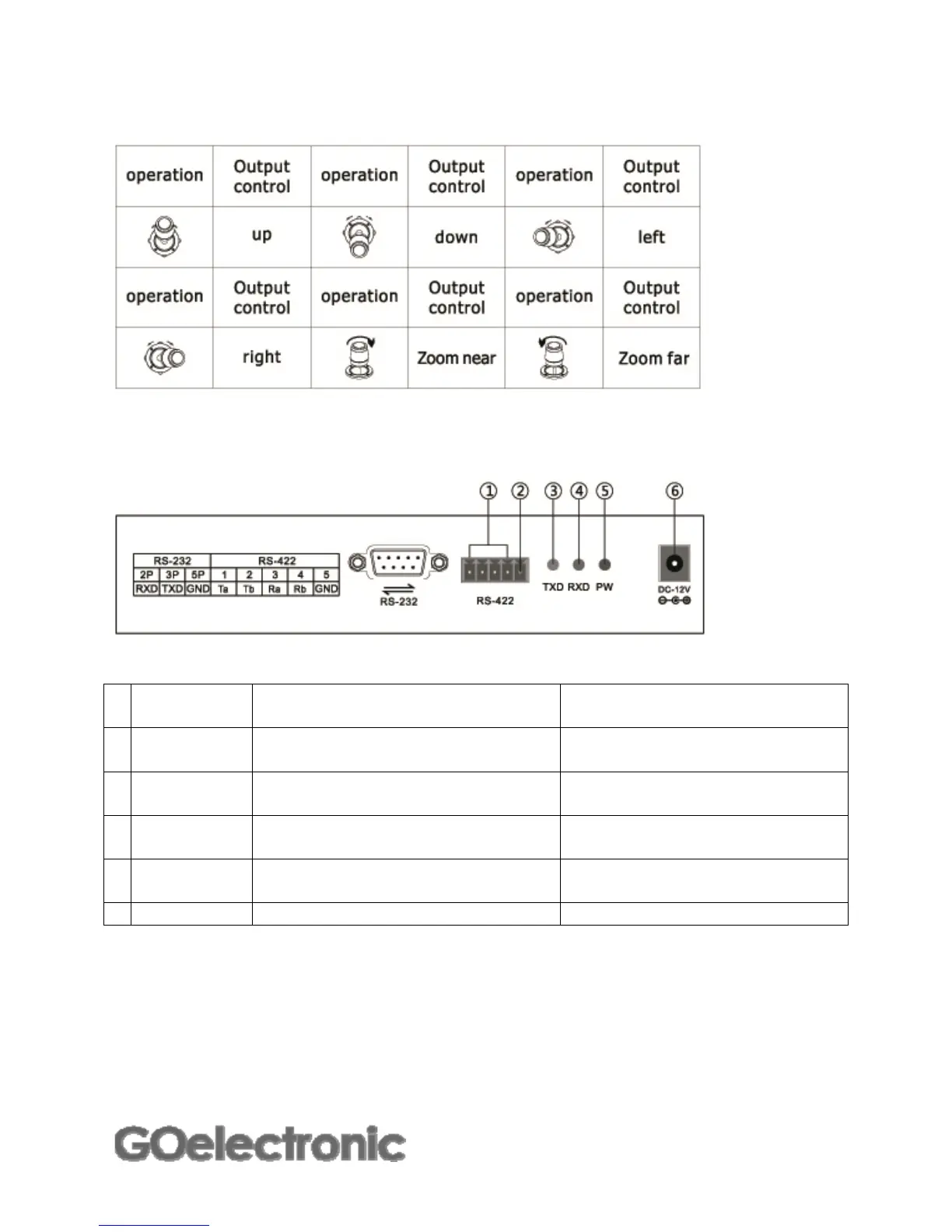

Joystick
Rear panel
1 RS-422 Control command output terminal:
connector 1-4
Connect to RS422 terminal of
video conference camera
2 Ground Control line ground terminal Connect to ground RS422
terminal of camera
3 TXD Send command indicator Flickering green light indicates
unit is sending commands
4 RXD Receive command indicator Flickering green light indicates
unit is receiving commands
5 PW Power input indicator Continuous red light indicates
unit is powered on
6 DC-12V Power input port DC 12V input port
