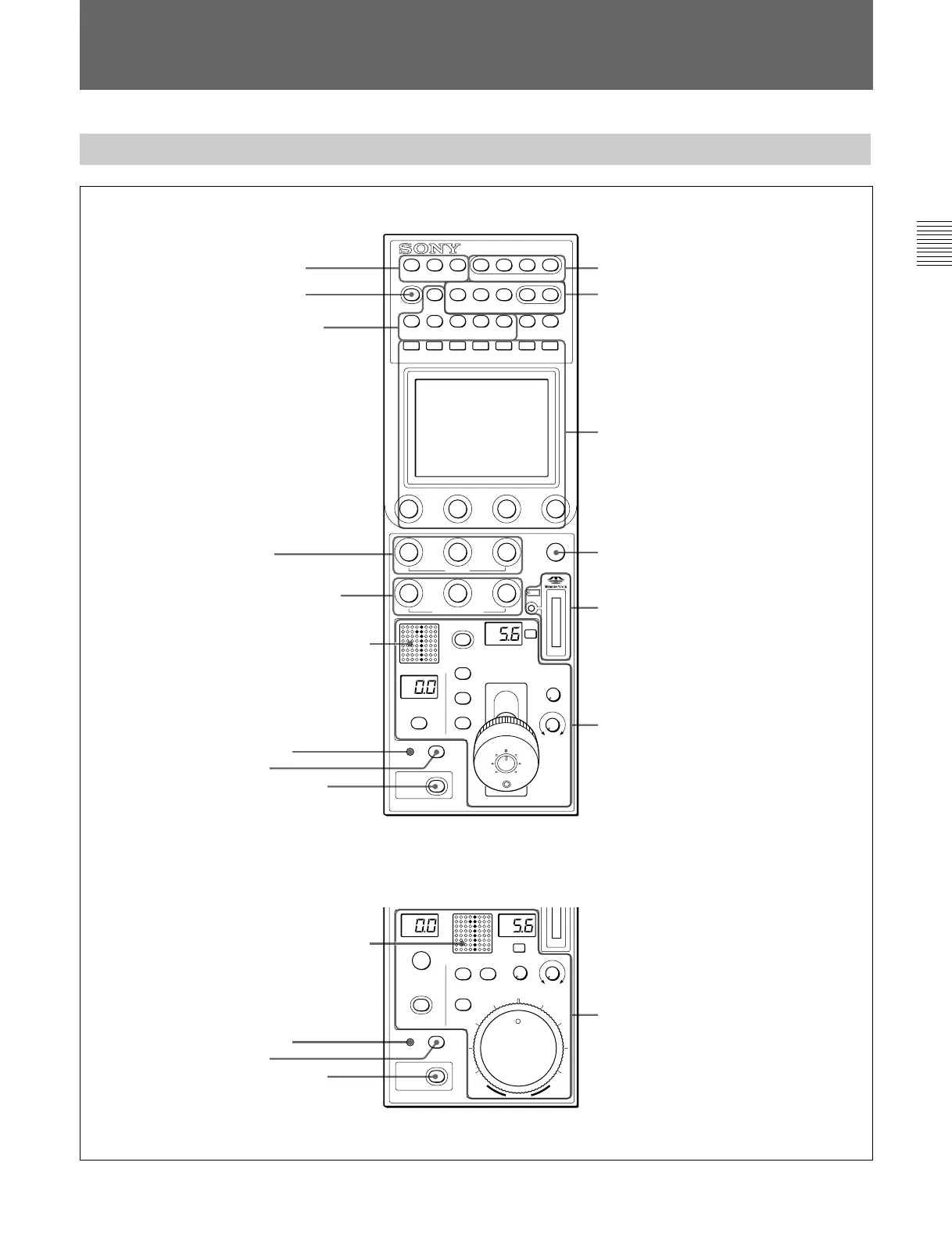

Operation Panel
Locations and Functions of Parts
IRIS/MB
ACTIVE
AUTO
RELATIVE
COARSE
SENS
OPENCLOSE
RELATIVE
MASTER
BLACK
EXT
IRIS
EXT
IRIS/MB
ACTIVE
AUTO
COARSE
SENS
OPEN
CLOSE
RELATIVE
MASTER
BLACK
IRIS
PARA
STANDARD
CHAR
ACTER
MASTER SLAVE
CAM PW
5600K
PAINT 1 PAINT 2
WHITE
ALARM CALL
REMOTE CONTROL PANEL
BLACK/FLARE a
PA INT 3 SCENE MAINTE
NANCE
FUNCTION
AUTO
KNEE
SKIN
DETAIL
DTL
GATE
BLACK
GAMMA
TEST BARS CLOSE
LEVEL
AUTO SETUP
DETAIL
PANEL
ACTIVE
SKIN DTL
AUTO HUE
START/
BREAK
WHITE BLACK
ALARM CALL
REMOTE CONTROL PANEL
BLACK/FLARE a
PANEL
ACTIVE
1 Control select block
2 STANDARD button
4 WHITE knobs
5 BLACK/FLARE knobs and
indicator
6 Camera number/tally indication
window
7 ALARM indicator
8 CALL button
9 PANEL ACTIVE button
qa AUTO SETUP block
qs Menu operation block
qd DETAIL knob
qf MEMORY STICK slot and
access lamp
Iris/master black control block
(page 9(E))
6 Camera number/tally indication
window
7 ALARM indicator
8 CALL button
9 PANEL ACTIVE button
Iris/master black control block
(page 10(E))
RCP-750
RCP-751
3 Camera/CCU function
ON/OFF buttons
0 Power and output signal select block
