8-1
SECTION 8
REPAIR PARTS LIST
NOTE:
• -XX, -X mean standardized parts, so they
may have some difference from the origi-
nal one.
• Items marked “*” are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
8-1. EXPLODED VIEWS
• Abbreviation
AUS : Australian/New Zealand Model
BR : Brazilian Model
E : Latin America Model
SP : Singapore Model
RUS : Russian Model
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
RDR-GX220/GX330

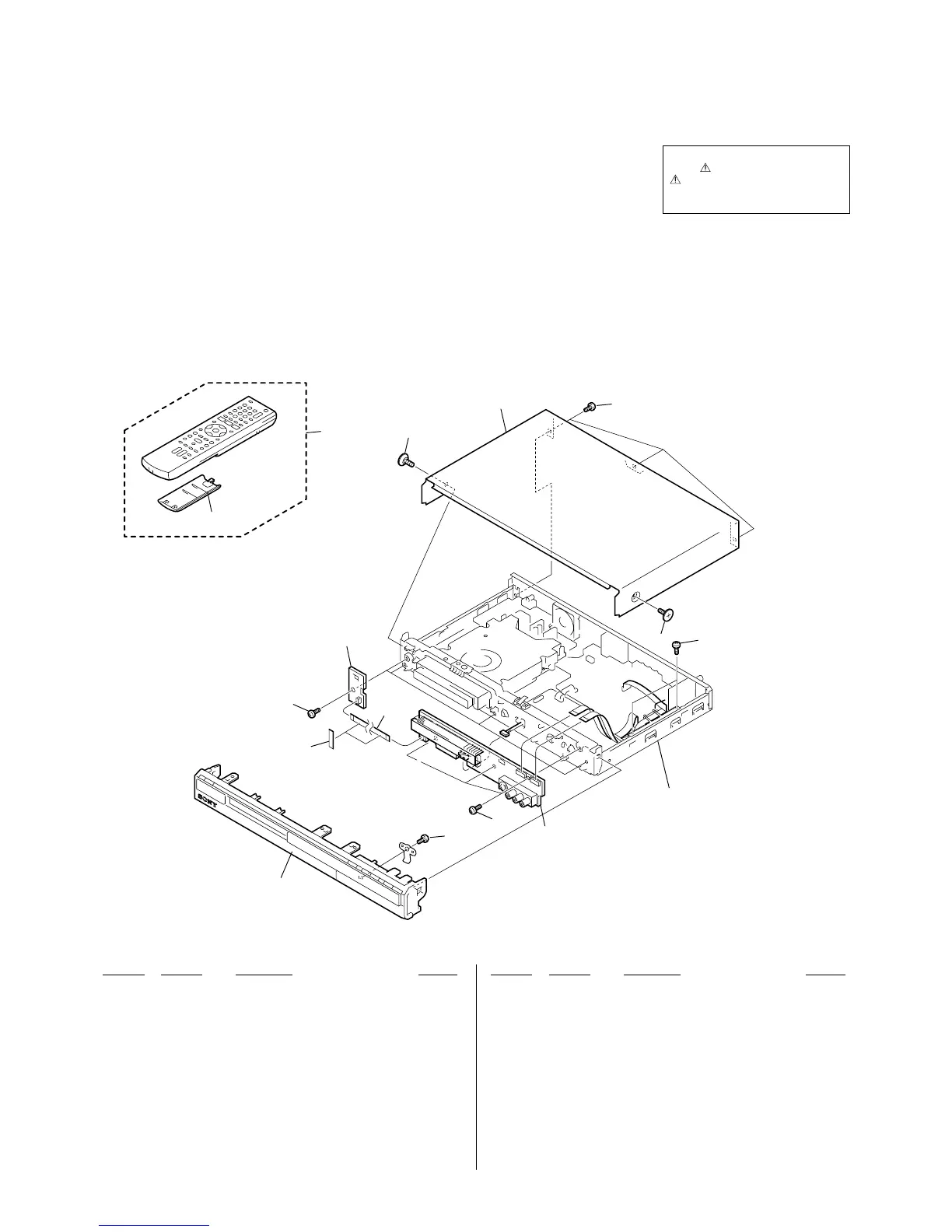

8-1-1. OVERALL SECTION
6
7
not
supplied
not
supplied
not
supplied
Chassis section
4
4
2
8
5
2
2
3
1
2
Ref. No. Part No. Description Remark
1 X-2109-539-1 PANEL ASSY, FRONT (GX220:RUS)
1 X-2109-538-1 PANEL ASSY, FRONT (GX220:AUS,SP)
1 X-2109-537-1 PANEL ASSY, FRONT (GX330:E)
1 A-1206-211-A PANEL ASSY, FRONT (GX330:BR)
2 3-077-331-01 +BV3 (3-CR)
* 3 1-831-508-11 CABLE, FLEXIBLE FLAT (FLR-006)
4 3-070-883-41 SCREW, TAPPING
5 A-1176-906-A CASE BLOCK ASSY (SERVICE USE)
6 1-479-551-11 REMOTE COMMANDER (RMT-D229A)
(GX330)
6 1-479-559-11 REMOTE COMMANDER (RMT-D229P)
(GX220)
Ref. No. Part No. Description Remark
7 2-658-476-01 COVER, BATTERY
8 7-685-533-14 SCREW +BTP 2.6X6 TYPE N-S
To Next Page
