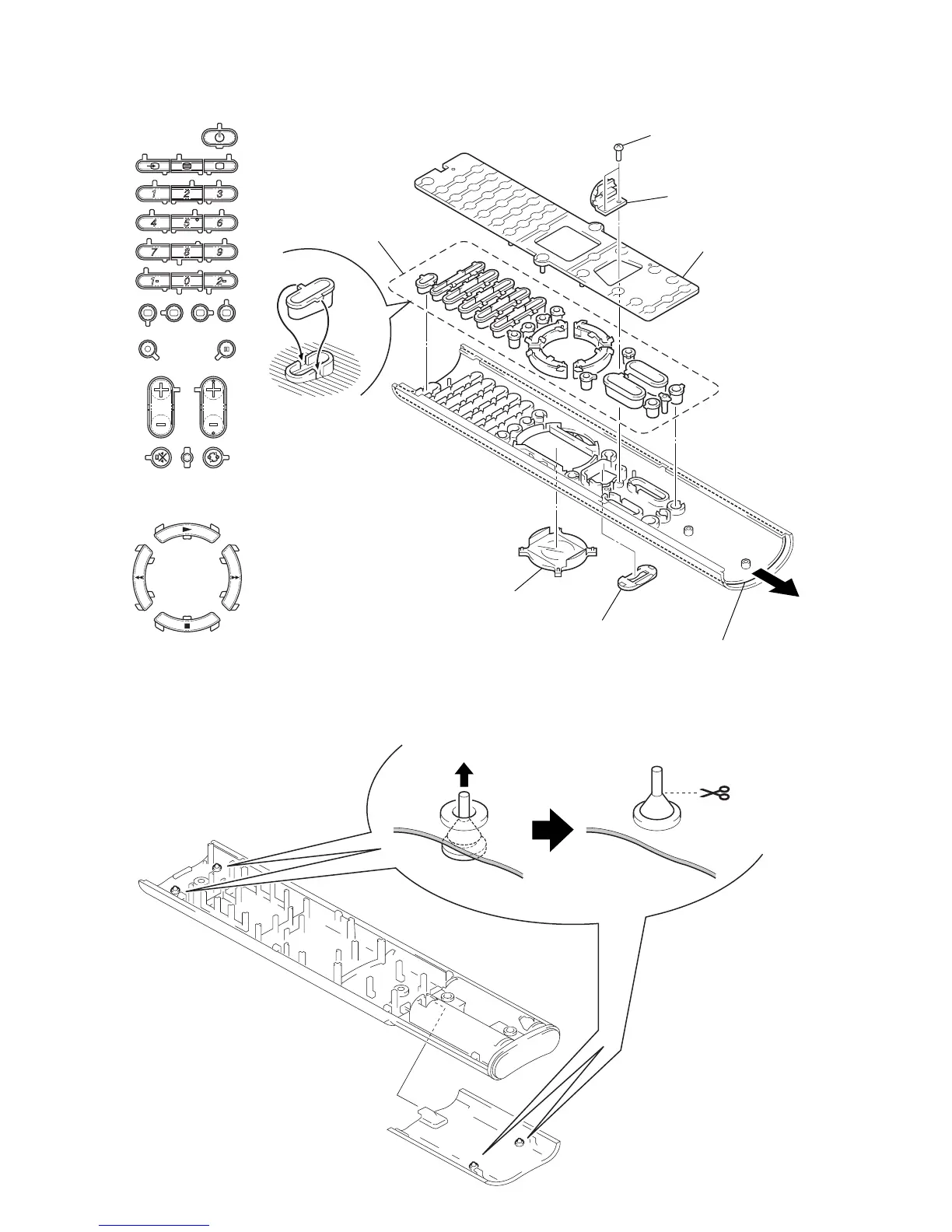

2-3. CASE, INNER
NOTE ON MOUNTING THE RUBBER FOOT
4 thirty-one
switches
Note on mounting the switches
1. Mount each switch, meeting its bosses
with respective guides.
2. Mount each switch to original position,
as its shape is different each other.
2 two screws
(P2 × 4)
3 jog board
1 key, rubber
5 cover, LCD
6 escutcheon, jog
7 Pull out the inner case.
1 Pull the knob
of rubber foot.
2 After mounting, cut off
the knob of rubber foot.
