– 36 –
SECTION 5

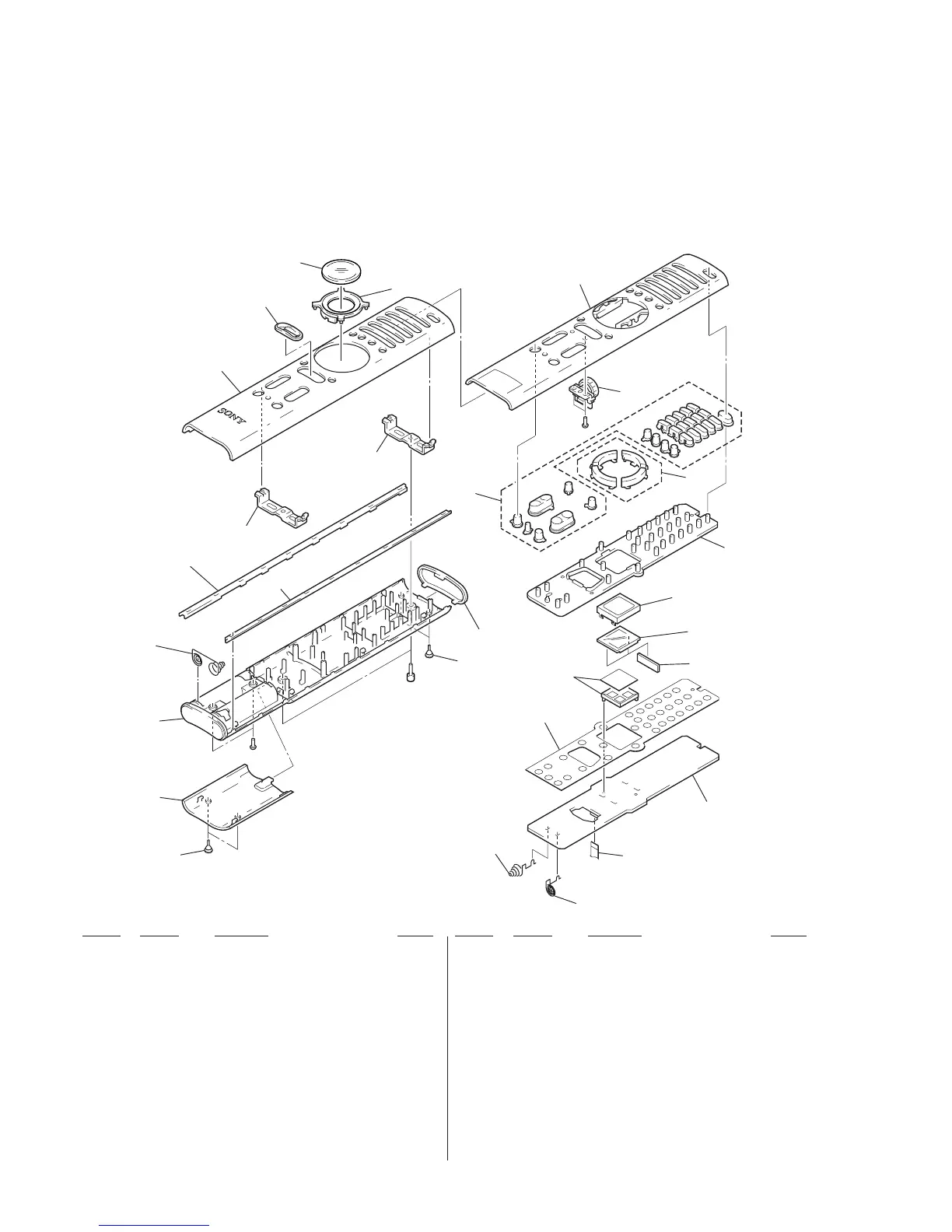

EXPLODED VIEW
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-220-687-01 FOOT, RUBBER
2 3-220-680-01 LID, BATTERY CASE
3 3-220-683-01 CASE (LOWER)
4 3-220-686-01 TERMINAL (C), BATTERY
* 5 3-220-677-01 EDGE, SIDE
6 3-220-679-01 BUTTON (B)
7 3-220-681-01 CASE (TOP)
* 8 3-220-672-01 ESCUTCHEON, JOG
9 3-220-691-01 PANEL, LCD
10 3-220-692-01 COVER, LCD
* 11 3-220-682-01 CASE, INNER
12 A-4541-208-A JOG BOARD, COMPLETE
* 13 3-220-675-01 KEY, RUBBER
14 3-220-689-01 TERMINAL, ZEBRA
* 15 1-679-852-11 REMOTE CONTROL BOARD
16 9-885-008-54 WIRE
17 3-220-684-01 TERMINAL (A), BATTERY
18 3-220-685-01 TERMINAL (B), BATTERY
19 3-220-676-01 FILTER
* 20 3-220-674-01 DOOM, POLY
21 3-220-678-01 BUTTON (A)
LCD1 9-885-008-47 DISPLAY PANEL, LIQUID CRYSTAL
#1 7-685-104-14 SCREW +P 2X6 TYPE2 NON-SLIT
#2 7-621-996-05 BOLT, HEXAGON SOCKET 2.6X5
#3 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
not
supplied
not
supplied
LCD1
#1
1
2
3
4
5
not
supplied
not
supplied
7
8
9
10
11
12
6
5
#2
#3
21
19
1
13
14
20
15
16
17
18
To Next Page
