1-23E
1-5. ASSEMBLY CAUTION
BDP-BX39/S390

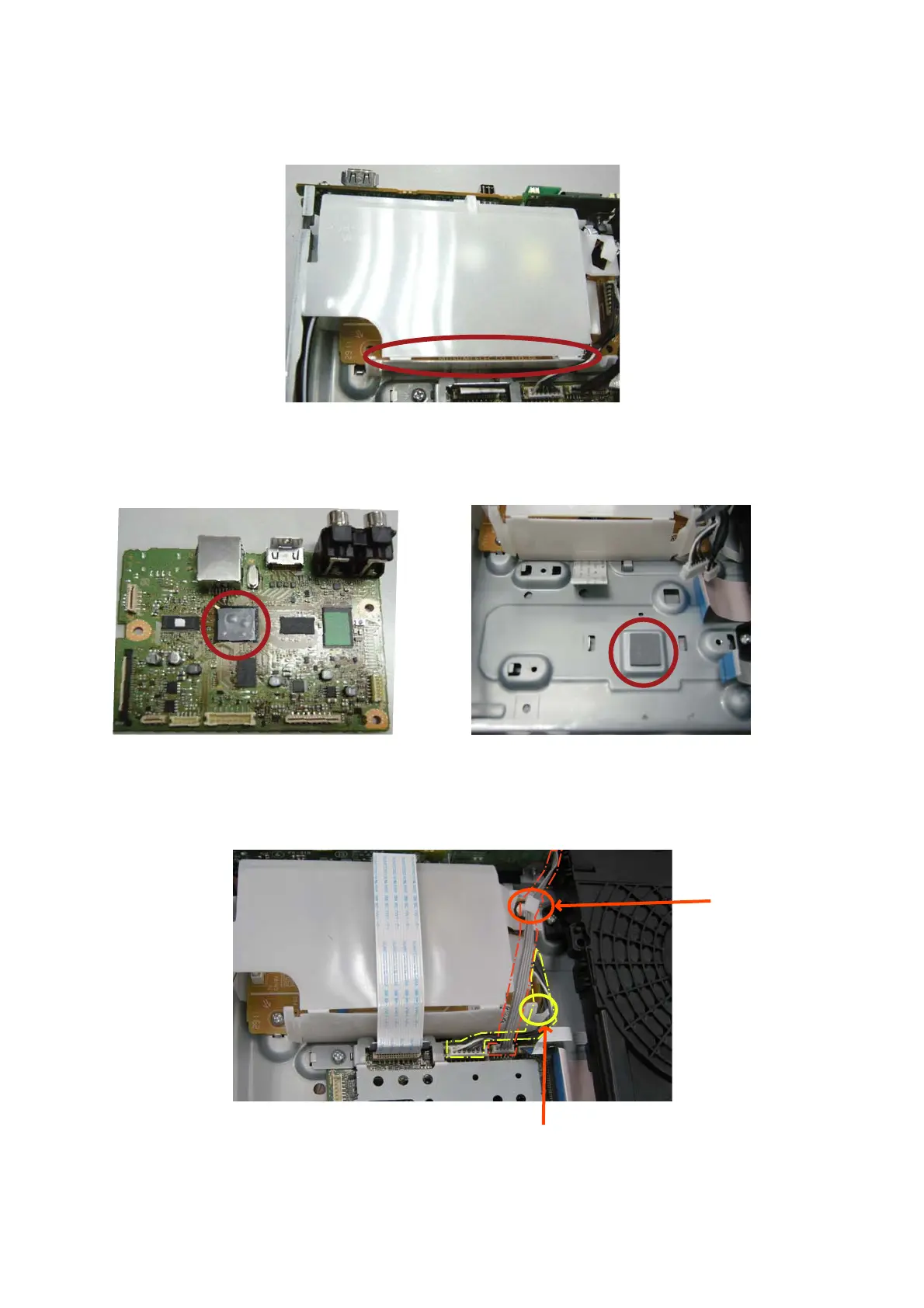

1-5-1. Whenever you need to disassemble or assemble the PS Insulator please handle it with care,
since it might be broken and not a service part.
1-5-2. Whenever you need to disassemble or assemble MB-144 board, please make sure the
radiation sheet is at the right place, since it might be rippedand not a service part.
Please refer Fig 1 and Fig 2.
1-5-3. Whenever you need to disassemble or assemble WLAN module, please make sure the
harness dressing is at the right place
Fig 1 : Top side
Fig 2 : Bottom side
Slit
Do not slit
*Place PM-173 cable at the side of PS insulator
To Next Page
