Sony RMT-D107A - Front Panel Assembly

8-2

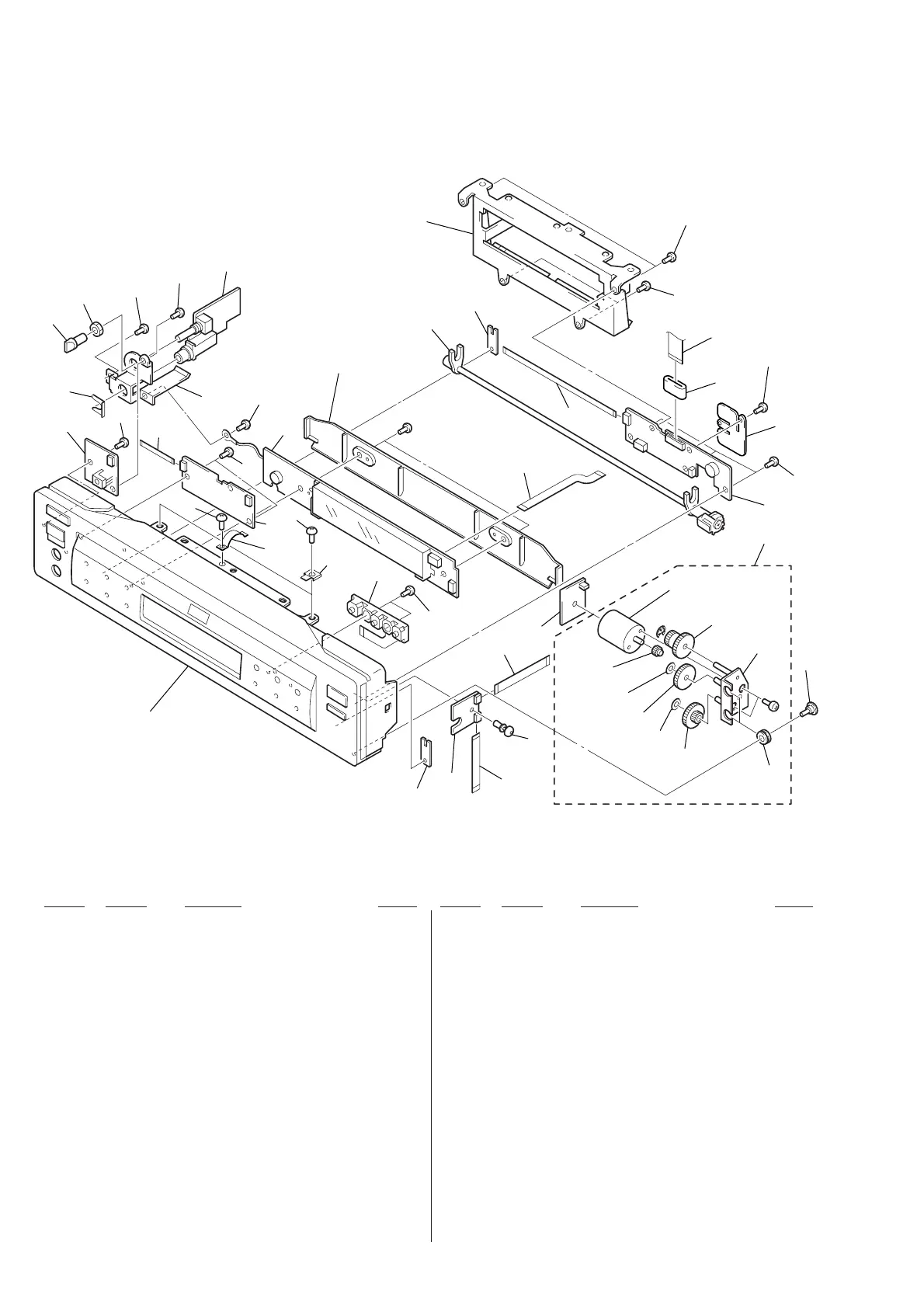

8-1-2. FRONT PANEL ASSEMBLY
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 A-6062-101-A SUB BLOCK ASSY, FRONT PANEL
* 52 A-6065-166-A PW-119 BOARD, COMPLETE
53 4-951-620-01 SCREW (2.6X8), +BVTP
* 54 3-684-436-01 PLATE, MOUNT
55 3-974-959-11 KNOB, VOLUME
56 2-118-268-01 NUT (M9), HEXAGON
* 57 A-6065-163-A HP-119 BOARD, COMPLETE
58 3-052-659-01 BRACKET, HP
59 1-790-144-11 CABLE, FLEXIBLE FLAT (FFP-11) (5P)
* 60 A-6065-162-A FR-159 BOARD, COMPLETE
61 3-970-608-11 SUMITITE (B3), +BV
62 1-475-109-11 SWITCH BLOCK, TOUCH
* 63 A-6065-165-A FP-60 BOARD, COMPLETE
64 1-671-924-11 FPL-1 FLEXIBLE BOARD
65 A-6062-009-A SHAFT ASSY, LINK
* 66 3-974-956-01 RETAINER, LINK SHAFT
67 1-790-143-11 CABLE, FLEXIBLE FLAT (FLR-2) (6P)
68 1-790-140-11 CABLE, FLEXIBLE FLAT (FML-8) (20P)
* 69 1-500-544-11 BEAD, FERRITE
70 3-989-677-01 HOLDER
* 71 A-6065-164-A FL-107 BOARD, COMPLETE
72 A-6062-008-A DRIVING BLOCK ASSY, DOOR
73 3-570-118-00 CUSHION, MOTOR
74 3-975-014-01 GEAR (B)
75 3-377-720-01 WASHER, POLYETHYLENE
76 3-975-015-01 GEAR (C)
77 4-968-863-01 GEAR (A)
78 3-975-016-01 GEAR (D)
79 3-975-023-01 SCREW, CUSHION STOPPER
* 80 A-6065-167-A CN-112 BOARD, COMPLETE
81 1-782-197-11 CABLE, FLEXIBLE FLAT (FFD-1) (6P)
* 82 3-954-681-01 RIVET, NYLON
83 1-782-198-11 CABLE, FLEXIBLE FLAT (FDC-3) (3P)
* 84 A-6065-168-A DR-87 BOARD, COMPLETE
85 3-051-301-01 SPRING, SHIELD
not
supplied
not supplied
(M451)
not supplied
not
supplied
#3
#4
#5
78
72
71
77
80
81
82
75
76
75
74
73
79
83
84
66
51
62
64
67
66
61
60
53
53
53
53
58
59
63
54
55
56
53
53
57
52
53
53
53
68
69
70
65
53
not
supplied
61
85
