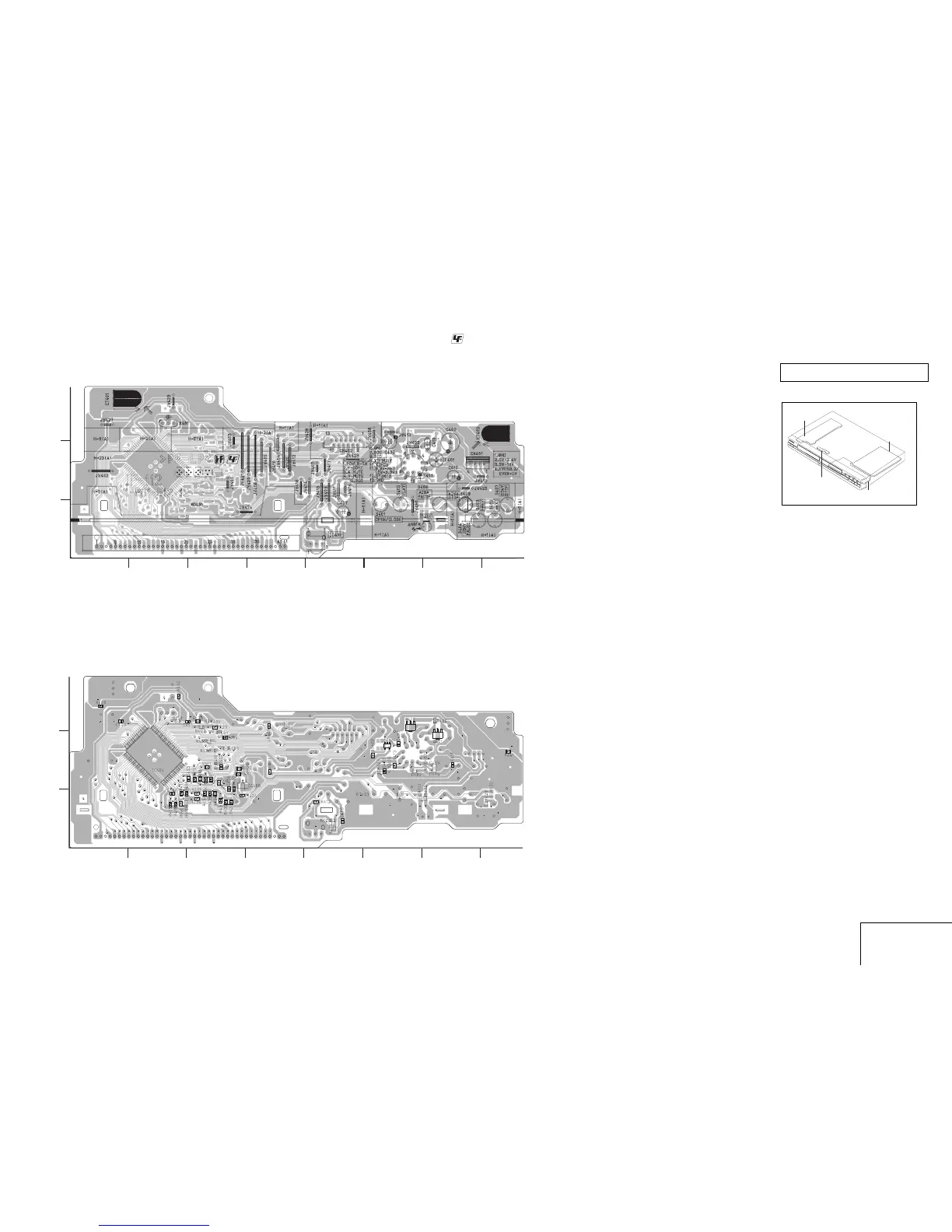

Sony RMT-D166P - IF-112 (INTERFACE) PRINTED WIRING BOARD; IF-112 BOARD A SIDE; IF-112 BOARD B SIDE

DVP-NS355/NS501P/NS507P/NS525P/NS575P/NS585P
4-17 4-18
IF-112 BOARD
A SIDE
IC406 A-5
D401 A-7
B SIDE
IC404 B-2
IC408 B-4
IC474 B-6
Q401 B-7
Q402 C-6
D402 B-6
D403 B-7
D404 B-7
D405 B-7
D406 B-6
IF-112 (INTERFACE) PRINTED WIRING BOARD
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
IF-112 BOARD A SIDE
• : Uses unleaded solder.
INTERFACE
IF-112
IF-112 BOARD B SIDE
IF-112 board
(SWITCH)
MV-44 board
(SERVO DRIVE &
SYSTEM CONTROL)
Power board
MS-203 board
(LOADING MOTOR)
B
C
A
1
2
8765
4
3
B
C
A
1
2
8765
4
3
