Sony RMT-D166P - POWER BLOCK (SRV1501 WW) PRINTED WIRING BOARD; POWER BOARD (SRV1501 WW) (SIDE A); POWER BOARD (SRV1501 WW) (SIDE B)

DVP-NS355/NS501P/NS507P/NS525P/NS575P/NS585P
B
A
1
2
765
43
B
A
1
2
765
43
1-478-539-12

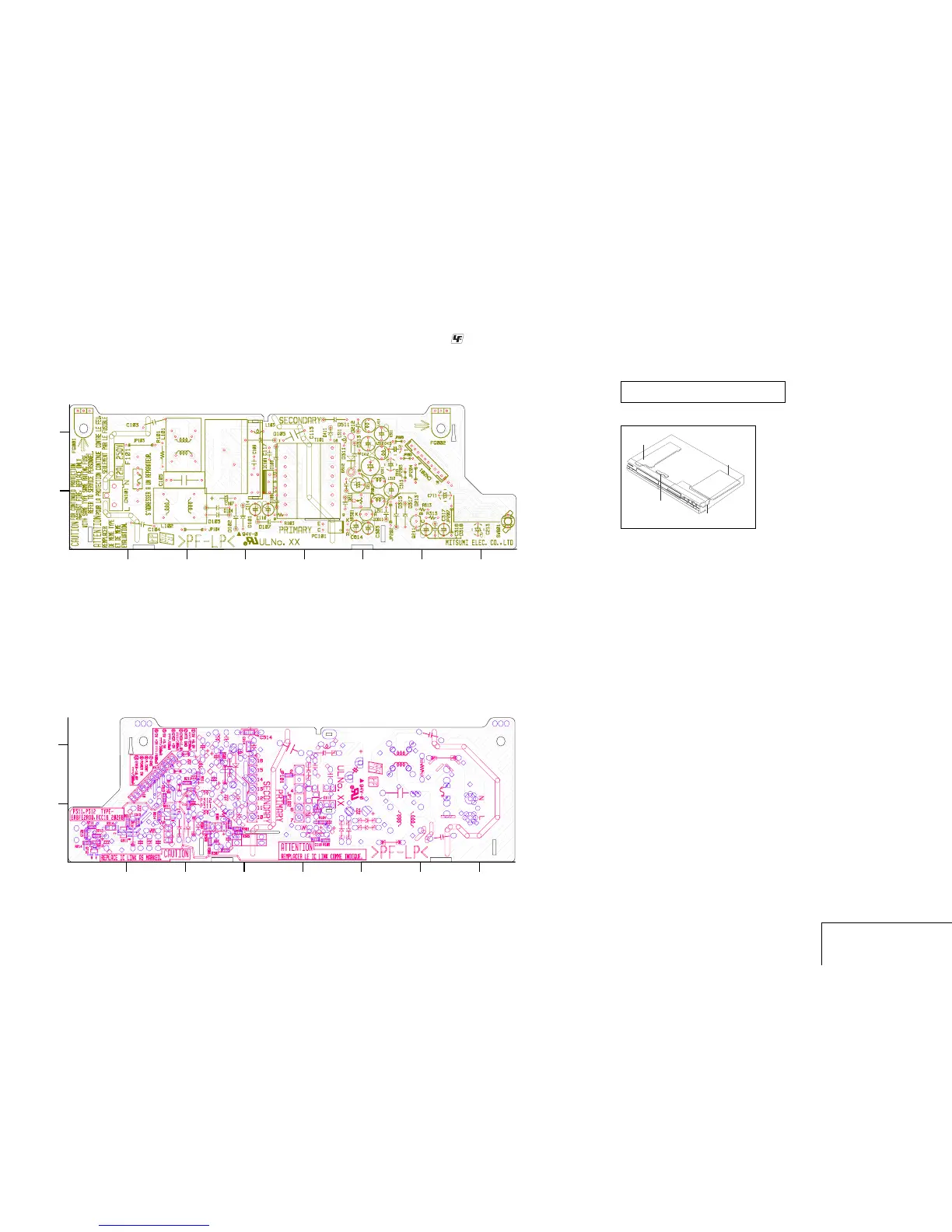

POWER BLOCK (SRV1501WW) PRINTED WIRING BOARD
POWER BOARD (SRV1501WW) (SIDE A)
(E, SP, AUS)
POWER BOARD (SRV1501WW) (SIDE B)
(E, SP, AUS)
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
POWER BOARD
(SRV1501WW)
A SIDE
IC101 B-4
IC611 A-6
Q211 A-6
D101 A-4
D102 A-3
D103 A-3
D104 A-3
D105 B-4
D106 B-4
D107 A-4
D108 A-4
D211 A-5
D212 C-5
D213 A-6
D311 B-5
D312 B-5
D313 B-5
D315 A-6
D317 A-6
D318 A-7
D411 B-5
D511 C-5
B SIDE
Q311 A-1
Q611 A-2
Q712 A-1
IF-112 board
(SWITCH)
MV-44 board
(SERVO DRIVE &
SYSTEM CONTROL)
Power board
MS-203 board
(LOADING MOTOR)
4-25 4-26
POWER BOARD
POWER BLOCK (SRV1501WW)
• : Uses unleaded solder.
