1-4 Tools and fixtures reguired for service
<Fig 1-35>
Ref. No.
J-1
J-2
J-3
J-4
J-5
J-6
J-6
Name
Torque Measurement Cassette VHT-103S
Torque Measurement Cassette VHT-404S
Alignment Tape KRV-52NE (NTSC)
KRV-51N2 (NTSC)
KRV-52PL (PAL)
KRV-51P (PAL)
Cleaning Fluid
Chamois Leather
Dental Mirror (with Handle)
Dental Mirror (Mirror)
Grease Molykote EM 30LG
Diamond Oil NT-68
Part No.
J-6090-072-A
J-6082-012-A
8-192-605-41
8-192-605-32
8-192-605-46
8-192-605-36
Y-2031-001-0
2-034-697-00
J-6080-029-A
J-6080-030-1
J-6090-014-A
7-661-018-18
Caved Jig No.
—
—
SL-5052
Remarks
For FWD & back tension torque measurement
For CUE and REVIEW torque measurement
Tape path, Audio azimuth, X-value adjustments
Electrical adjustments, Operation check
Tape path, Audio azimuth, X-value adjustments
Electrical adjustments, Operation check
Tape path and tape traveling adjustments or
checks
Net. 20 g

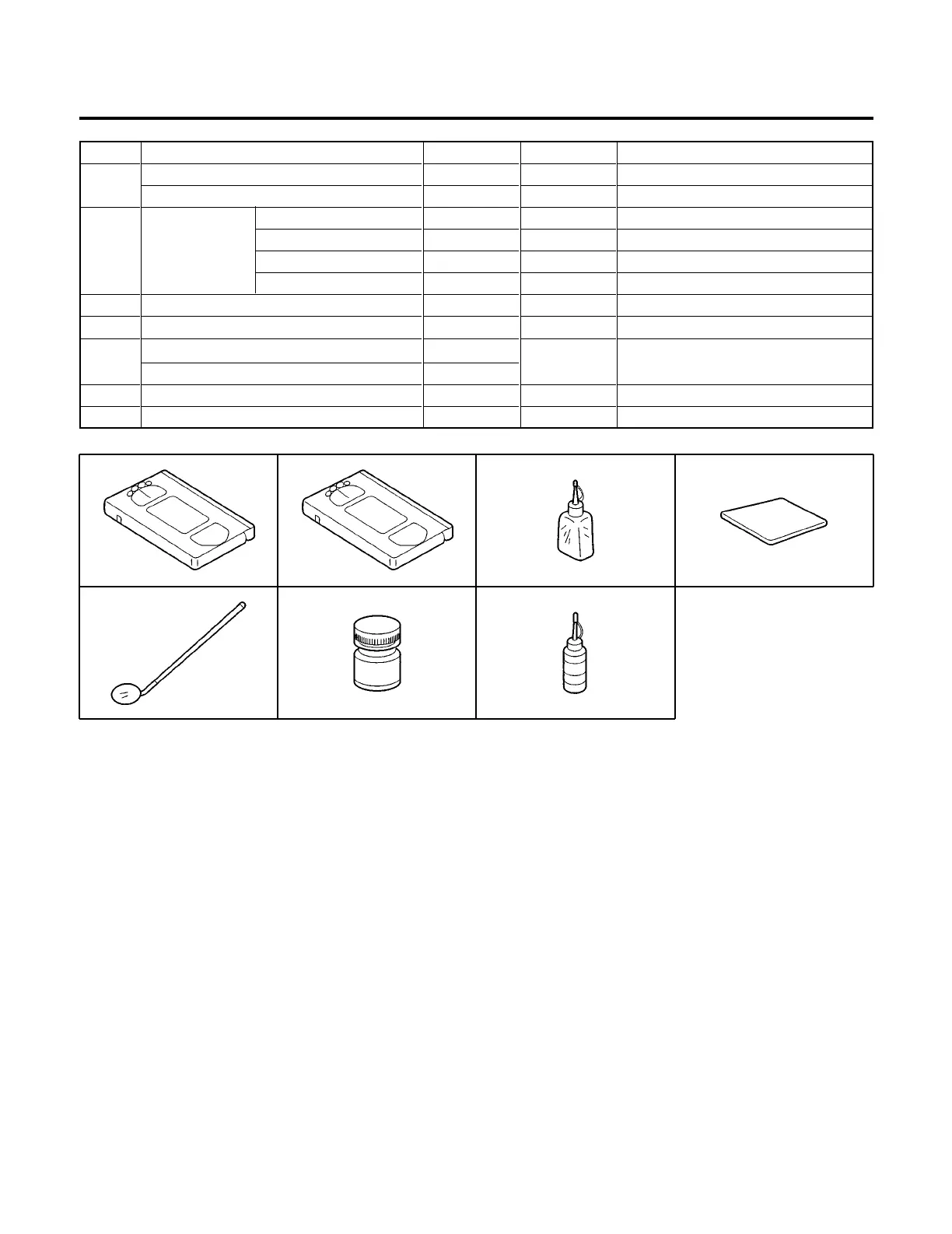

J-1 J-2 J-3
J-5 J-6 J-7
J-4
