Sony RMT-V402 - Main Deck; Lever FL Door Removal; Holder FL Cassette Assy Removal

–
6 –
1-2-1 Lever FL Door Removal
1) Push the Holder FL Cassette Ass'y Πabout 20mm
in the direction of arrow “A”.
2) Rotate the Lever FL Door ´ in the direction of
arrow “B”.
3) Release the Hook ˇ and Remove the Lever FL
Door ´ in the direction of arrow “C”.
"B"
"C"
"A"
´ LEVER FL DOOR
ˇ HOOK
ΠHOLDER FL CASSETTE ASS'Y
1-2-2 Holder FL Cassette Ass’y Removal
1) Pull the Holder FL Cassette Ass'y Πto the eject
position.
2) Pull the Holder FL Cassette Ass'y Πas grasping
the Holder FL Cassette Ass'y Πand Lever FL
Cassette-R ´ in the same time to release hooking
from Main Base until the Boss [A] of Holder FL
Cassette Ass'y Πis taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass'y Œ, in this time,
you have to grasp the Lever FL Cassette-R ´
Continuously until the Holder FL Cassette Ass'y
Πis taken out completely.
Note : Be sure to insert Lever FL Cassette-R ´ in the
direction of “A” to prevent separation and breakage
of the Lever FL Cassette-R ´ at disassembling and
reassembling.
ΠHOLDER FL
CASSETTEE ASS`Y
BOSS [A]
RAIL [B]
´ LEVER FL CASSETTEE -R
"A"
1-2 Main Deck

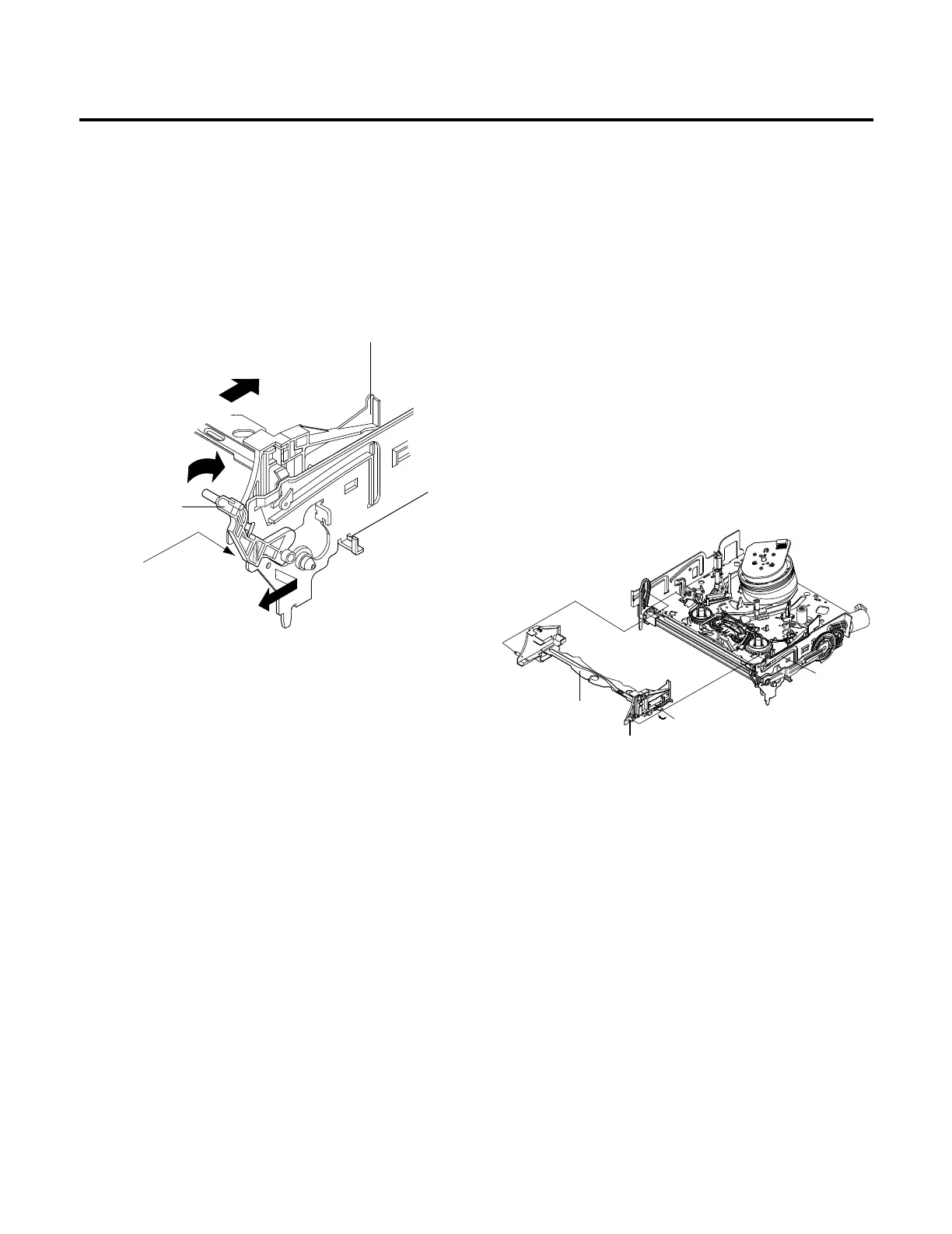

Fig. 1-4 Lever FL Door Removal
Fig. 1-5 Holder FL Cassette Ass’y Removal
