9
SA-WP5000/SS-CNP5000/CRP5000/CRP7001/MSP5000/SRP5000
SECTION 3
EXPLODED VIEWS
1 A-1441-087-A FRONT PANEL ASSY (for BLACK)
(E51, SP, MY, TH, AUS)
1 A-1543-260-A FRONT PANEL ASSY (for SILVER) (E51, MX, AR)
2 4-999-482-91 KNOB (VOL)
0 3 1-777-071-23 CORD, POWER (E51, SP, MY)
0 3 1-783-941-12 CORD, POWER (AR)
0 3 1-829-627-11 POWER-SUPPLY CORD (MX)
0 3 1-833-566-21 POWER-SUPPLY CORD (AUS)
0 3 1-834-288-21 POWER-SUPPLY CORD (TH)
4 A-1439-168-A MAIN BOARD, COMPLETE (E51)
4 A-1439-204-A MAIN BOARD, COMPLETE (SP, MY, TH)
4 A-1439-205-A MAIN BOARD, COMPLETE (AUS)
4 A-1439-206-A MAIN BOARD, COMPLETE (AR)
4 A-1439-208-A MAIN BOARD, COMPLETE (MX)
5 3-905-609-31 SCREW (TRANSISTOR)
6 4-229-966-02 SCREW (4X16), +BV TAPPING
7 3-703-244-00 CORD BUSH (2104) (EXCEPT TH)
7 4-916-783-01 BUSHING, CORD (TH)
8 4-244-832-51 KNOB POWER
9 4-986-971-02 SCREW (3.5)
11 4-874-614-12 SCREW (1) (3.5X14), TAPPING
12 4-874-614-71 SCREW
0 F900 1-532-463-33 FUSE (T1AL/250V) (E51)
0 F901 1-532-463-33 FUSE (T1AL/250V) (SP, MY, AR, TH, AUS)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (MX)
0 F901 1-533-690-12 FUSE, GLASS CYLINDRICAL (DIA.5) (3.15A/125V)
(E51)
0 F902 1-532-463-33 FUSE (T1AL/250V) (E51)
Q307 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q308 6-702-390-01 TRANSISTOR MN2488-OPY-MK
RV801 1-227-511-11 RES, VAR, CARBON 20K (LEVEL)
SP1 1-826-607-21 LOUDSPEAKER (25 cm)
0 T1 1-443-886-21 TRANSFORMER, POWER (SP, MY, AR, TH, AUS)
0 T1 1-445-016-11 TRANSFORMER, POWER (MX)
0 T1 1-445-478-11 POWER SOURCE TRANSFORMER (E51)
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

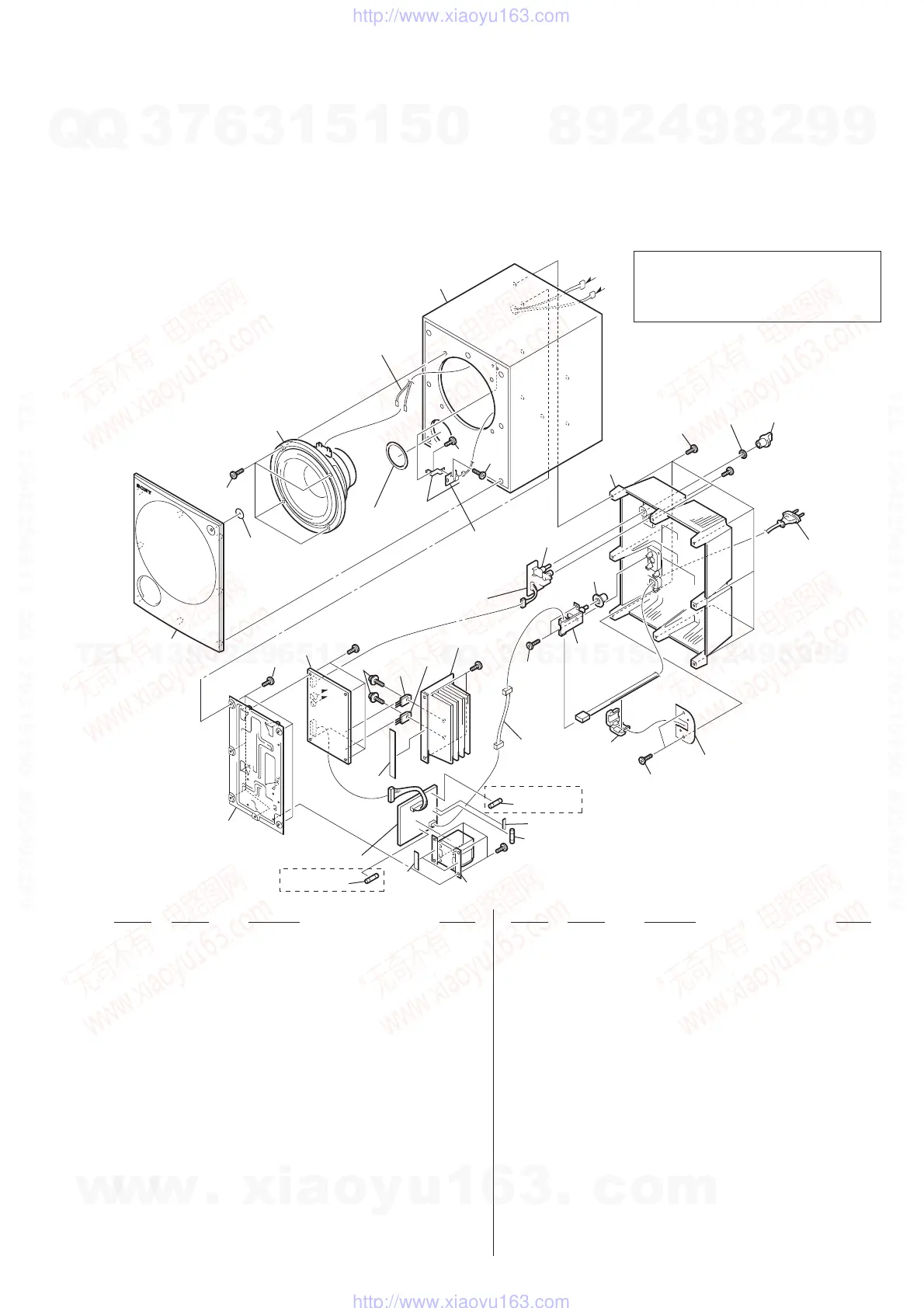

3-1. SA-WP5000
1
6
SP1
including
RV801
Q307
Q308
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not
supplied
not
supplied
not supplied
not
supplied
not supplied
not supplied
not
supplied
11
2
7
8
9
9
3
#2
#2
#1
4
11
5
RV801
9
12
a
b
a
b
F901
F900
F902
T1
#1
not supplied
(LED board)
not supplied
(INPUT
CONTROL board)
not supplied
(SWITCH board)
not supplied
(POWER TRANS board)
(E51)
(E51)
• Abbreviation
AR : Argentina model
AUS : Australian model
E51 : Chilean and Peruvian models
MX : Mexican model
MY : Malaysia model
SP : Singapore model
TH : Thai model
Ver. 1.1
