6-2

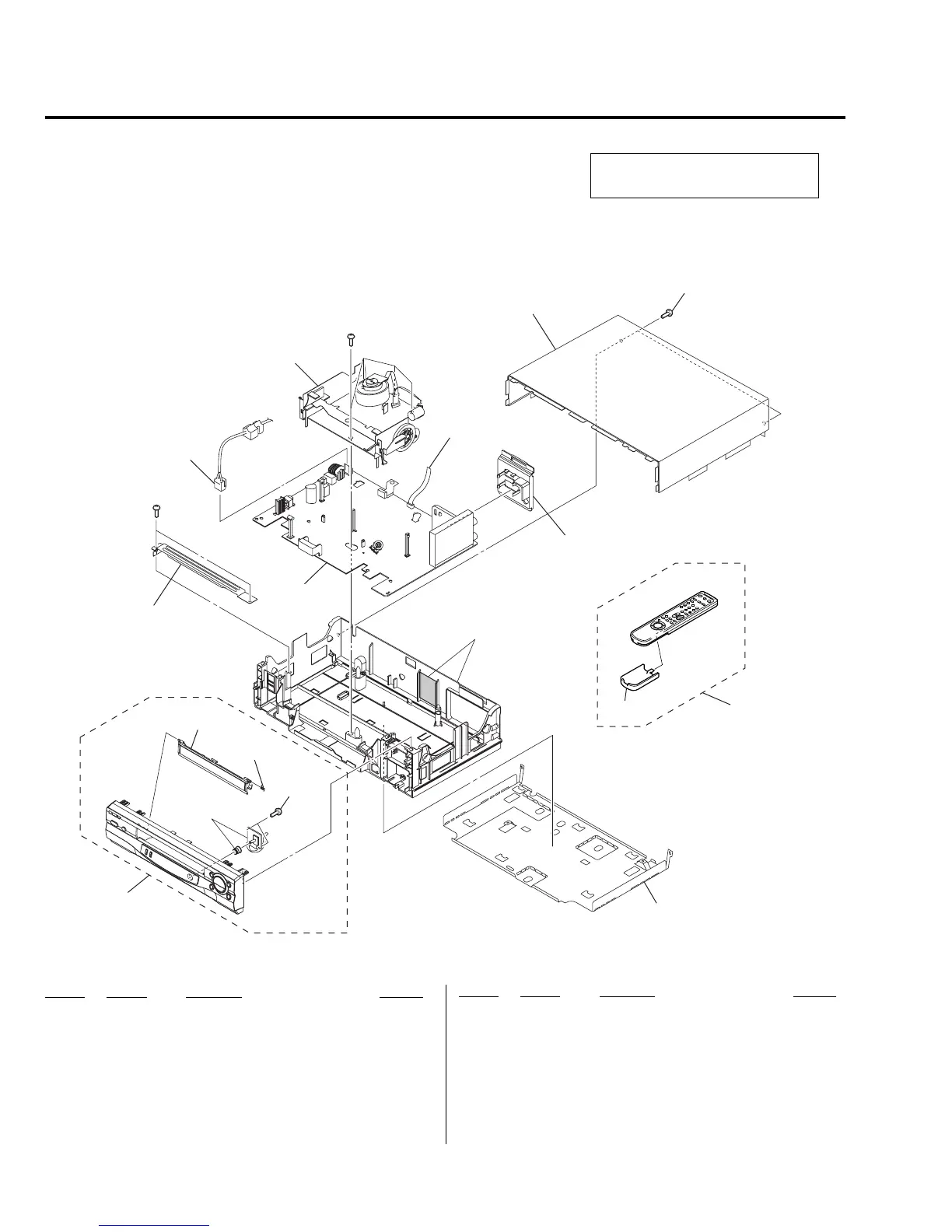

6-1-1 Instrument Assembly (Mono Models)
6-1 EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
1 3-076-021-01 PANEL FRONT (EZ121)
1 3-076-022-01 PANEL FRONT (ED225)
1 3-076-023-01 PANEL FRONT (ED323)
1 3-076-024-01 PANEL FRONT (EZ424)
2 3-076-017-01 DOOR-CASSETTE
3 3-076-035-01 ASSY-DECK
0 4 1-823-023-11 POWER CORD (ED225/ED323)
0 4 1-824-231-11 POWER CORD (EZ121/EZ424)
5 3-075-020-01 CASE UPPER
6 7-685-646-11 SCREW-TAPTITE
8 1-477-367-11 REMOTE COMMANDER (RMT-V408)
(EXCEPT EZ424)
8 1-477-368-11 REMOTE COMMANDER (RMT-V408A) (EZ424)
9 3-075-088-01 DOOR BATTERY REMOCON
(for RMT-V408/V408A)
8
1
2
3
5
6
4
9
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#1
#2
not supplied
•Abbreviation
AUS: Australia model
HK : Hong Kong model
ME : Middle East model
• Hi-Fi model: ED825/ED828/ED925/ED929/
EZ725/EZ727
Mono model:ED225/ED323/EZ121/EZ424
