SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
26
27
28
24
25
24
23
22
30
21
21
21
21
21
13
29
15
14
17
16
20
19
18
34
7
1
8
2
3
6
5
4
32
10
12
33
31
11
9
34
26
28
26
28

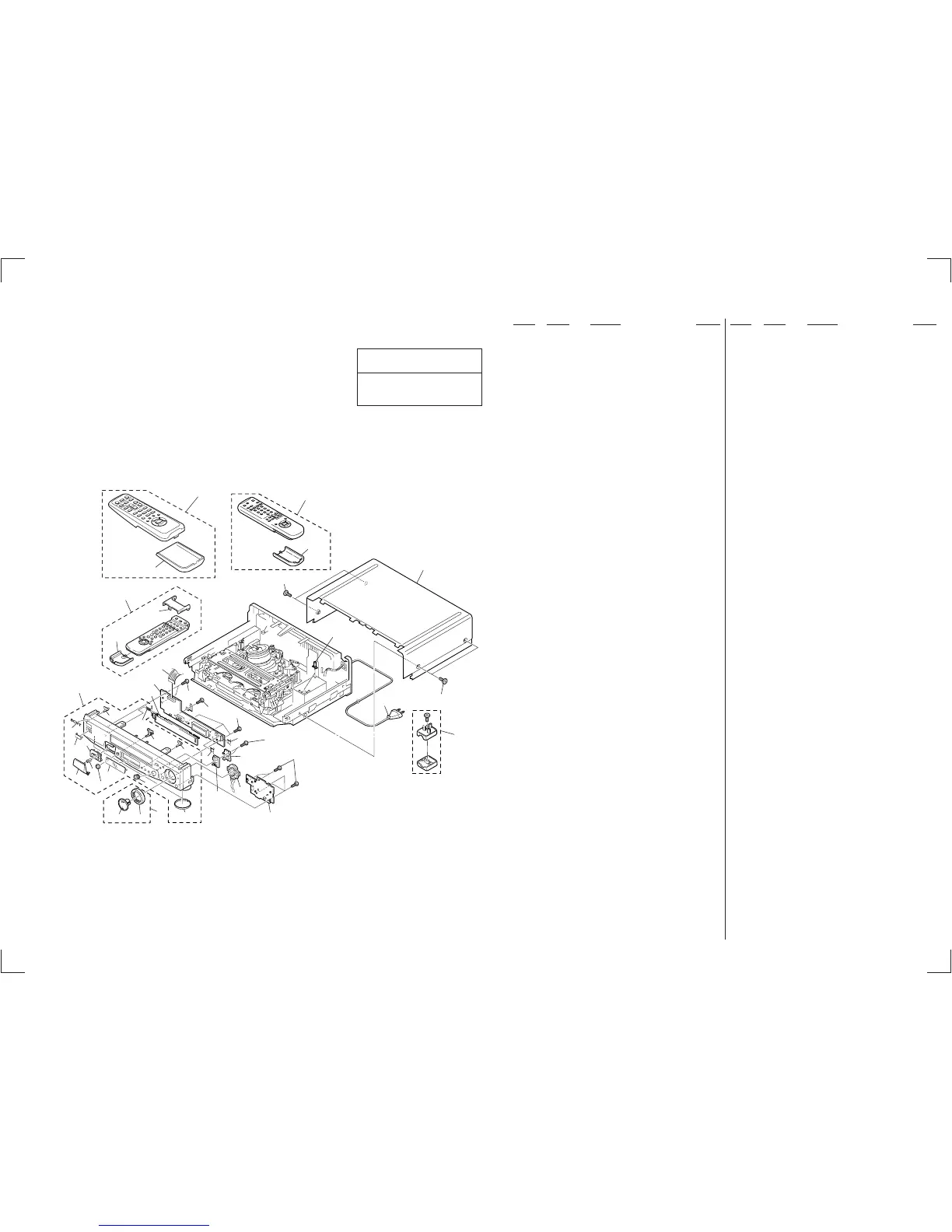

7-1-1. FRONT PANEL AND UPPER CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3949-219-1 PANELASSY, FRONT (X80)
1 X-3949-220-1 PANELASSY, FRONT (80:UX)
1 X-3949-221-1 PANELASSY, FRONT (80:B)
1 X-3949-222-1 PANELASSY, FRONT (80:NP,VC1,VC2)
1 X-3949-223-1 PANELASSY, FRONT (70:EX,UX)
1 X-3949-224-1 PANELASSY, FRONT (70:B)
1 X-3949-225-1 PANELASSY, FRONT (70:NP1,NP2,VC1,VC2)
1 X-3949-226-1 PANELASSY, FRONT (X70:B)
1 X-3949-227-1 PANELASSY, FRONT (X70:VC)
1 X-3949-228-1 PANELASSY, FRONT (X60)
1 X-3949-229-1 PANELASSY, FRONT (60)
1 X-3949-236-1 PANELASSY, FRONT (35)
1 X-3949-286-1 PANELASSY, FRONT (70:EG)
1 X-3949-287-1 PANELASSY, FRONT (70:EN)
1 X-3949-288-1 PANELASSY, FRONT (X70:EN)
1 X-3949-289-1 PANELASSY, FRONT (70:EE)
1 X-3949-290-2 PANELASSY, FRONT (80:EG)
1 X-3949-291-2 PANELASSY, FRONT (80:EN)
1 X-3949-292-1 PANELASSY, FRONT (50:EG)
1 X-3949-293-1 PANELASSY, FRONT (50:EE)
2 3-053-436-01 EMBLEM (NO.5), SONY
3 3-053-397-01 WINDOW, RAY CATCHER (EE,EG,EN)
3 3-053-397-11 WINDOW, RAY CATCHER (EXCEPT EE,EG,EN)
4 4-047-464-01 CATCHER, PUSH
(50/70:EE,EG,EN/80/X70:EN/X80)
5 3-053-384-01 HOLDER, JACK (50)
5 3-053-384-11 HOLDER, JACK (70:EG,EN,EE/80:EG,EN/X70:EN)
5 3-053-384-21 HOLDER, JACK(80:B)
5 3-053-384-31 HOLDER, JACK(80:NP,UX,VC1,VC2/X80)
6 3-053-389-01 PLATE(S), FROSTED
(50/80:EG,EN,EE/80:EG,EN/X70:EN)
6 3-053-389-11 PLATE(S), FROSTED
(80:B,NP,UX,VC1,VC2/X80)
6 3-053-375-01 PLATE(L), FROSTED (35)
6 3-053-375-11 PLATE(L), FROSTED
(60/70:B,EX,NP1,NP2,UX,VC1,VC2/X60/X70:B,VC)
7 3-953-432-01 SPRING (GE), FL
8 3-053-396-01 INDICATOR (EE,EG,EN)
8 3-053-396-11 INDICATOR (EXCEPT EE,EG,EN)
9 3-053-385-01 KNOB,TIMER REC (80:B,NP,UX,VC1,VC2/X80)
10 3-053-382-01 DOOR, SWITCHING (50/70:EE,EG,EN/80:EG,EN)
11 3-053-395-01 INSULATOR (EE,EG,EN)
11 3-053-395-11 INSULATOR (EXCEPT EE,EG,EN)
12 3-053-406-01 RING, AUTO BUTTON (EE,EG,EN)
12 3-053-406-11 RING, AUTO BUTTON (EXCEPT EE,EG,EN)
13 1-762-844-31 SWITCH, ROTARY (50,80,X80)
* 14 A-6794-674-A SU-5A BOARD, COMPLETE (50:EE)
* 14 A-6794-668-A KK-17A BOARD, COMPLETE
(80:EXCEPT EG,EN/X80)
15 3-053-383-01 HOLDER, TIMER REC
(80:B,NP,UX,VC1,VC2/X80)
16 1-790-327-11 CABLE, FLAT (FFK-2)
(50:EE/80:B,NP,UX,VC1,VC2/X80)
17 1-790-326-11 CABLE, FLAT (FFD-4)
* 18 A-6791-794-A FR-152A BOARD, COMPLETE (70:EE/80:EG,EN)
* 18 A-6791-786-A FR-152B BOARD, COMPLETE
(80:EXCEPT EG,EN/X80)
* 18 A-6791-790-A FR-152C BOARD, COMPLETE
(70:EG,EN/X70:EN)
* 18 A-6791-801-A FR-152D BOARD, COMPLETE (35)
* 18 A-6791-775-A FR-152D BOARD, COMPLETE
(60/70:EXCEPT EE,EG,EN/X60/X70:B,VC)
* 18 A-6791-792-A FR-152E BOARD, COMPLETE (50:EG)
* 18 A-6791-798-A FR-152F BOARD, COMPLETE (50:EE)
19 3-053-400-21 DOOR(D), CASSETTE
(70:EX,UX/80:UX/X60/X80)
19 3-979-302-11 DOOR(AV), CASSETTE
(60/70:B,NP1,NP2,VC1,VC2/80:B,NP,VC1,VC2)
19 3-987-850-31 DOOR(I), CASSETTE (80:EG,EN)
20 1-790-325-11 CABLE, FLAT (FFM-26)
21 4-921-277-41 SCREW (B2.6 × 8), TAPPING, BIND
! 22 1-782-012-11 CORD, POWER
! 23 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P
(70:EX,UX/80:UX)
24 3-363-099-01 SCREW (CASE 3 TP2)
25 3-054-434-21 CASE, UPPER (EXCEPT UX,EX,X60,X70,X80)
25 3-987-684-41 CASE, UPPER (X70:EN)
25 3-987-684-51 CASE, UPPER
(70:EX,UX/80:UX/X60/X70:B,VC/X80)
26 1-418-007-21 COMMANDER, STANDARD (RMT-V256A)
(60:NP,AE1/AE2/X60)
26 1-418-008-31 COMMANDER, STANDARD (RMT-V257B) (35)
26 1-418-010-11 COMMANDER, STANDARD (RMT-V259)
(70:EE,EG,EN,EX,NP1,NP2,UX,VC1,VC2/X70:EN,VC)
26 1-418-010-21 COMMANDER, STANDARD (RMT-V259A)
(70:B/X70:B)
26 1-418-010-31 COMMANDER, STANDARD (RMT-V259B)
(50/80:EG,EN,NP,UX,VC1,VC2/X80)
26 1-418-010-41 COMMANDER, STANDARD (RMT-V259C) (80:B)
27 3-709-430-01 COVER, REMOTE CONTROL
(50/60:AE1/70/80/X70/X80)
28 3-709-322-01 COVER, BATTERY (60:AE2,NP/X60)
28 3-709-431-01 COVER, REMOTE CONTROL BATTERY
(50/60:AE1/70/80/X70/X80)
28 3-709-433-01 COVER, REMOTE CONTROL BATTERY (35)
28 3-709-322-01 COVER, BATTERY (60:AE1)
* 29 A-6794-673-A DM-82A BOARD, COMPLETE (50/80:EG,EN)
* 29 A-6794-667-A DM-82A BOARD, COMPLETE
(80:EXCEPT EG,EN/X80)
* 29 A-6794-664-A DM-82B BOARD, COMPLETE
(60/70:EXCEPT EE,EG,EN/X60/X70:B,VC)
* 29 A-6794-669-A DM-82B BOARD, COMPLETE
(35/70:EE,EG,EN/X70:EN)
30 3-670-570-71 SPACER, SUPPORT
31 X-3948-232-1 BUTTON ASSY, FUNCTION
(35/60/70:NP1,NP2,VC1,VC2,EG,EN,EE)
31 X-3948-307-1 BUTTON ASSY, FUNCTION (70:B)
31 X-3949-584-1 BUTTON ASSY, FUNCTION
(70:EX,UX/X60/X70:EN,VC)
31 X-3949-585-1 BUTTON ASSY, FUNCTION (X70:B)
32 3-979-309-21 BUTTON (AV), CENTER (80:VC2)
32 3-979-309-31 BUTTON (AV), CENTER (80:B)
32 3-979-309-71 BUTTON (AV), CENTER (80:UX/X80)
32 3-979-309-81 BUTTON (AV), CENTER (50/80:EG,EN,NP,VC1)
32 3-987-939-22 BUTTON CENTER
(35/60/70:EE,EG,EN,NP1,NP2,VC1,VC2)
32 3-987-939-32 BUTTON CENTER(70:B)
32 3-987-722-11 BUTTON, JOG(50/80:EG,EN)
33 3-979-310-21 RING(AV), JOG (50/80:B,EG,EN,NP,VC1,VC2)
33 3-979-310-31 RING(AV), JOG(80:UX/X80)
33 3-987-938-21 BUTTON, RING
(35/60/70:EE,EG,EN,NP1,NP2,VC1,VC2)
33 3-987-938-31 BUTTON, RING (70:B)
34 3-053-390-01 INDICATOR (FF) (50/70:EE/80:EG,EN)
7-1 7-2
SLV-SE35/SE50/SE60/SE70/SE80/SX60/SX70/SX80
