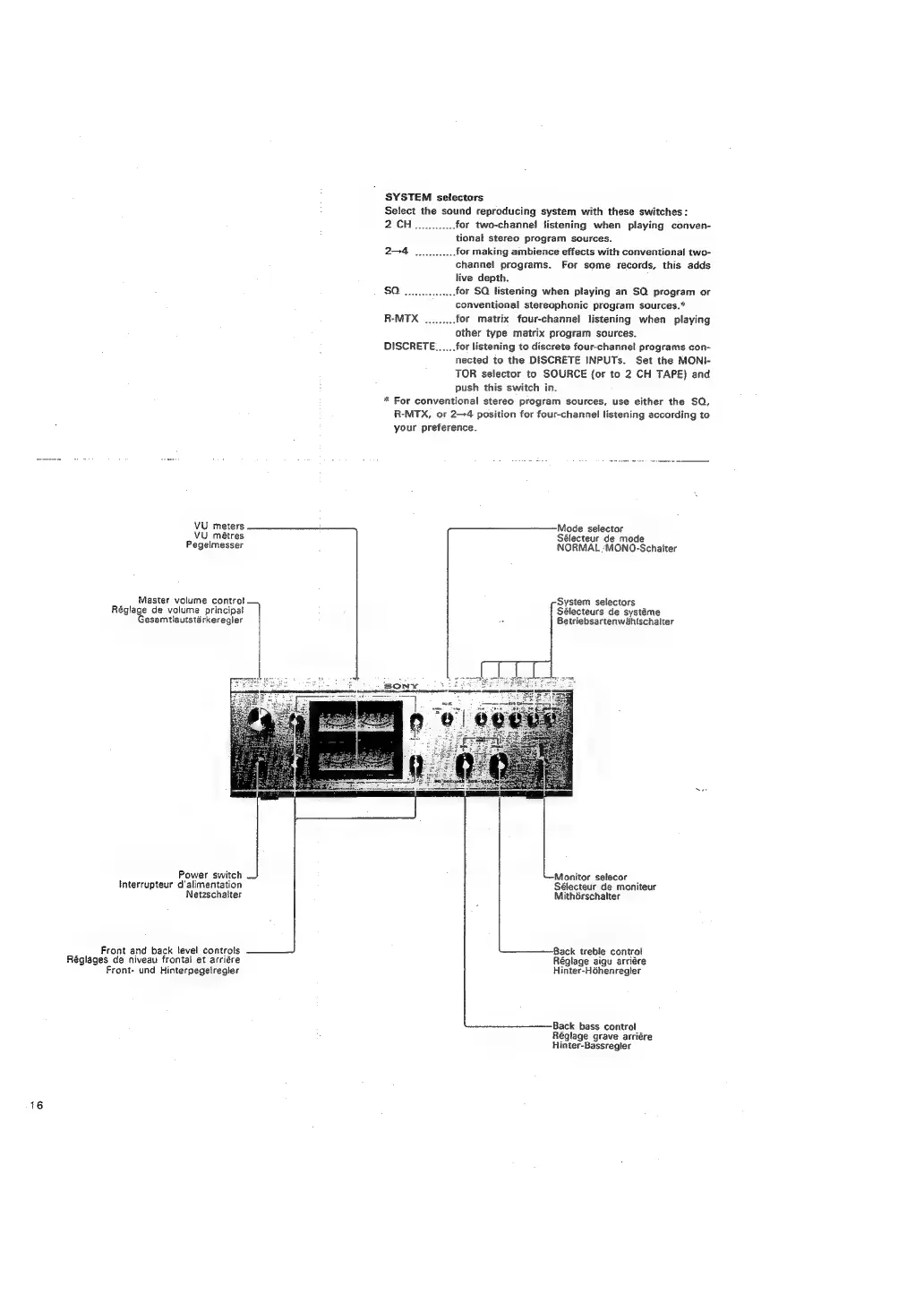

VU meters
VU métres
Pegelmesser
_ _ Master volume control
Réglage de volume principat
esamtlautstarkeregler
Power switch
Interrupteur d’alimentation
Netzschalter
Front and back level controls
Réglages de niveau frontal et arriére
Front- und Hinterpegelregler
16
SYSTEM selectors
Select the sound reproducing system with these switches:
2 CH............for two-channel fistening when playing conven-
tional stereo program sources.
...for making ambience effects with conventional two-
channel! programs. For some records, this adds
live depth.
SOP eee: for SQ listening when playing an SQ program or
conventional stereophonic program sources.*
R-MTX ow... for matrix four-channel listening when playing
other type matrix program sources.
DISCRETE......for listening to discrete four-channel programs con-
nected to the DISCRETE INPUTs. Set the MONI-
TOR selector to SOURCE (or to 2 CH TAPE) and
push this switch in.
* For conventional stereo program sources, use either the SQ,
R-MTX, or 2-4 position for four-channel listening according to
your preference.
Mode selector
Sélecteur de mode
NORMAL ‘MONO-Schaiter
System selectors
Sélecteurs de systéme
Betriebsartenwahlschalter
Monitor selecor _
Sélecteur de moniteur
Mith6rschalter
Back treble control
Réglage aigu arriére
Hinter-Héhenregler
Back bass control
Réglage grave arriére
Hinter-Bassregler
