Sony SS-CPX1 - TC Board, Mechanical Deck; MAIN Board

HCD-CPX1
12
1 screw
(BVTP3
× 6)
2 screw
(BVTP3
× 8)
1 two screws (BVTP3 × 6)
1 three screws (BVTP3 × 6
)
2 screw (BVTP3 × 8)
8 main board
4 two screws (BVTP3 × 6)
5
6 wire (flat type)
(11 core)
(CN211)
6 wire (flat type)
(21 core)
(CN202)
7 connector
(CN201)
6 wire (flat type) (21 core)
(CN101)
7 two connectors
(CN301, CN401)
3 back panel

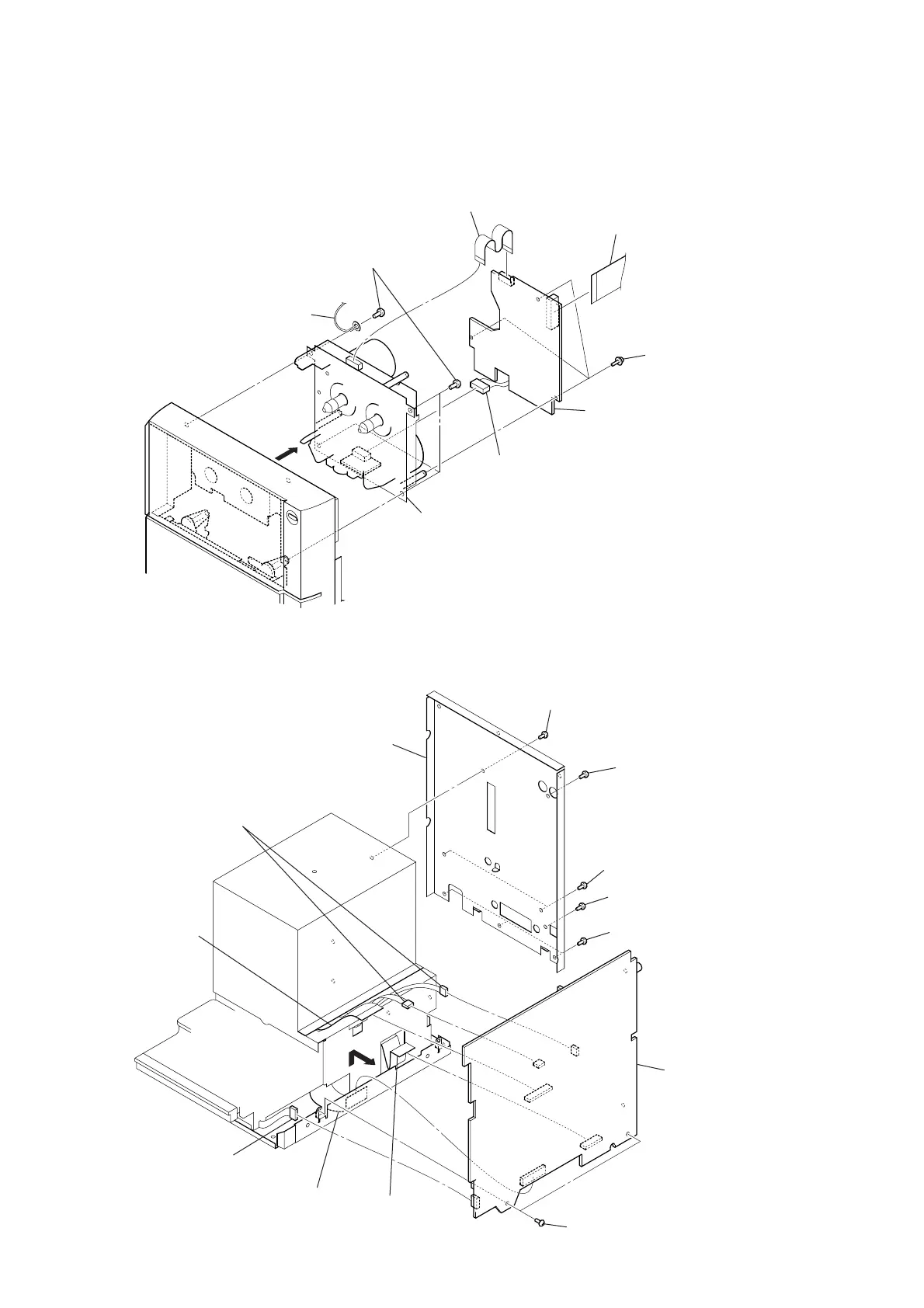

3-4. TC BOARD, MECHANICAL DECK
3-5. MAIN BOARD
2 wire (flat type) (8 core)
(CN602)
1 wire (flat type) (19 core)
(CN603)
4 three screw
s
(PTPWH 2)
5 TC board
3 connector
8 mechanical deck
6 four screws
(BVTP3
× 8)
Note: Must not use a magnetic
screwdriver to prevent the screws
from being magnetized.
7 ground wire lead
