Sony SS-CPX1 - Front Panel Section Exploded Views

48
HCD-CPX1

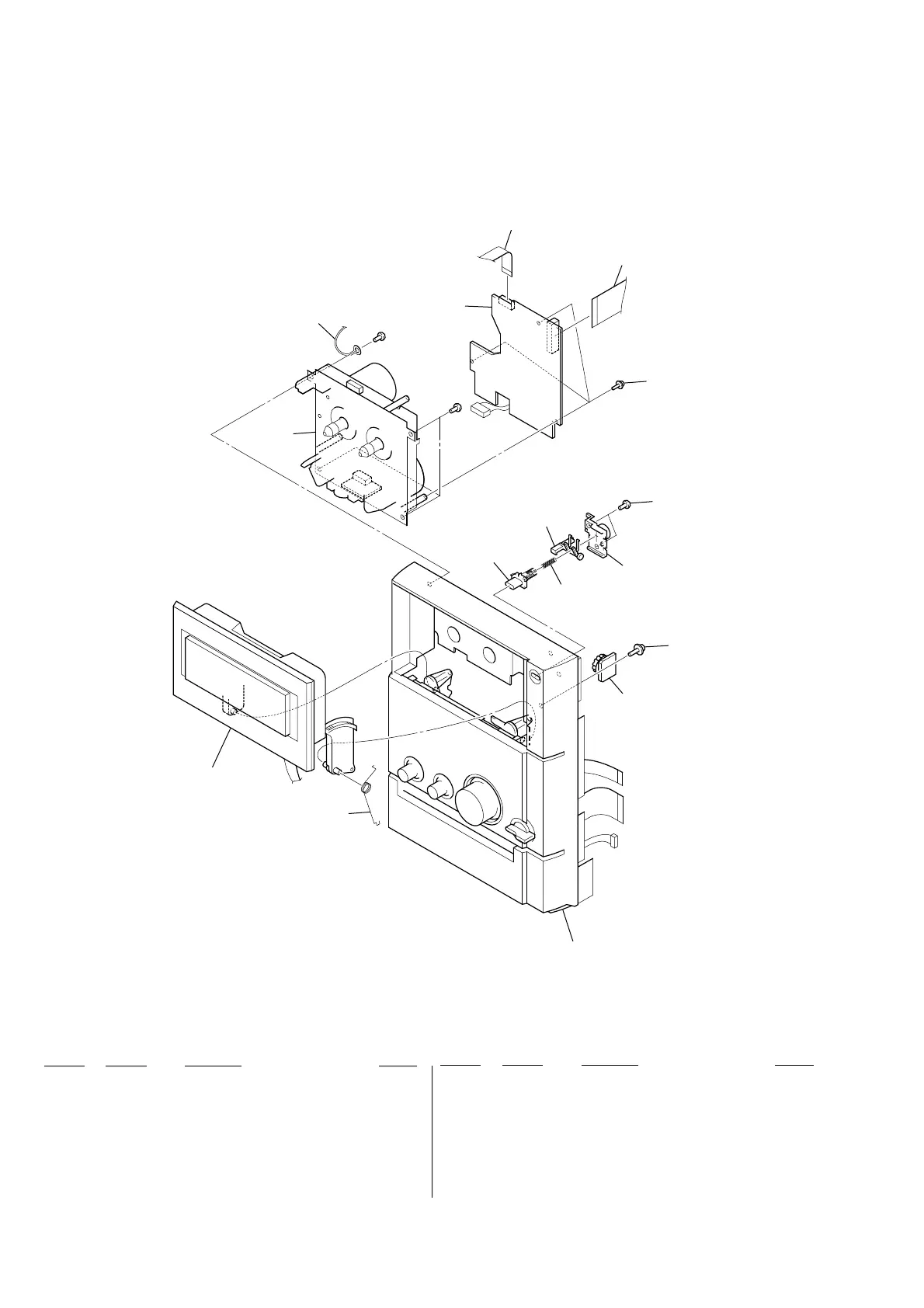

7-2. FRONT PANEL SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-244-021-01 SPRING (LID TC), TORSION
52 1-796-456-31 DECK, MECHANICAL
53 A-4731-316-A TC BOARD, COMPLETE
54 1-824-192-11 WIRE (FLAT TYPE) (8 CORE)
55 1-773-110-11 WIRE (FLAT TYPE) (19 CORE)
56 3-669-480-11 + PTPWH 2
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 4-244-014-01 LEVER (EJECT)
59 4-244-023-01 SPRING (EJECT), COMPRESSION
60 4-244-012-01 BUTTON (EJECT)
61 4-933-134-11 SCREW (+PTPWH M2.6X8)
62 4-244-530-01 DAMPER
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
#2
#2
not supplied
52
53
54
55
56
57
not supplied
59
58
60
61
62
front panel section-2
51
lid (TC) section
