3131
HCD-CL1/CL3

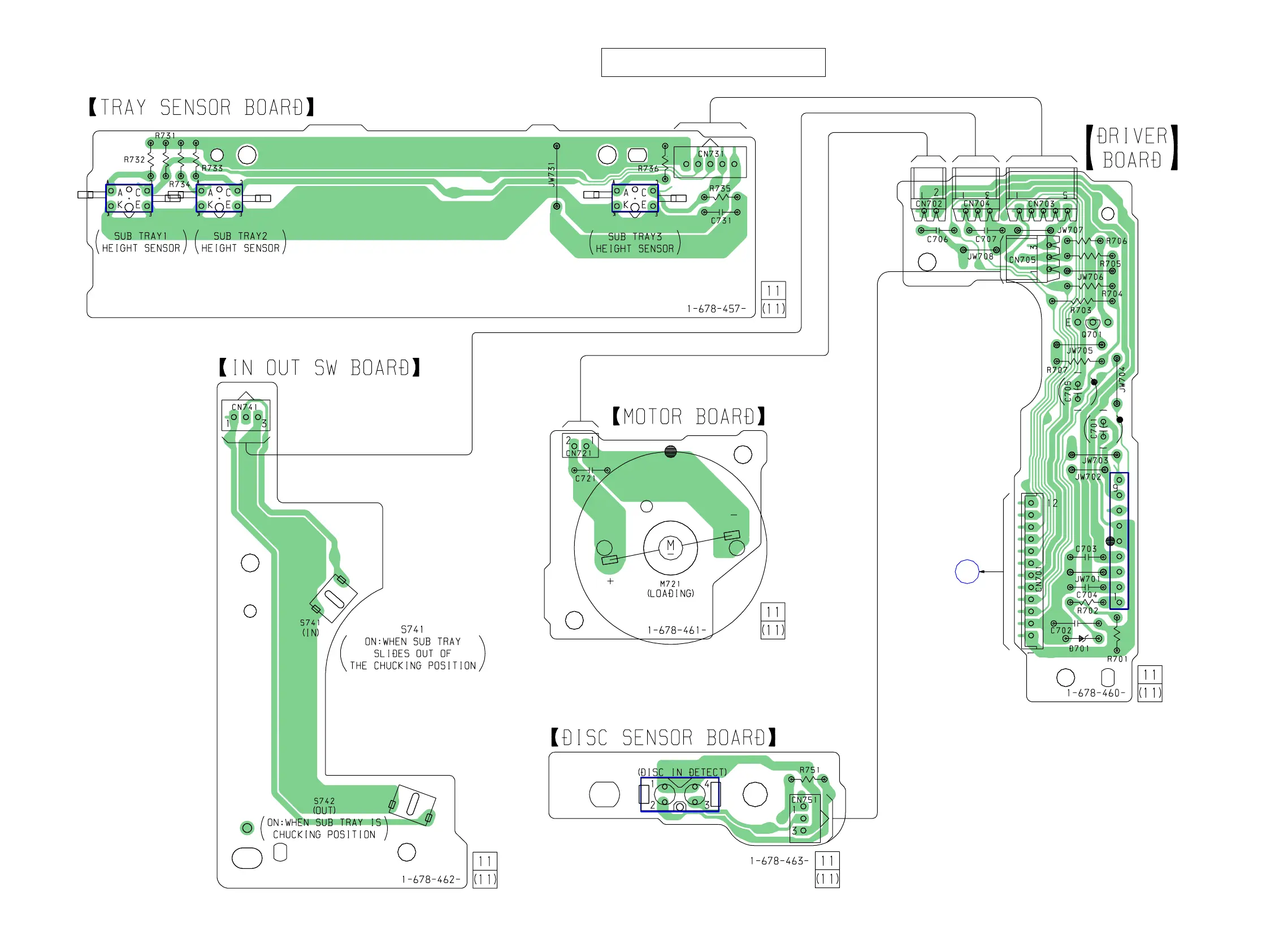

7-9. PRINTED WIRING BOARD DRIVER SECTION
IC731
IC732
IC733
IC751
IC701
TO
MAIN
BOARD
(Page 25)
K
• See page 21 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
