3939
HCD-CL1/CL3

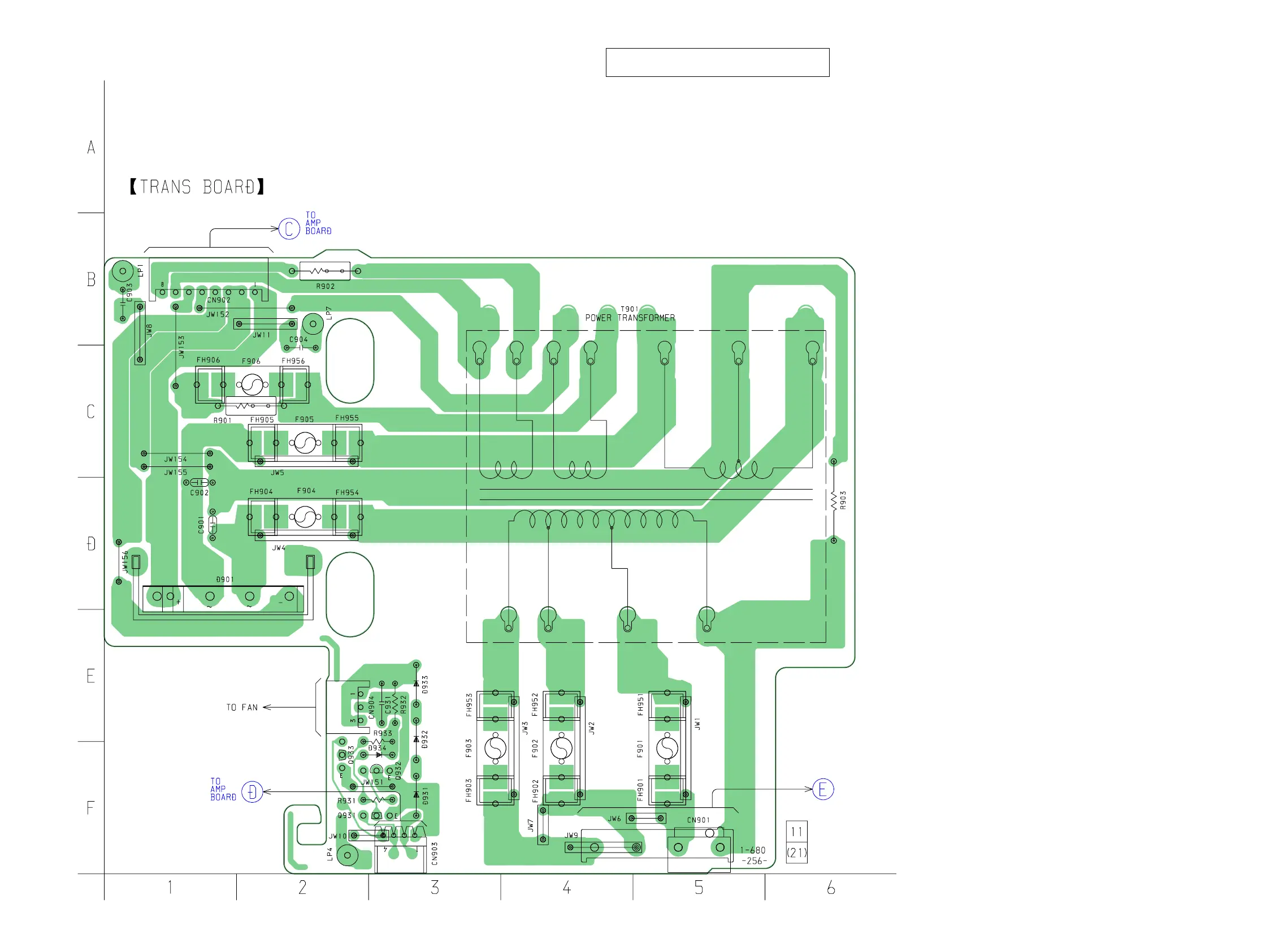

7-17. PRINTED WIRING BOARD TRANS SECTION
(Page 35)
(Page 41)
(Page 35)
TO
SUB POWER BOARD
VOL SEL BOARD
• See page 21 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
