5
STR-DA1200ES

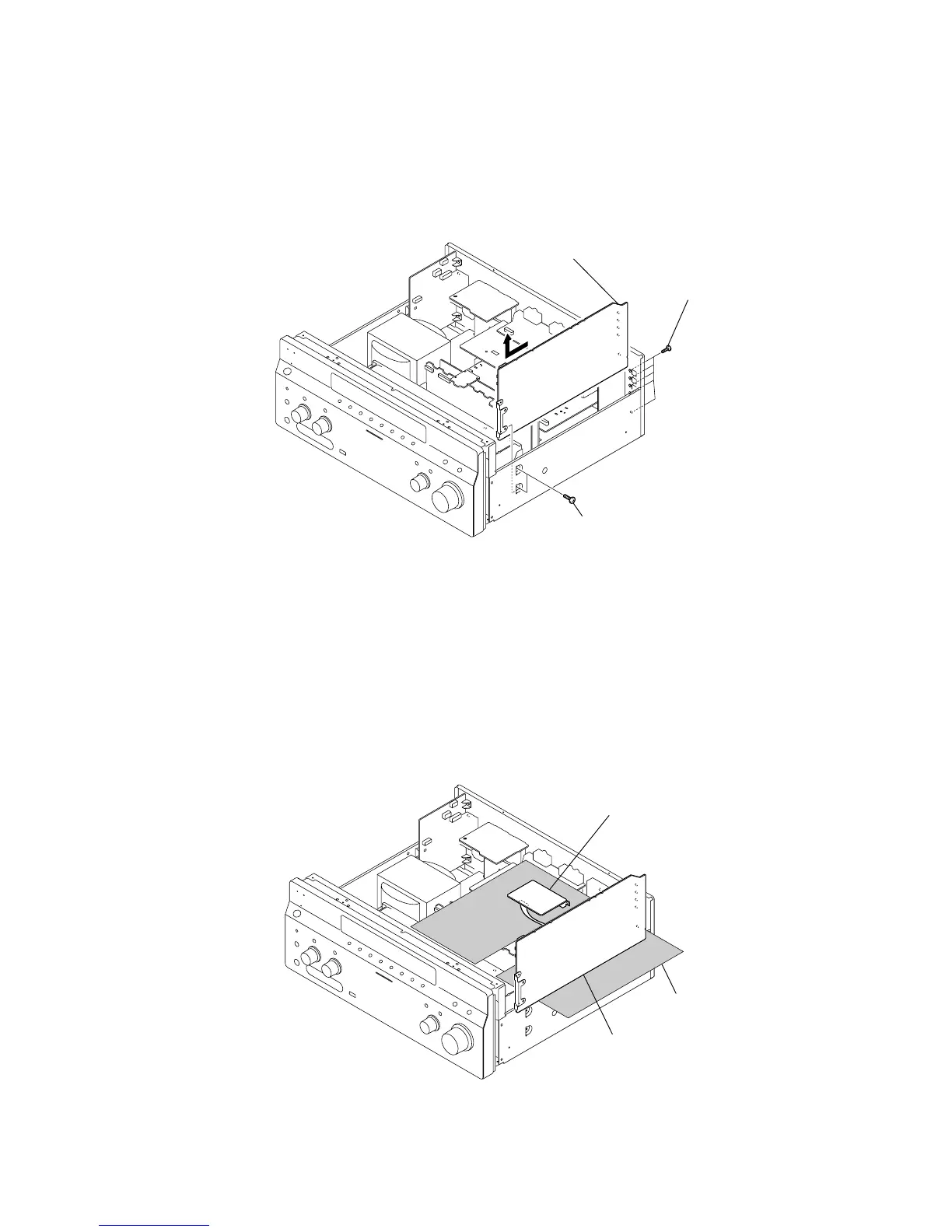

DIGITAL/HDMI SW BOARDS SERVICE POSITION
Note: Follow the disassembly procedure in the numerical order given.
In checking the DIGITAL board, remove the HDMI SW board.
4 DIGITAL board
3
1 five screws
(BVTP3
× 8
)
2 two screws
(BVTP3
× 8)
HDMI SW board
DIGITAL board
insulated shee
t
