STR-DA1200ES
SECTION 7

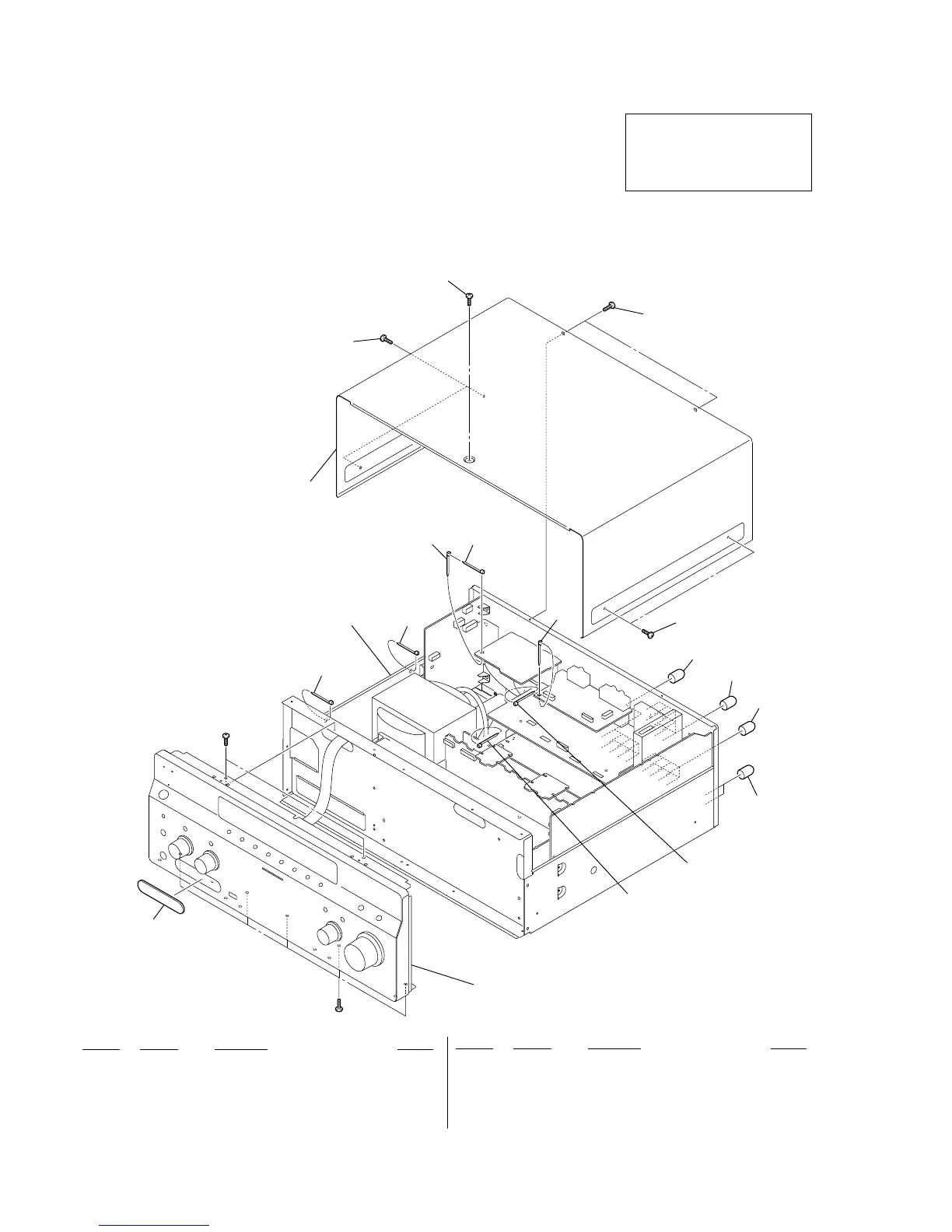

EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-698-310-01 LID (A2) (BLACK)
1 2-698-310-11 LID (A2) (SILVER)
2 2-668-102-11 CASE (BLACK)
2 2-668-102-31 CASE (SILVER)
3 4-227-843-03 SCREW (TP), FLAT HEAD (for BLACK)
3 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER)
4 3-655-653-11 BAND (TAITON), BINDING
5 3-302-708-11 COVER, CONNECTOR
6 3-655-653-21 BAND (TAITON), BINDING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
7-1. CASE SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
#1
VIDEO board block
#1
DISPLAY board block
1
2
3
3
3
3
4
4
4
6
4
6
6
5
5
5
5
