95
STR-DA1200ES

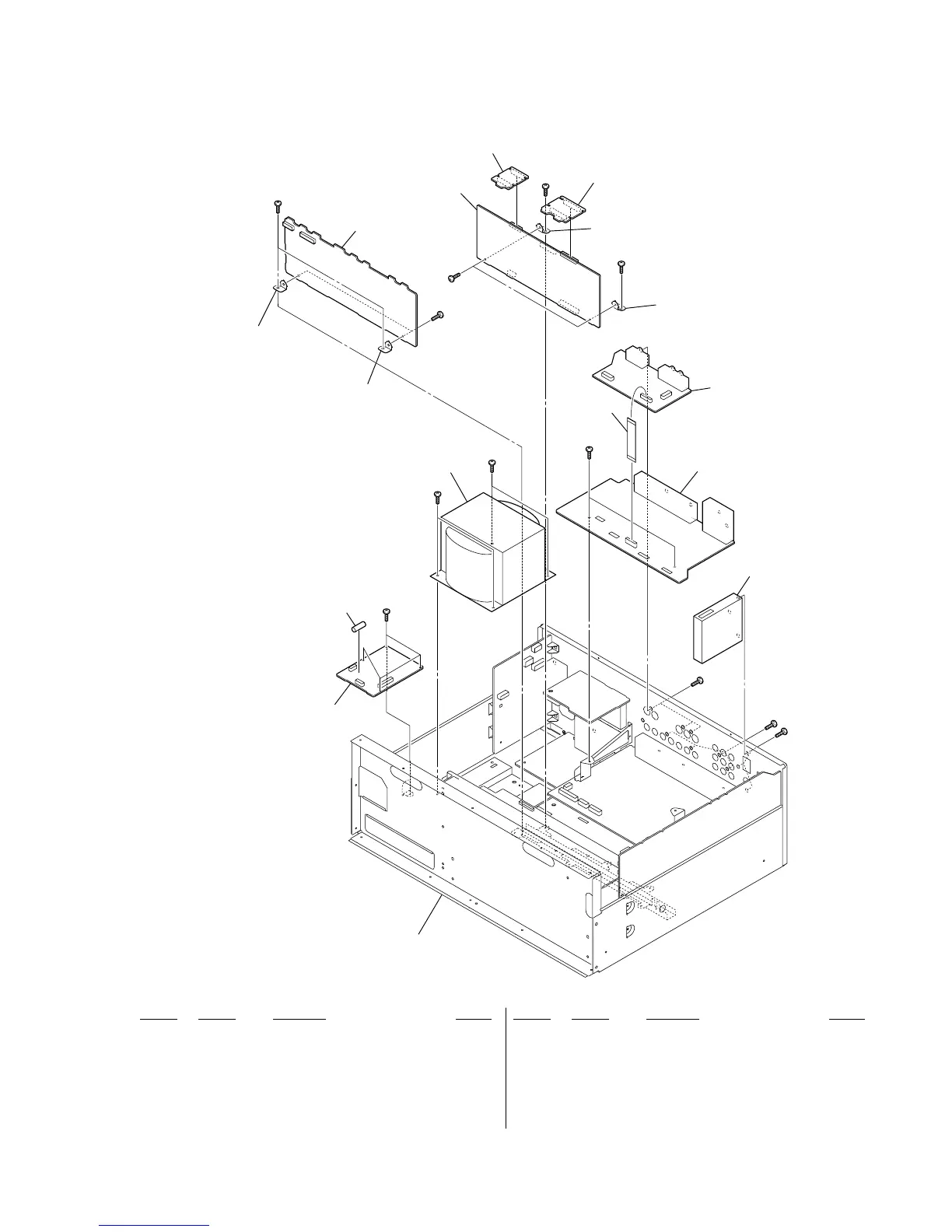

7-4. VIDEO BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 A-1182-296-A DC-DC BOARD, COMPLETE
152 A-1182-299-A A CLASS AMP BOARD, COMPLETE
153 A-1182-340-A E-VOLUME BOARD, COMPLETE
154 1-828-981-51 WIRE (FLAT TYPE) (15 CORE)
155 A-1182-345-A S-VIDEO BOARD, COMPLETE
156 A-1182-344-A VIDEO BOARD, COMPLETE
157 1-693-676-11 TUNER
0F1405 1-532-506-33 FUSE (T6.3AL/250V)
0T01 1-445-044-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
151
152
153
155
154
156
157
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
(CONNECTOR L board)
not supplied
(CONNECTOR R board)
not supplied
not supplied
T01
F1405
ANALOG board block
#2
#2
#1
#1
#1
To Next Page
