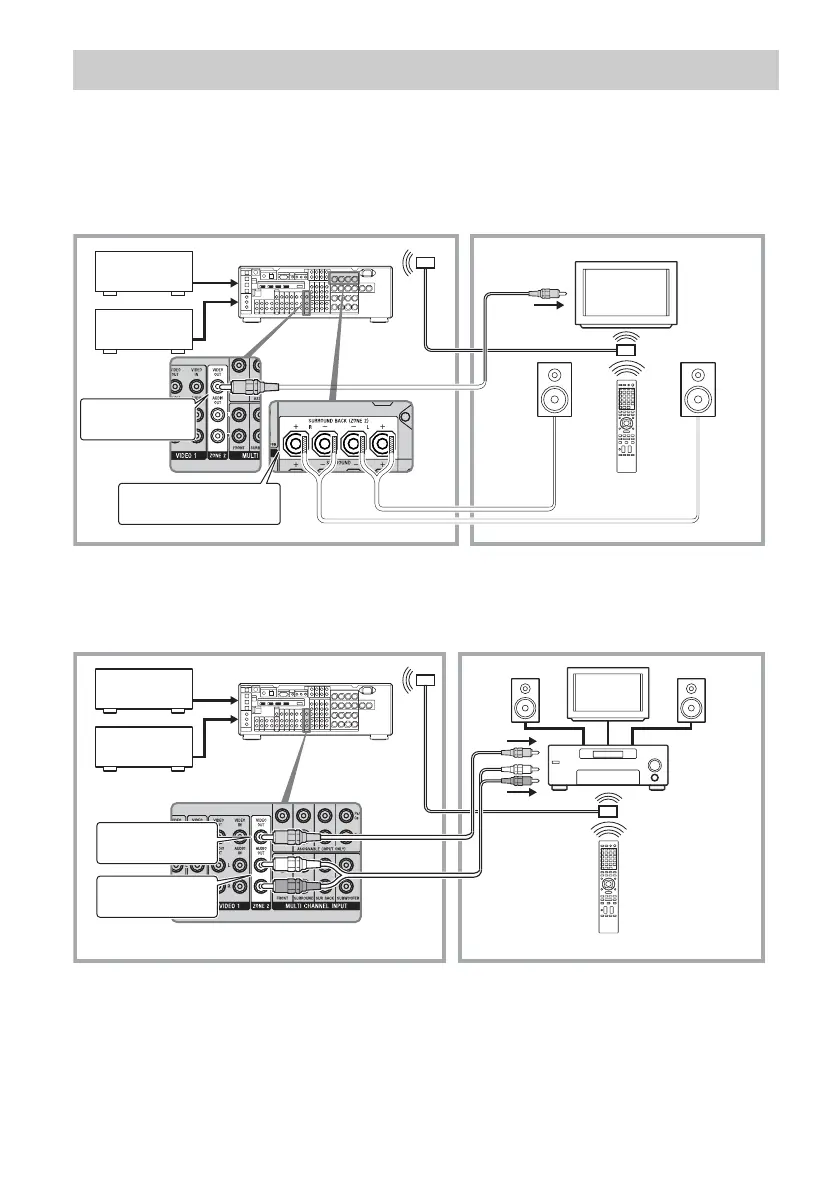

1:Zone 2 connections
1 Outputs sound from speakers in zone 2 using the SPEAKERS
SURROUND BACK terminals of the receiver.
2 Outputs sound from speakers in zone 2 using the receiver and another
amplifier.
Making a multi-zone operation
Main zone Zone 2
TV
A
ZONE 2 VIDEO
OUT
B
D
STR-DA3400ES
D
SURROUND BACK
SPEAKERS
C
RM-AAL017
Main zone Zone 2
ZONE 2 VIDEO
OUT
TV
A
ZONE 2 AUDIO
OUT
B
C
DD
E
STR-DA3400ES
C
A Audio component
B Video component
C IR repeater (not supplied)
D Speakers
E Sony Amplifier/Receiver
RM-AAL017
