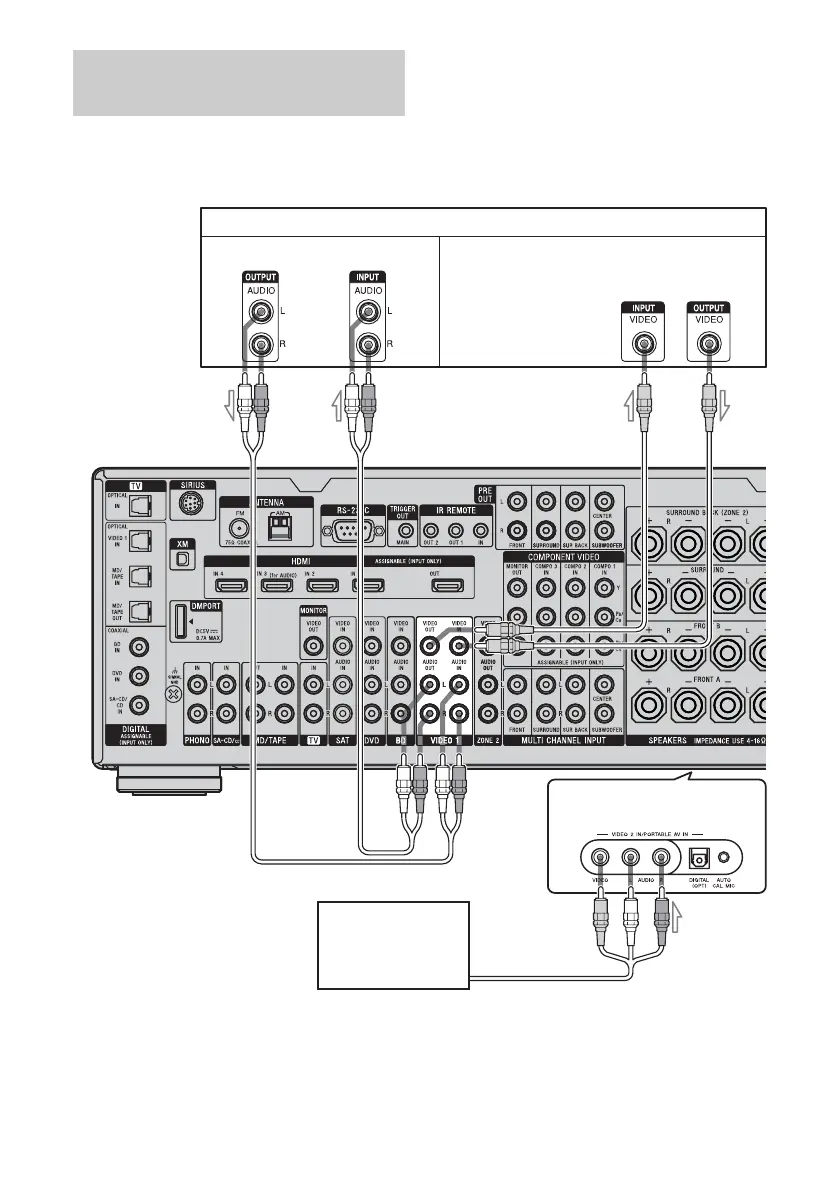

The following illustration shows how to
connect a component which has analog jacks
such as a DVD recorder, VCR, etc.
It is not necessary to connect all the cords.
Connect the audio and video cords according
to the jacks of your components.
Connecting components with
analog video and audio jack
DVD recorder, VCR
A
(On the front panel)
A Audio cord (not supplied)
B Video cord (not supplied)
C Audio/video cord (not supplied)
Audio signals Video signals
Camcorder,
video game
B
C
