54
STR-DA3ES/DA5ES/VA555ES
SECTION 6
EXPLODED VIEWS

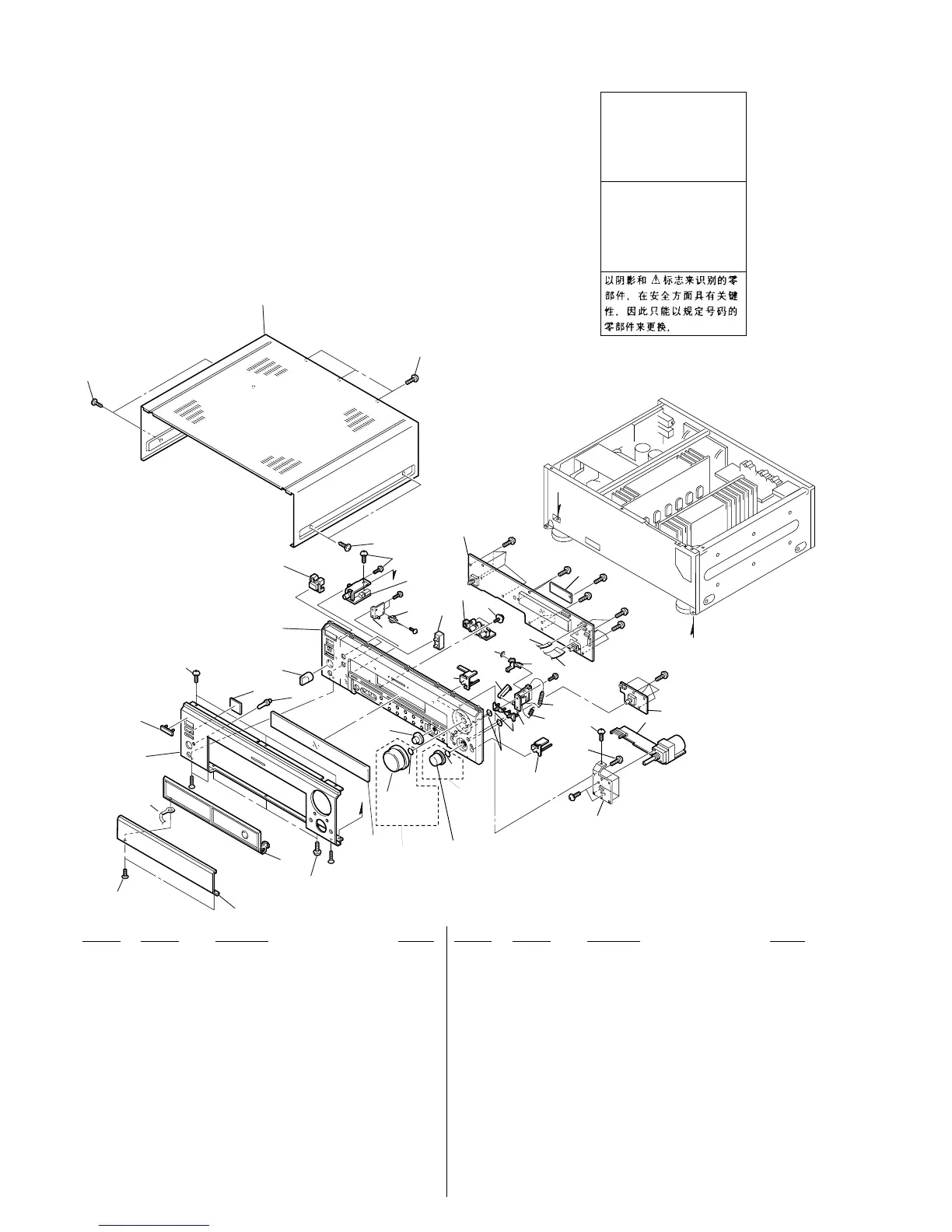

6-1. FRONT PANEL SECTION (1/2)
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
XX
Parts color Cabinets color
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of
this parts list.
• Abbreviation
CND : Canadian model
CH : Chinese model
KR : Korea model
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Les composants identifiés
par une marque 0 sont cri-
tiques pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
41
a
a
#2
#2
#1
#2
#4
#1
#1
not supplied
not supplied
not
supplied
not
supplied
9
19
19
17
7
10
8
6
5
18
11
2
1
12
35
20
29
28
38
30
16
36
36
36
36
36
36
36
36
14
34
39
40
24
25
33
21
32
26
27
15
36
37
13
22
23
31
3
19
42
41
41
b
b
1 X-4951-908-1 KNOB (VOL) ASSY (GOLD)
1 X-4953-180-1 KNOB (V54) ASSY (BLACK)
2 3-350-426-01 SPRING
3 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
5 4-234-166-01 PANEL (DOOR) (BLACK) (DA5ES)
5 4-234-166-11 PANEL (DOOR) (BLACK) (DA3ES)
5 4-234-166-21 PANEL (DOOR) (BLACK) (VA555ES:AEP)
5 4-234-166-31 PANEL (DOOR) (GOLD) (VA555ES:AEP)
5 4-234-166-41 PANEL (DOOR) (GOLD) (VA555ES:CH,KR)
5 4-234-166-51 PANEL (DOOR) (BLACK) (VA555ES:E)
6 4-234-165-01 PANEL (V5), FRONT (DA5ES)
6 4-234-165-11 PANEL (V5), FRONT (DA3ES)
6 4-234-165-21 PANEL (V5), FRONT (VA555ES:AEP,E)
6 4-234-165-31 PANEL (V5), FRONT (VA555ES:AEP,CH,KR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7 X-4953-784-3 BASE (B) ASSY, PANEL (BLACK) (DA5ES)
7 X-4953-785-3 BASE (B) ASSY, PANEL (BLACK) (VA555ES:AEP)
7 X-4953-786-3 BASE (N) ASSY, PANEL (GOLD) (VA555ES:AEP)
7 X-4953-787-3 BASE (N) ASSY, PANEL (GOLD) (VA555ES:CH,KR)
7 X-4953-984-3 BASE (B) ASSY, PANEL (BLACK)
(DA3ES/VA555ES:E)
8 4-228-862-11 WINDOW (IR) (GOLD)
8 4-234-092-01 WINDOW (IR) (BLACK) (DA5ES/VA555ES:AEP,E)
8 4-234-092-11 WINDOW (IR) (BLACK) (DA3ES)
9 4-222-052-71 CASE (GOLD)
9 4-222-052-91 CASE (BLACK)
10 4-233-626-01 KNOB (F14B) (BLACK)
10 4-233-626-11 KNOB (F14B) (GOLD)
To Next Page
