Sony STR-DA3ES - Chassis Section (2;2)

57
STR-DA3ES/DA5ES/VA555ES
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

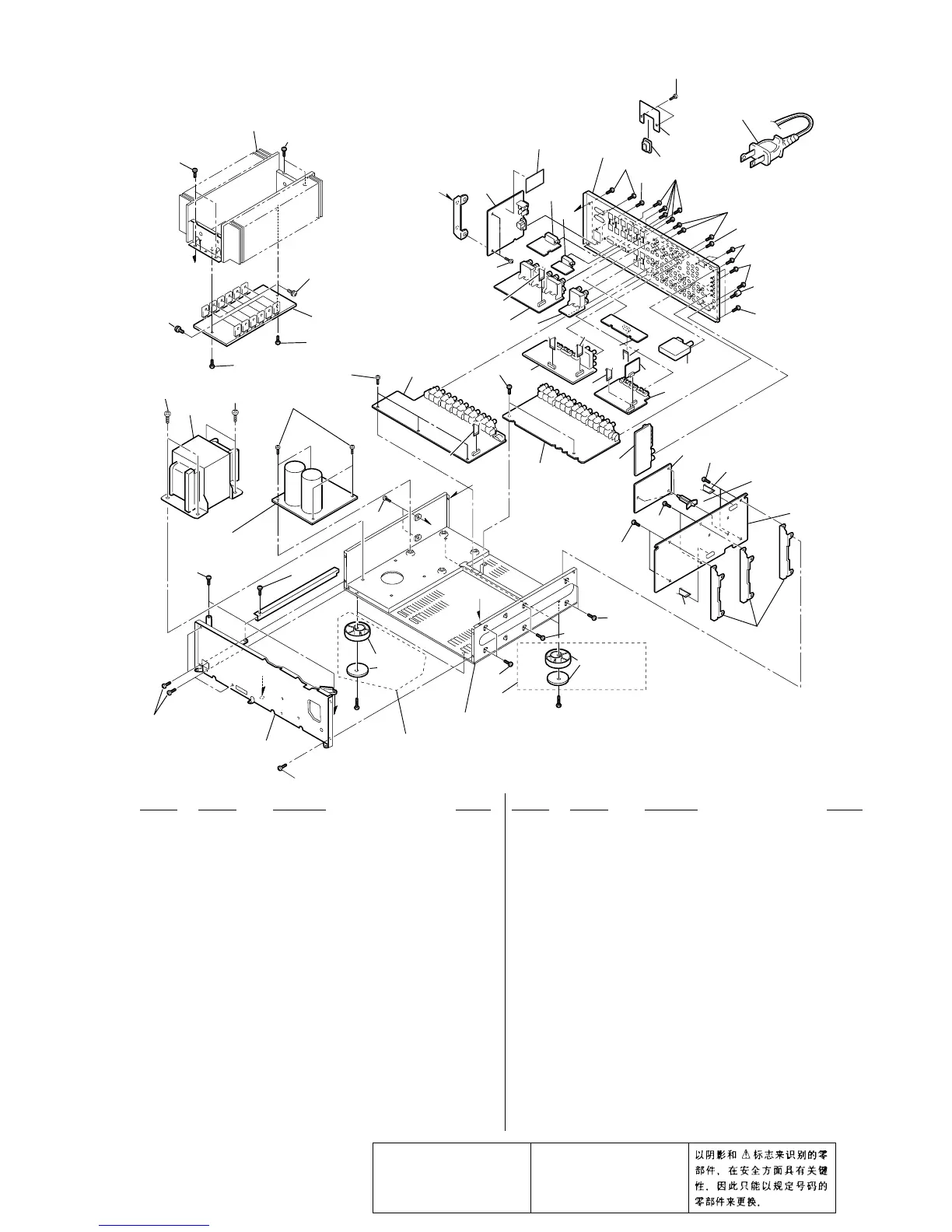

6-4. CHASSIS SECTION (2/2)
68 A-4476-701-A S-VIDEO BOARD, COMPLETE (VA555ES)
69 A-4476-736-A CLOCK BOARD, COMPLETE (VA555ES)
70 A-4476-725-A M-BUS BOARD, COMPLETE (DA3ES,DA5ES)
0 71 1-551-631-22 CORD, POWER (VA555ES:AEP,E)
0 71 1-559-479-11 CORD, POWER (DA3ES)
0 71 1-757-130-11 CORD, POWER (VA555ES:CH)
0 71 1-769-079-21 CORD, POWER (VA555ES:KR)
0 71 1-823-512-11 CORD, POWER (DA5ES,VA555ES:E)
* 73 4-871-306-21 RUBBER (A) (VA555ES:KR)
74 4-947-010-01 SCREW, FEEDER FIXED
75 4-394-596-01 SCREW (M5), TERMINAL
76 4-916-783-01 BUSHING, CORD (DA3ES,VA555ES:KR)
77 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
78 1-769-971-11 WIRE (FLAT TYPE) (13 CORE)
79 1-769-975-11 WIRE (FLAT TYPE) (13 CORE)
80 1-773-011-11 WIRE (FLAT TYPE) (15 CORE) (VA555ES:KR)
80 1-823-582-11 WIRE (FLAT TYPE) (15 CORE)
(EXCEPT VA555ES:KR)
81 1-773-021-11 WIRE (FLAT TYPE) (15 CORE)
82 1-773-141-11 WIRE (FLAT TYPE) (21 CORE)
84 1-769-879-11 WIRE (FLAT TYPE) (7 CORE) (DA3ES,DA5ES)
* 85 4-923-873-01 BRACKET, CORD STOPPER
(DA3ES,VA555ES:KR)
86 4-974-510-11 SCREW (+BV 3X8 CU)
* 87 4-954-051-51 HOLDER, PC BOARD (DA5ES,VA555ES)
* 88 3-703-044-26 LABEL, CAUTION (US,CND)
0 T901 1-437-270-11 TRANSFORMER, POWER (DA5ES:US)
0 T901 1-437-271-11 TRANSFORMER, POWER (DA5ES:CND)
0 T901 1-437-273-11 TRANSFORMER, POWER (VA555ES:AEP,E)
0 T901 1-437-274-11 TRANSFORMER, POWER (VA555ES:CH,KR)
0 T901 1-437-276-11 TRANSFORMER, POWER (DA3ES:US)
0 T901 1-437-277-11 TRANSFORMER, POWER (DA3ES:CND)
TU301 1-693-539-21 TUNER (DA3ES,DA5ES,VA555ES:E)
TU301 1-693-540-21 TUNER (VA555ES:AEP,CH,KR)
#5 7-685-885-09 SCREW +BVTT 4X16 (S)
#6 7-685-659-79 SCREW +BVTT 4X8 TYPE2 IT-3
