Sony STR-DA3ES - Chassis Section (1;2)

56
STR-DA3ES/DA5ES/VA555ES

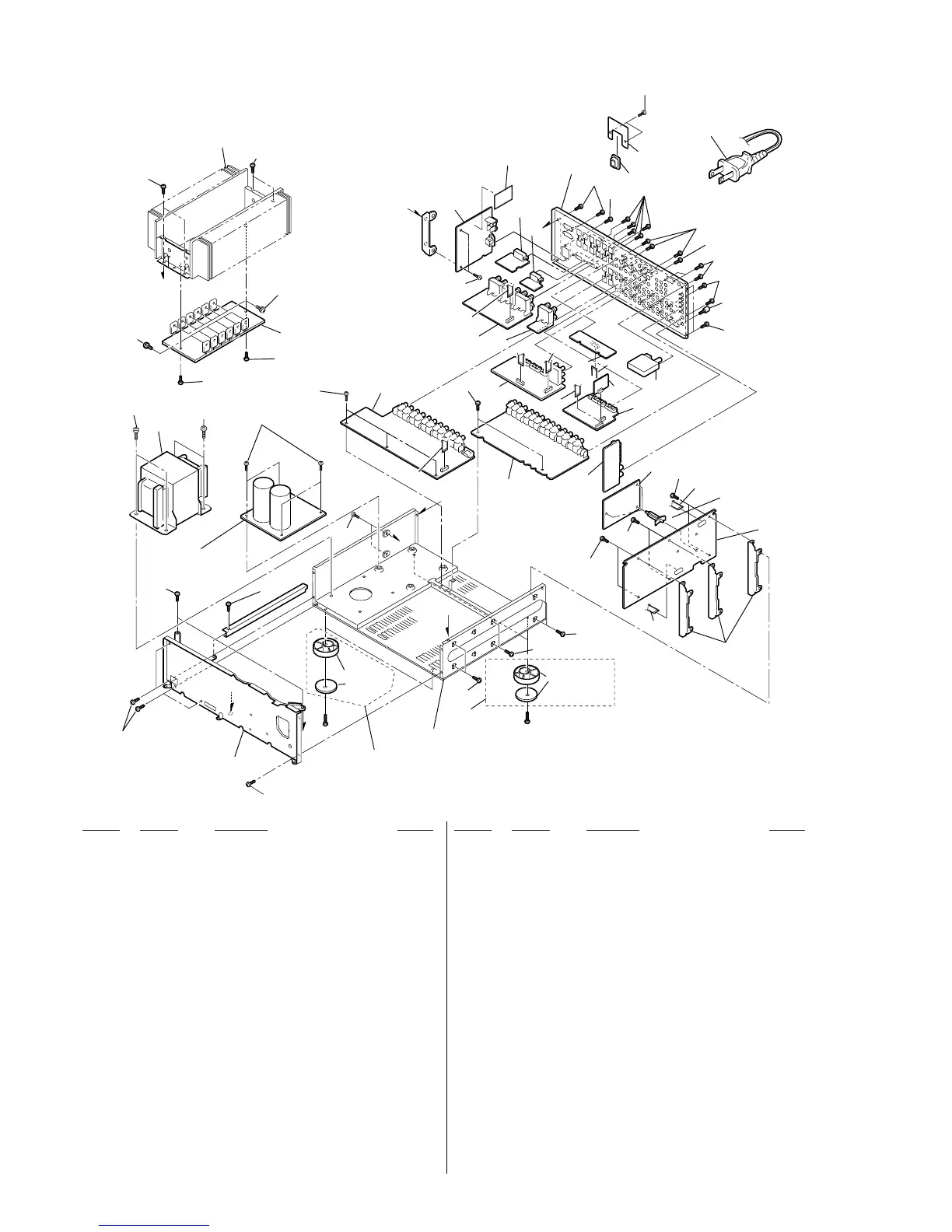

6-3. CHASSIS SECTION (1/2)
b
c
c
d
86
86
86
86
86
86
TU301
86
86
86
86
86
86
86
86
#5
#5
86
86
86
not supplied
T901
56
75
75
56
55
54
86
82
86
86
51
80
67
66
87
65
78
63
64
81
61
62
57
58
59
88
60
79
68
69
70
77
78
84
86
86
74
85
76
71
53
53
not supplied
not supplied
not
supplied
not supplied
not supplied
86
86
86
86
86
d
e
b
e
#6
51 A-4476-738-A DIGITAL BOARD, COMPLETE (DA5ES)
51 A-4476-739-A DIGITAL BOARD, COMPLETE (VA555ES:AEP)
51 A-4476-740-A DIGITAL BOARD, COMPLETE (VA555ES:E)
51 A-4476-741-A DIGITAL BOARD, COMPLETE (VA555ES:CH,KR)
51 A-4476-765-A DIGITAL BOARD, COMPLETE (DA3ES)
53 X-4953-883-1 FOOT ASSY
54 A-4476-674-A DC BOARD, COMPLETE(DA5ES,VA555ES)
54 A-4476-758-A DC BOARD, COMPLETE (DA3ES)
55 A-4476-670-A AMP BOARD, COMPLETE (DA3ES,DA5ES)
55 A-4476-671-A AMP BOARD, COMPLETE (VA555ES)
56 3-905-609-11 SCREW (TRANSISTOR)
57 A-4476-677-A AC BOARD, COMPLETE (DA5ES)
57 A-4476-678-A AC BOARD, COMPLETE (VA555ES:AEP)
57 A-4476-679-A AC BOARD, COMPLETE (VA555ES:CH,KR)
57 A-4476-681-A AC BOARD, COMPLETE (VA555ES:E)
57 A-4476-759-A AC BOARD, COMPLETE (DA3ES)
58 1-681-462-11 VOL SEL BOARD(VA555ES:E)
59 1-681-471-11 4/8 BOARD
60 4-234-163-01 PANEL (V5), BACK (DA5ES:US)
60 4-234-163-11 PANEL (V5), BACK (DA5ES:CND)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
60 4-234-163-21 PANEL (V5), BACK (DA3ES:US)
60 4-234-163-31 PANEL (V5), BACK (DA3ES:CND)
60 4-234-163-41 PANEL (V5), BACK (VA555ES:AEP)
60 4-234-163-51 PANEL (V5), BACK (VA555ES:E)
60 4-234-163-61 PANEL (V5), BACK (VA555ES:CH)
60 4-234-163-71 PANEL (V5), BACK (VA555ES:KR)
61 A-4476-706-A SPTM BOARD, COMPLETE (DA3ES,DA5ES)
61 A-4476-707-A SPTM BOARD, COMPLETE (VA555ES)
62 1-681-474-11 3RD ROOM SPTM BOARD (DA3ES,DA5ES)
63 A-4476-716-A E-VOL BOARD, COMPLETE (DA5ES)
63 A-4476-717-A E-VOL BOARD, COMPLETE (VA555ES)
63 A-4476-761-A E-VOL BOARD, COMPLETE (DA3ES)
64 A-4476-686-A C-VIDEO BOARD, COMPLETE)
65 A-4476-720-A INPUT BOARD, COMPLETE (DA5ES)
65 A-4476-721-A INPUT BOARD, COMPLETE (VA555ES)
65 A-4476-762-A INPUT BOARD, COMPLETE (DA3ES)
66 A-4476-710-A DIGTAL INPUT BOARD, COMPLETE
67 A-4727-021-A SUB DSP BOARD, COMPLETE (DA5ES,VA555ES)
68 A-4476-700-A S-VIDEO BOARD, COMPLETE (DA3ES,DA5ES)
