Sony STR-DA3ES - Front Panel Section (2;2)

55
STR-DA3ES/DA5ES/VA555ES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
28 X-4952-962-1 BRACKET (DR) ASSY
29 4-228-850-01 BUTTON (F)
30 4-228-849-01 BUTTON (E) (BLACK)
30 4-228-849-11 BUTTON (E) (GOLD)
31 4-228-848-01 BUTTON (D) (BLACK)
31 4-228-848-11 BUTTON (D) (GOLD)
32 1-681-467-11 VIDEO 3 BOARD
33 1-773-162-11 WIRE (FLAT TYPE) (21 CORE)
34 1-773-021-11 WIRE (FLAT TYPE) (15 CORE)
35 4-234-224-01 PLATE (B), INDICATION (BLACK)
35 4-234-225-01 PLATE (M), INDICATION (GOLD)
36 4-951-620-01 SCREW (2.6X8), +BVTP
37 4-933-134-11 SCREW (+PTPWH M2.6X8)
38 4-228-856-01 PLATE (BUTTON F), SHADING
39 1-681-472-11 LED BOARD
40 X-4953-779-1 BUTTON (G) (B) ASSY (BLACK)
40 X-4953-780-1 BUTTON (G) (N) ASSY (GOLD)
41 3-704-515-21 SCREW (BV/RING)
42 X-4950-462-1 LENS ASSY, LED (DA3ES, DA5ES)
#1 7-685-234-19 SCREW +KTP 2.6X8 TYPE2NON-SLIT
#2 7-685-536-19 SCREW +BTP 2.6X12 TYPE2 N-S
#4 7-685-853-04 SCREW +BVTT 2X6 (S)

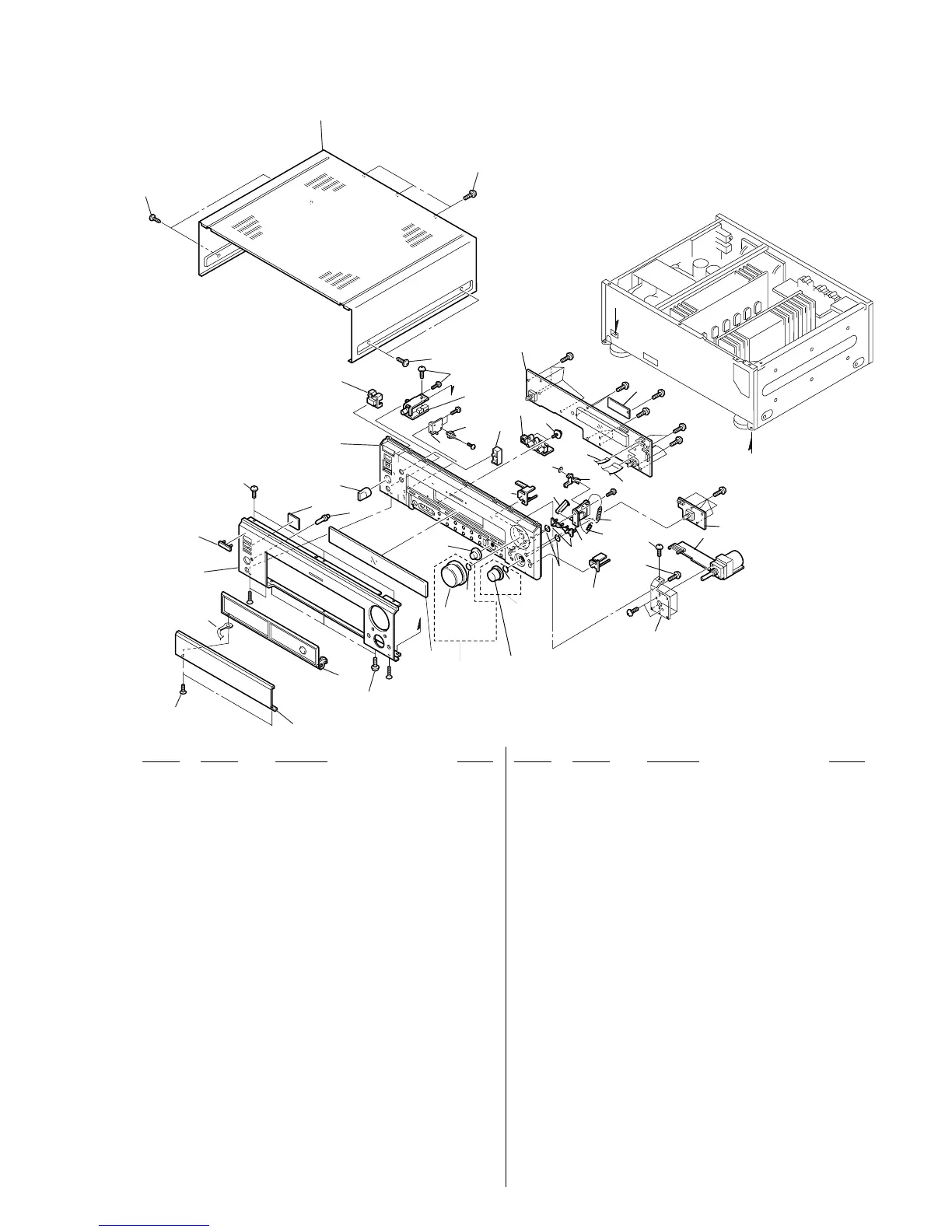

6-2. FRONT PANEL SECTION (2/2)
11 4-228-859-01 KNOB (JOG) (BLACK)
11 4-228-859-11 KNOB (JOG) (GOLD)
12 X-4951-912-1 KNOB (BAL) ASSY (BLACK)
12 X-4951-913-1 KNOB (BAL) ASSY (GOLD)
13 A-4476-692-A DISPLAY BOARD, COMPLETE (DA5ES)
13 A-4476-693-A DISPLAY BOARD, COMPLETE (VA555ES)
13 A-4476-760-A DISPLAY BOARD, COMPLETE (DA3ES)
14 1-681-466-11 FUNCTION BOARD
15 1-681-470-11 HP BOARD
16 1-681-468-11 M-VOL BOARD
17 4-998-592-01 BUTTON (POWER) (BLACK)
17 4-998-592-12 BUTTON (POWER) (GOLD)
18 4-228-839-01 DOOR (BASE) (BLACK)
18 4-228-839-11 DOOR (BASE) (GOLD)
19 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)
19 4-227-843-11 SCREW (TP), FLAT HEAD (GOLD)
20 3-703-466-00 SPRING (6600)
21 3-167-330-01 WASHER
22 4-228-857-01 ARM, DOOR LOCK
23 4-228-858-01 ARM
24 4-228-860-01 SPRING, TENSION
25 4-228-861-01 SPRING, TENSION
26 3-973-975-31 DAMPER, OIL
27 X-4952-961-1 BRACKET (DL) ASSY
