9
STR-DA3ES/DA5ES/VA555ES

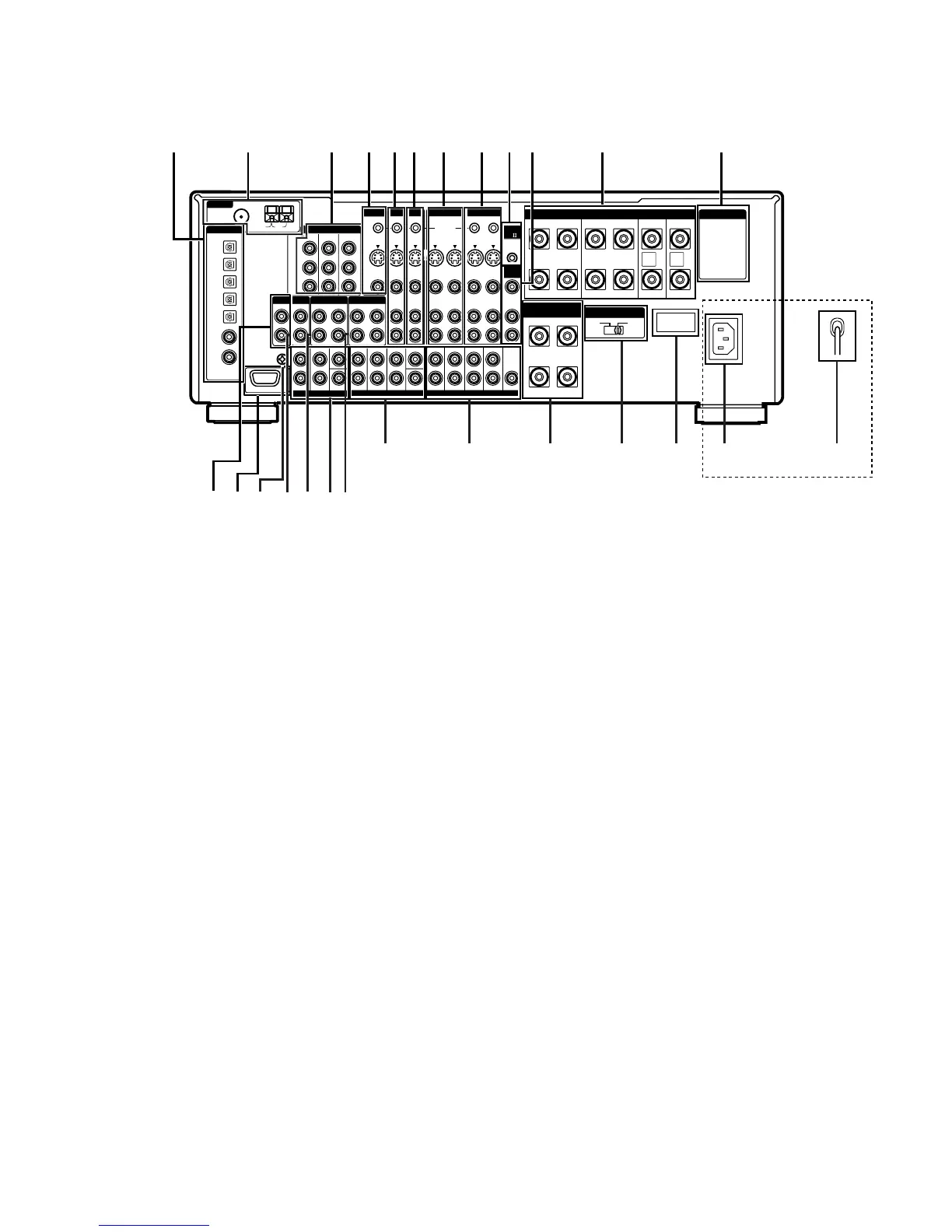

REAR PANEL
AC OUTLET
LRLR
+
–
+
–
FRONT SURROUND CENTER SURR BACK
LRLR
FRONT SURROUND CENTER SURR BACK
LR
+
–
LR
SPEAKERS
SPEAKERS
3RD ROOM
IMPEDANCE USE 4-16
IMPEDANCE SELECTOR
4 8
SURR
BACK
R
SURR
BACK
L
MD/DAT TAPE
IN
PHONO
IN OUT IN OUT IN OUT IN OUT IN
OUT IN OUT IN
SIGNAL GND
FRONT SURROUND CENTER
SUB WOOFERSUB WOOFER
L
R
AUDIO
IN
VIDEO
IN
VIDEO
IN
VIDEO VIDEO
OUT IN OUT IN
S2 VIDEO
IN
S2 VIDEO
IN
S2 VIDEO S2 VIDEO
AUDIO
IN
AUDIO AUDIO
MULTI CHANNEL INPUT 1 MULTI CHANNEL INPUT 2
FRONT SURROUND SURR BACK CENTER
SUB WOOFER
VIDEO
OUT
S2 VIDEO
OUT
VIDEO OUT
AUDIO
OUT
PRE OUT
FRONT SURROUND SURR BACK CENTER
TV/SAT IN DVD/LD IN MONITOR OUT
COMPONENT VIDEO
Y
P
B /B-Y
P
R /R-Y
75 COAXIAL
FM
AM
CTRL
A1
ANTENNA
2ND
ROOM
RS232C
CD /SACD
ND/DAT
OPTICAL
OUT
MD/DAT
OPTICAL
IN
TV/SAT
OPTICAL
IN
DVD/LD
OPTICAL
IN
CD /SACD
COAXIAL
IN
DVD/LD
COAXIAL
IN
CD /SACD
OPTICAL
IN
DIGITAL
ASSIGNABLE
OUTOUTIN STATUS IN
CONTROL S
TV/SAT DVD/LD VIDEO 2 VIDEO 1
MONITOR
wgwf wdws w;
ql
wh
1 234567890qa qs
wa
qk qj qh qg qf qd
1 DIGITAL jack
OPTICAL CD/SACD IN
MD/DAT OUT
MD/DAT IN
TV/SAT IN
DVD/LD IN
COAXIAL CD/SACD IN
DVD/LD IN
2 ANTENNA terminal
AM
FM
3 COMPONENT VIDEO jack
TV/SAT IN: Y,CB/B-Y,CR/R-Y
DVD/LD IN: Y,CB/B-Y,CR/R-Y
MONITOR OUT: Y,CB/B-Y,CR/R-Y
4 MONITOR jack
CONTROL S IN (DA3ES, DA5ES model)
S2 VIDEO OUT
VIDEO OUT
5 TV/SAT jack
CONTROL S STATAS IN (DA3ES, DA5ES model)
S2 VIDEO IN
AUDIO IN
6 DVD/LD jack
CONTROL S OUT (DA3ES, DA5ES model)
S2 VIDEO IN
VIDEO IN
AUDIO IN
7 VIDEO 2 jack
S2 VIDEO IN/OUT
VIDEO IN/OUT
AUDIO IN OUT
8 VIDEO 1 jack
CONTROL S IN/OUT
S2 VIDEO IN/OUT
VIDEO IN/OUT
AUDIO IN/OUT
9 CONTROL A1II jack
0 2ND ROOM jack
VIDEO OUT
AUDIO OUT
qa SPEAKERS terminal
FRONT
SURROUND
CENTER
SURR BACK
qs AC OUTLET
qd AC power cord (DA3ES model)
qf AC INLET (DA5ES,VA555ES model)
qg VOLTAGE SELECTOR switch (VA555ES: E model)
qh IMPEDANCE SELECTOR switch
qj SPEAKERS 3RD ROOM terminal (DA3ES, DA5ES model)
qk PRE OUT jack
FRONT
SURROUND
SURR BACK
SUB WOOFER
CENTER
ql MULTI CHANNEL INPUT 1 jack
FRONT
SURROUND
SURR BACK
CENTER
w; TAPE jack
IN/OUT
wa MULTI CHANNEL INPUT 2 jack
FRONT
SURROUND
CENTER
SUB WOOFER
ws MD/DAT jack
IN/OUT
wd CD/SACD IN jack
wf SIGNAL GND
wg RS232C connector
wh PHONO IN jack
