Getting Started
11
GB
2 Connect the video jacks.
(Except for models of area code CEL, CEK)

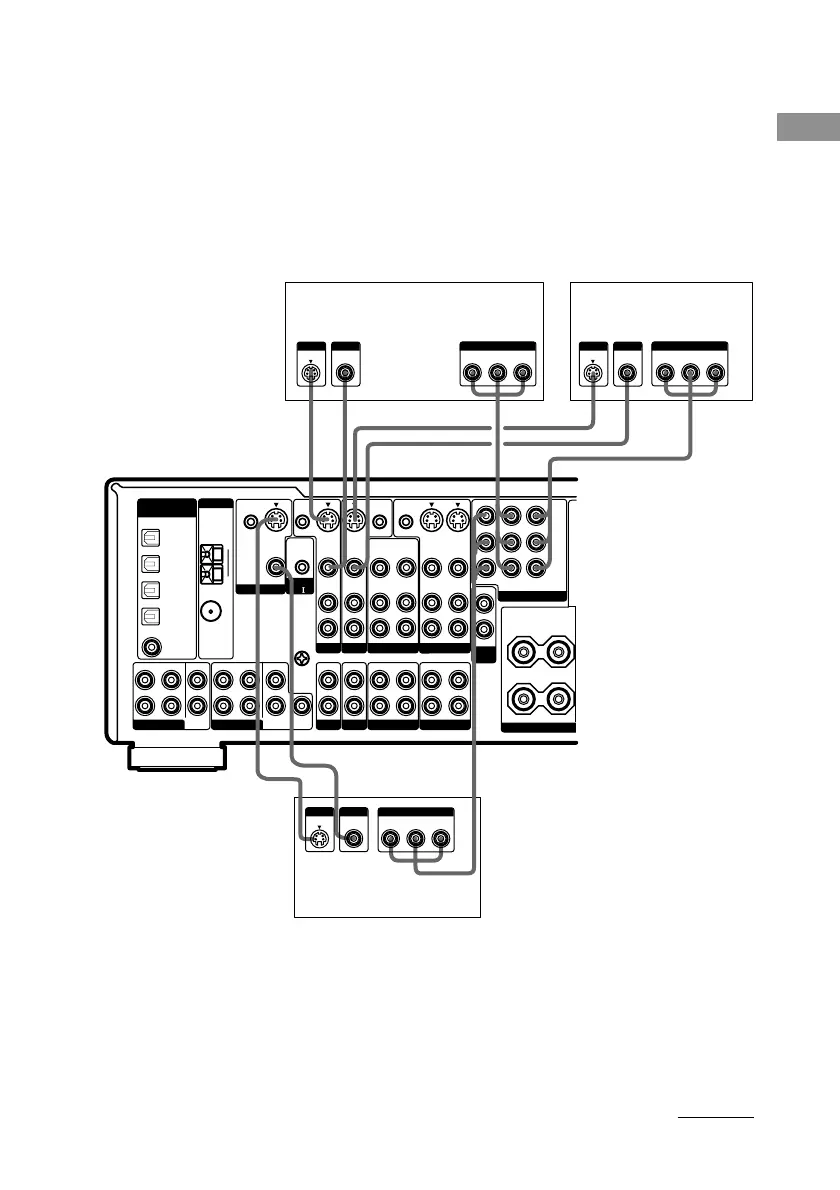

The following illustration shows how to connect a TV or satellite tuner and a DVD/LD player with
COMPONENT VIDEO (Y, B-Y, R-Y) output jacks. Connecting a TV with component video input
jacks allows you to enjoy higher quality video.
Notes
• On this receiver, the component video signals cannot be converted to S-video or standard video signals (or vice
versa).
• The on-screen display will not appear on a TV connected to the COMPONENT VIDEO MONITOR OUT jacks
even if you press ON SCREEN.
DVD/LD playerSatellite tuner
TV monitor
PHONO CD/SACD MD/DAT TAPE
SPEA
IN IN OUT IN
MULTI CH IN 2
OUT
OUT
VARIABLE
IN
SIGNAL
GND
U
CONTROL
A1
FRONT SURROUND CENTER
2ND
ROOM
SUB
WOOFER
L
R
L
R
L
R
L
R
MONITOR OUT TV/SAT
IN
DVD/LD
IN
MONITOR
AUDIO
IN
IN
VIDEO
CTRL S
OUT
OUT
VIDEO
CTRL S
OUT
CTRL S
STATUS IN
CTRL S
IN
AUDIO
OUT
VIDEO 1
AUDIO
IN
TV/SAT
AUDIO
IN
DVD/LD
COMPONENT VIDEO
AUDIO
IN
AUDIO
OUT
VIDEO 2
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
IN
VIDEO
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
MULTI CH IN 1
FRONT SURROUND CENTER
SURROUND
BACK
SUB
WOOFER
DIGITAL
(ASSIGNABLE)
ANTENNA
MD/DAT
OPTICAL
IN
TV/SAT
OPTICAL
IN
DVD/LD
OPTICAL
IN
FM
75
Ω
COAXIAL
DVD/LD
COAXIAL
IN
MD/DAT
OPTICAL
OUT
AM
U
Y
P
B /C B
/B-Y
P
R /C R
/R-Y
IMPEDANCE
+
–
SURROUND
H
HCDCD
B-Y
COMPONENT
Y
R-Y
OUTPUT OUTPUT
B-Y
COMPONENT
Y
R-Y
INPUT
H
B-Y
COMPONENT
Y
R-Y
DC
VIDEO
INPUT
S VIDEO
INPUT
S VIDEO
OUTPUT
VIDEO
OUTPUT
S VIDEO
OUTPUT
VIDEO
OUTPUT
continued
Tip
When the component is equipped with S-video jacks, you can connect the component to the S-VIDEO jacks on
this receiver. In addition, this receiver can convert standard video signals to S-video signals for output from the
MONITOR OUT (S-VIDEO) jacks (models of area code U, CA only).
Note
You can listen to the sound of your TV by connecting your TV’s audio output jacks to the TV/SAT AUDIO IN
jacks on the receiver. In this case, do not connect the TV’s video output jack to the TV/SAT VIDEO IN jack on
the receiver. If you connect a separate satellite tuner, etc., connect both the audio and video output jacks to the
receiver as shown above.
