6
GB

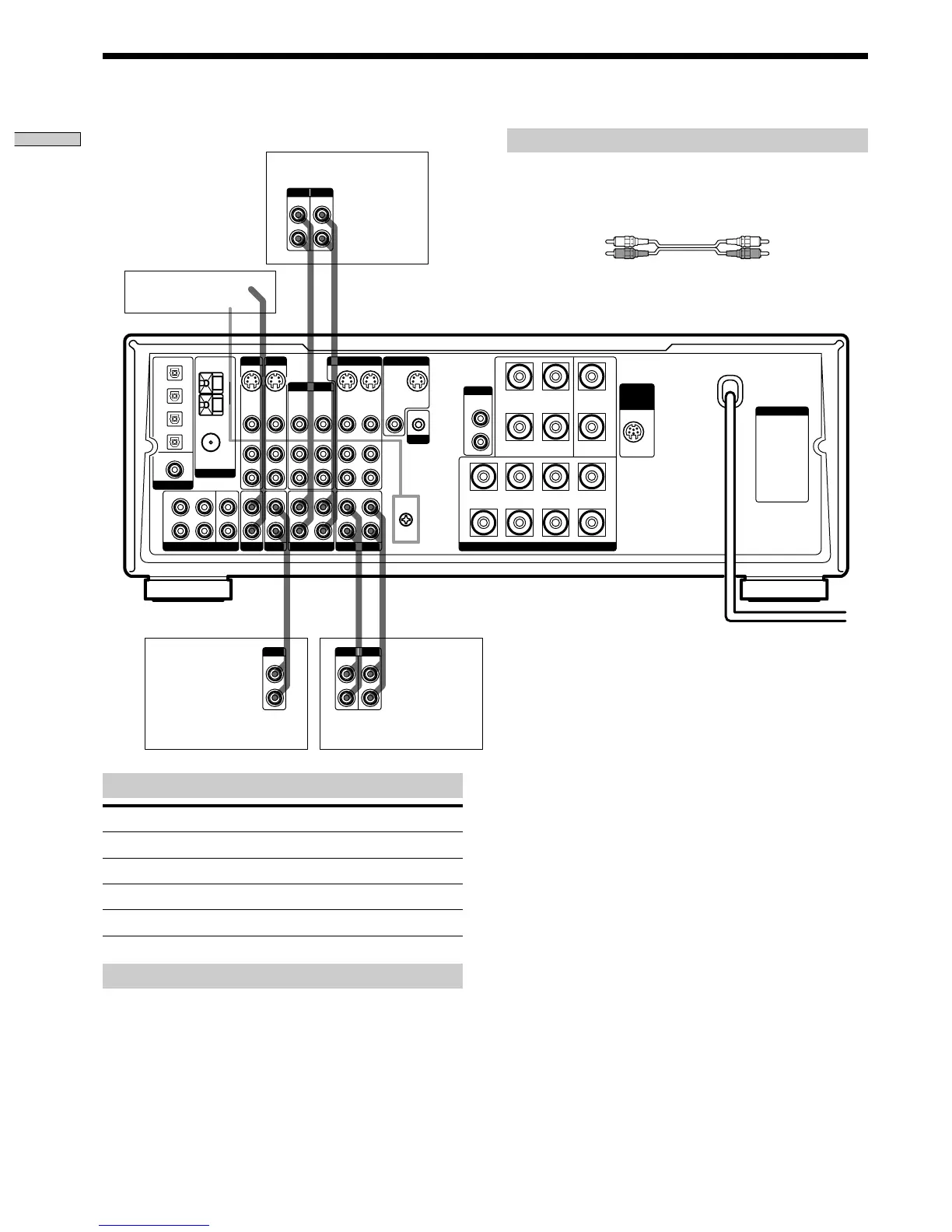

Hooking Up the Components
Jacks for connecting audio components
Connect a To the
Turntable PHONO jacks
CD player CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
SIGNAL GND y terminal on the receiver.
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
Audio Component Hookups
Turntable
Tape deck
MD/DAT deck
CD player
White (L) White (L)
Red (R) Red (R)
IN OUT
IN OUT
WIRELESS
REAR
SPEAKER
+
+
+–
–
+
–
–
A
R
RL
L
B
A
B
SPEAKERS
FRONT
REAR CENTER
WOOFER
AUDIO
OUT
OUT
VIDEO
S-VIDEO
OUT
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
IN
VIDEO
OPT DVD IN
OUT
VIDEO
S-VIDEO
IN
VIDEO
IN
L
R
L
R
RECOUT
SIGNAL
GND
AM
AUDIO
IN
L
R
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
CTRL A1
y
y
ANTENNA
TAPE
MONITOR
VIDEO 1
VIDEO 2
TV/LD DVD
S-LINK
S-VIDEO
IN
VIDEO
AUDIO
IN
AC OUTLET
IN
PHONO
IN
CD
INRECOUT
MD/DAT
FRONT
5.1 INPUT
REAR CENTER
WOOFER
FM
75Ω
COAXIAL
DIGITAL
OPT TV/LD IN
OPT MD/DAT IN
OPT MD/DAT OUT
DVD IN
COAX
LINE
L
R
LINE
INPUT OUTPUT
LINE
L
R
LINE
INPUT OUTPUT
LINE
L
R
OUTPUT
ç
ç
ç
ç
To Next Page
