Sony STR-DE335 - Printed Wiring Board - PANEL Section

STR-DE335/SE391/V323
– 33 – – 34 –

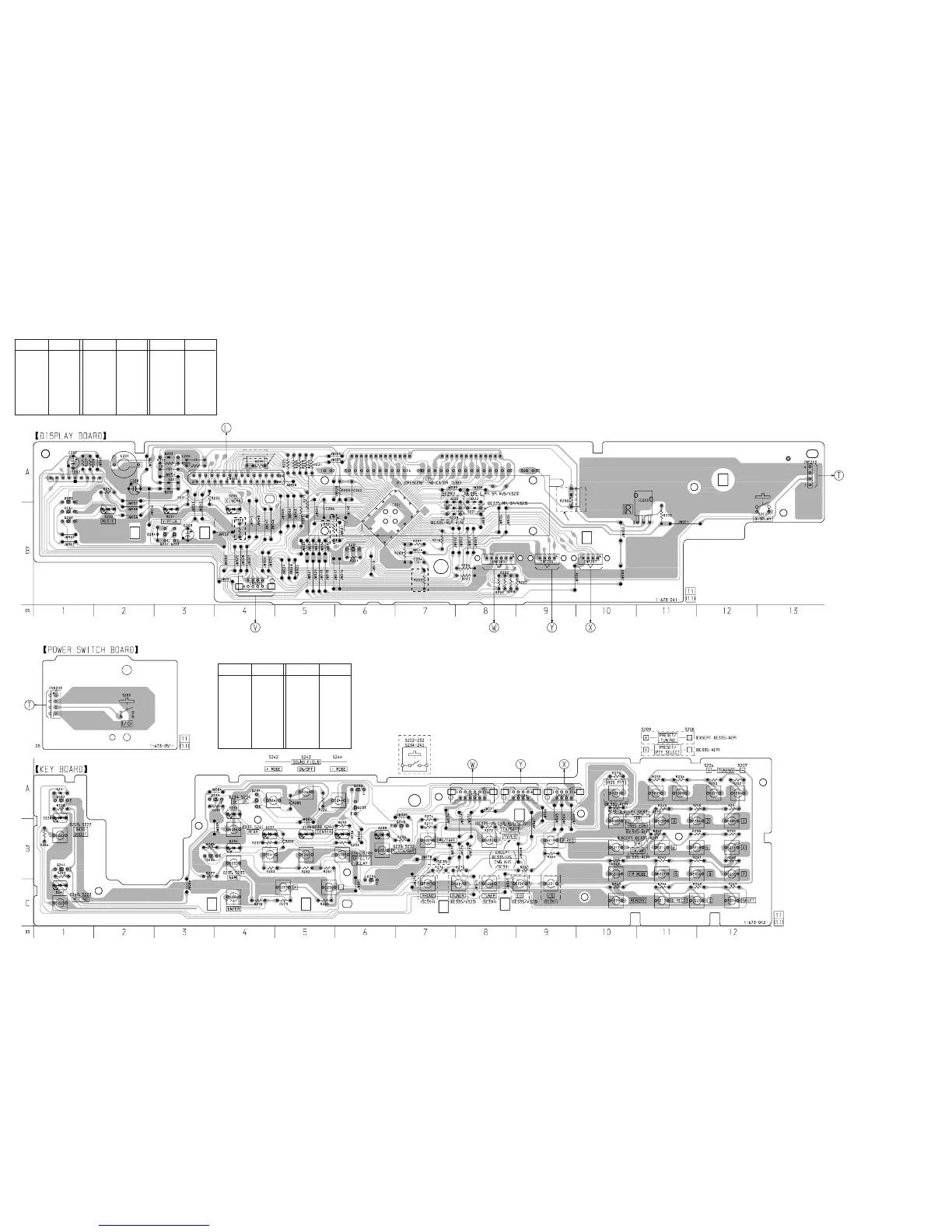

5-11. PRINTED WIRING BOARD – PANEL Section – • See page 19 for Circuit Boards Location.
(DE335:MY,SP,AUS/V323)
(EXCEPT DE335:MY,SP,AUS/V323)
EXCEPT
DE335:AEP
EXCEPT
DE335:AEP
(EXCEPT DE335:AEP)
(EXCEPT DE335:MY,SP,AUS/V323)
(DE335:MY,SP,AUS/V323)
• Semiconductor
Location
Q233 A-6
Q234 A-4
Q235 B-3
Q236 C-6
Q237 A-4
Q239 A-6
Q240 B-7
Q241 B-1
Q242 A-1
Ref. No. Location
Ref. No. Location
D228 A-1
D233 B-5
D234 A-4
D235 B-4
D236 B-6
D237 B-4
D239 B-6
D240 C-1
D241 A-1
• Semiconductor
Location
D225 A-7
D230 B-4
D231 B-3
D232 B-2
IC201 B-6
IC202 A-1
IC203 B-11
Ref. No. Location
Ref. No. Location
D201 A-3
D202 A-3
D203 A-3
D204 B-3
D221 B-8
D222 A-8
D223 B-7
D224 B-7
Ref. No. Location
Q201 B-3
Q202 B-3
Q230 A-1
Q231 B-1
Q232 B-1
(Page 21)
(Page 37)
(Page 33)
(Page 34)
