SECTION 2
GENERAL
1 I/u button
2 TUNING +, – buttons
3 DISPLAY button
4 PRESET/TUNING +, – buttons
(EXCEPT AEP model)
PRESET/PTY SELECT +, – buttons
(AEP model)
5 RDS PTY button (AEP model)
6 AM button (EXCEPT AEP models)
RDS EON button (AEP model)
7 FM button (EXCEPT AEP models)
FM/AM button (AEP model)
8 VIDEO button
9 TV/SAT button
(US, Canadian, Australian models)
TV/LD button
(AEP, E, Malaysia, Singapore,
Chinese models)

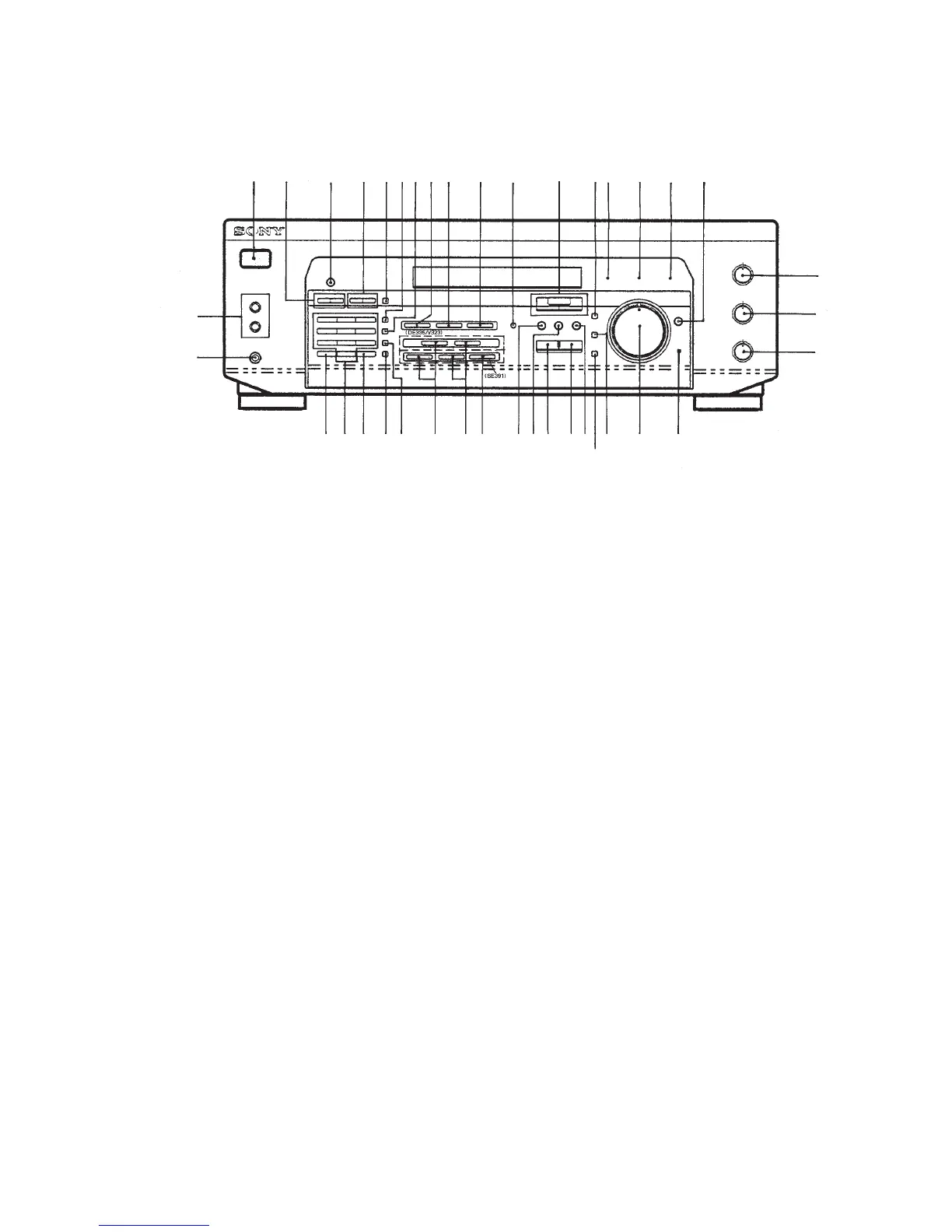

Location of controls
– Front view –
0 MD/TAPE button
!¡ 5.1 CH/DVD button and indicator
!™ SOUND FIELD + MODE, ON/OFF,
– MODE buttons
!£ SET UP button and indicator
!¢ CINEMA indicator
!∞ VIRTUAL indicator
!§ MUSIC indicator
!¶ BASS BOOST button and indicator
!• SPEAKERS A, B ON/OFF buttons
!ª PHONES jack
@º SHIFT button
@¡ Numeric buttons
@™ DIRECT button
@£ MEMORY button
@¢ FM MODE button
@∞ CD button
@§ TUNER button
@¶ PHONO button (SE391)
@• EFFECT/DELAY button and indicator
@ª CENTER button and indicator
#º – button
#¡ + button
#™ REAR button and indicator
#£ ENTER button
#¢ NAME button and indicator
#∞ VOLUME control
#§ MUTING button and indicator
#¶ TREBLE control
#• BASS control
#ª BALANCE control
3
4
5
12
67
!∞
8
9
0
!¡
!™
!£!¢
!§
!¶
!•
!ª
@º @¡ @™ @£
#¶
#•
#ª
@¢ @∞
@§
@¶
@•@ª
#º
#¡
#™
#¢
#∞
#§
#£
