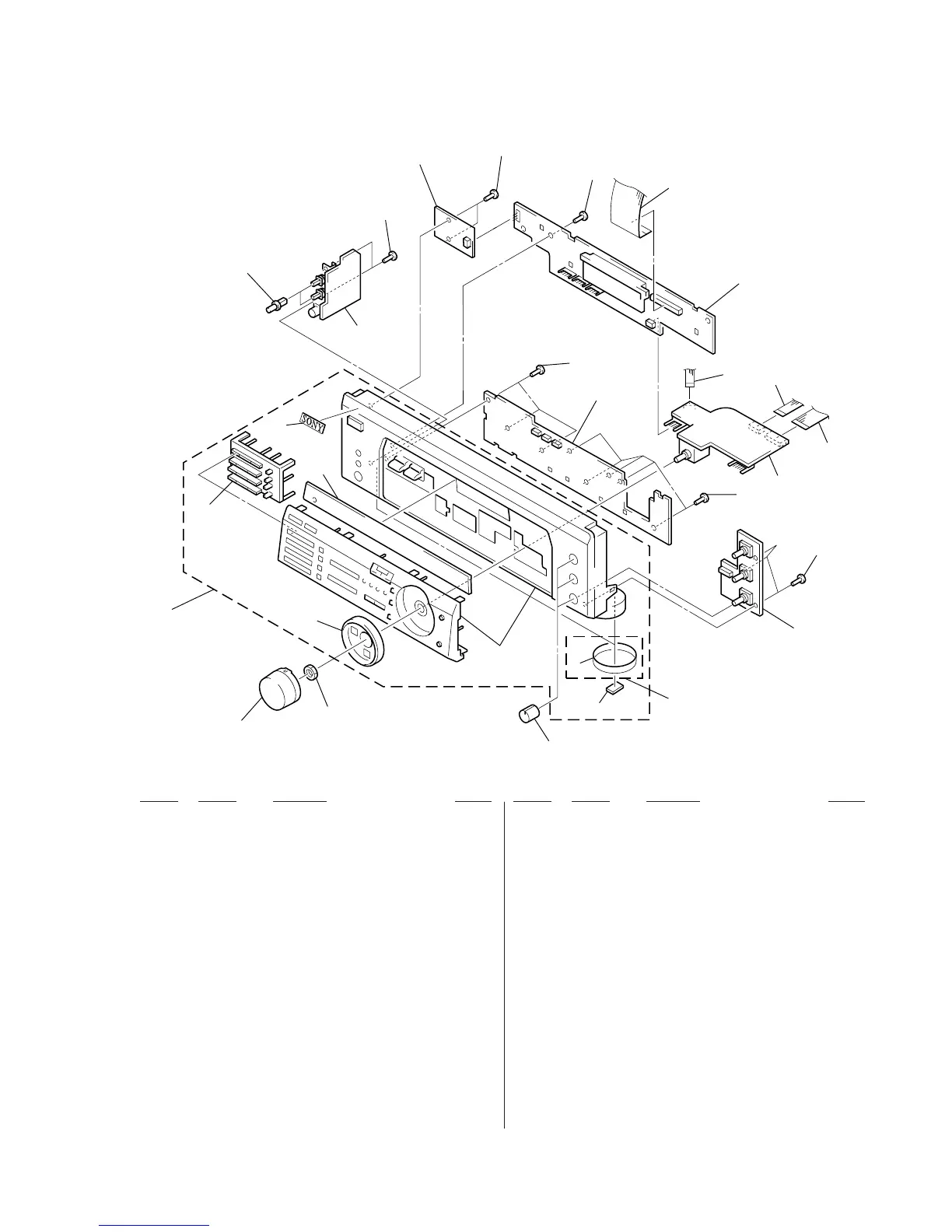

Sony STR-DE335 - Exploded Views - Front Panel Section; Front Panel Assembly Diagram

– 47 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
(2) FRONT PANEL SECTION
51 X-4951-035-1 KNOB (VOL) ASSY
52 X-4951-032-1 FRONT PANEL ASSY (DE335: CND)
52 X-4951-075-1 FRONT PANEL ASSY (DE335: AUS)
52 X-4951-076-1 FRONT PANEL ASSY (DE335: E, MY)
52 X-4951-089-1 FRONT PANEL ASSY (V323)
52 X-4951-424-1 FRONT PANEL ASSY (DE335: US)
52 X-4951-426-1 FRONT PANEL ASSY (SE391)
52 X-4951-499-1 FRONT PANEL ASSY (DE335: AEP)
52 X-4951-500-1 FRONT PANEL ASSY (DE335: SP)
53 4-216-792-01 RING (VOL)
54 4-216-779-01 BUTTON (KEY)
55 4-216-794-01 PLATE INDICATION
56 4-996-698-01 EMBLEM, SONY
57 4-951-801-01 BUTTON (S)
58 1-673-045-11 SP SW BOARD
59 4-951-620-01 SCREW (2.6X8), +BVTP
60 1-673-051-11 POWER SWITCH BOARD
61 1-765-403-11 WIRE (FLAT TYPE) (29 CORE)
62 A-4419-129-A DISPLAY BOARD, COMPLETE (DE335: AUS)
62 A-4419-135-A DISPLAY BOARD, COMPLETE (DE335: E)
62 A-4419-182-A DISPLAY BOARD, COMPLETE (SE391)
62 A-4419-472-A DISPLAY BOARD, COMPLETE
(DE335: US, CND))
62 A-4419-744-A DISPLAY BOARD, COMPLETE (DE335: AEP)
62 A-4419-752-A DISPLAY BOARD, COMPLETE
(DE335: MY, SP/V323)
63 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
64 1-765-314-11 WIRE (FLAT TYPE) (7 CORE)
65 1-769-972-11 WIRE (FLAT TYPE) (13 CORE)
66 1-673-043-11 VOLUME BOARD
67 1-673-044-11 TONE BOARD
68 A-4419-187-A KEY BOARD, COMPLETE (SE391)
68 A-4419-477-A KEY BOARD, COMPLETE
(EXCEPT DE335: AEP/SE391)
68 A-4419-746-A KEY BOARD, COMPLETE (DE335: AEP)
69 4-998-717-01 KNOB (BAL)
70 4-977-593-01 RING (DIA. 50) ORNAMENTAL
(EXCEPT DE335: US, CND/SE391)
57
58
59
60
59
59
61
62
59
63
68
59
59
67
66
70
69
51
52
53
54
55
56
not
supplied
not supplied
supplied
with RV404
65
64
except
DE335: US, CND/SE391
