Sony STR-DE425 - Exploded Views; Front Panel Assembly Exploded View

SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian G : German
EE : East European MY : Malaysia
AUS : Australian SP : Singapore
CH : Chinese
— 29 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

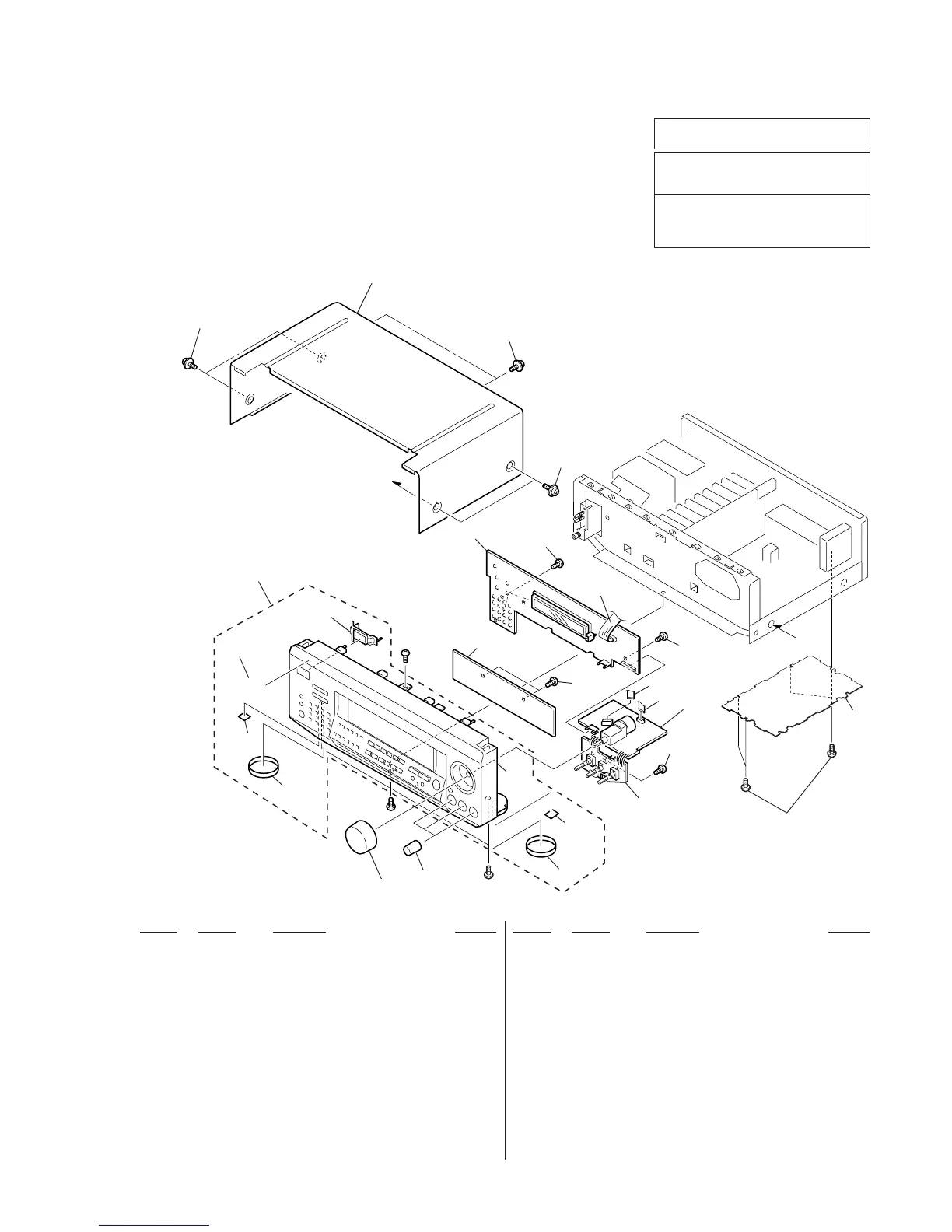

4-1. FRONT PANEL SECTION
pA : VOLUME board
a
SONY
a
15
16
16
16
10
9
7
6
12
5
4
3
2
1
3
4
11
10
8
#1
10
pA
10
not
supplied
not
supplied
#1
#1
#1
13
14
1 4-998-717-01 KNOB (BAL)
2 X-4949-627-1 KNOB (VOL) ASSY
3 4-977-593-11 RING(DIA.50),ORNAMENTAL(EXCEPT US,CND)
4 4-977-358-11 CUSHION (US,CND)
5 4-996-698-01 EMBLEM, SONY
6 4-998-189-01 BUTTON (P-T)
7 X-4949-624-1 FRONT PANEL ASSY (US,CND)
7 X-4949-676-1 FRONT PANEL ASSY (AUS)
7 X-4949-677-1 FRONT PANEL ASSY (AEP,UK,G,EE)
7 X-4949-683-1 FRONT PANEL ASSY (E,SP,MY,CH)
* 8 1-669-276-11 10 KEY BOARD
* 9 A-4407-449-A DISPLAY BOARD, COMPLETE(US,CND)
* 9 A-4407-531-A DISPLAY BOARD, COMPLETE(AUS)
* 9 A-4407-534-A DISPLAY BOARD, COMPLETE(E,SP,MY,CH)
* 9 A-4407-537-A DISPLAY BOARD, COMPLETE(AEP,UK,G)
* 9 A-4407-995-A DISPLAY BOARD, COMPLETE(EE)
10 4-951-620-01 SCREW (2.6X8), +BVTP
* 11 A-4407-451-A VR-TONE BOARD, COMPLETE
(US,CND,AUS,E,SP,MY,CH)
* 11 A-4407-539-A VR-TONE BOARD, COMPLETE(AEP,UK,G,EE)
12 1-782-086-11 WIRE (FLAT TYPE) (27 CORE)
13 1-769-911-11 WIRE (FLAT TYPE) (9 CORE)
14 1-769-972-11 WIRE (FLAT TYPE) (13 CORE)
* 15 4-998-206-01 CASE (413226)
16 3-710-901-11 SCREW (CASE) (M3X8)
