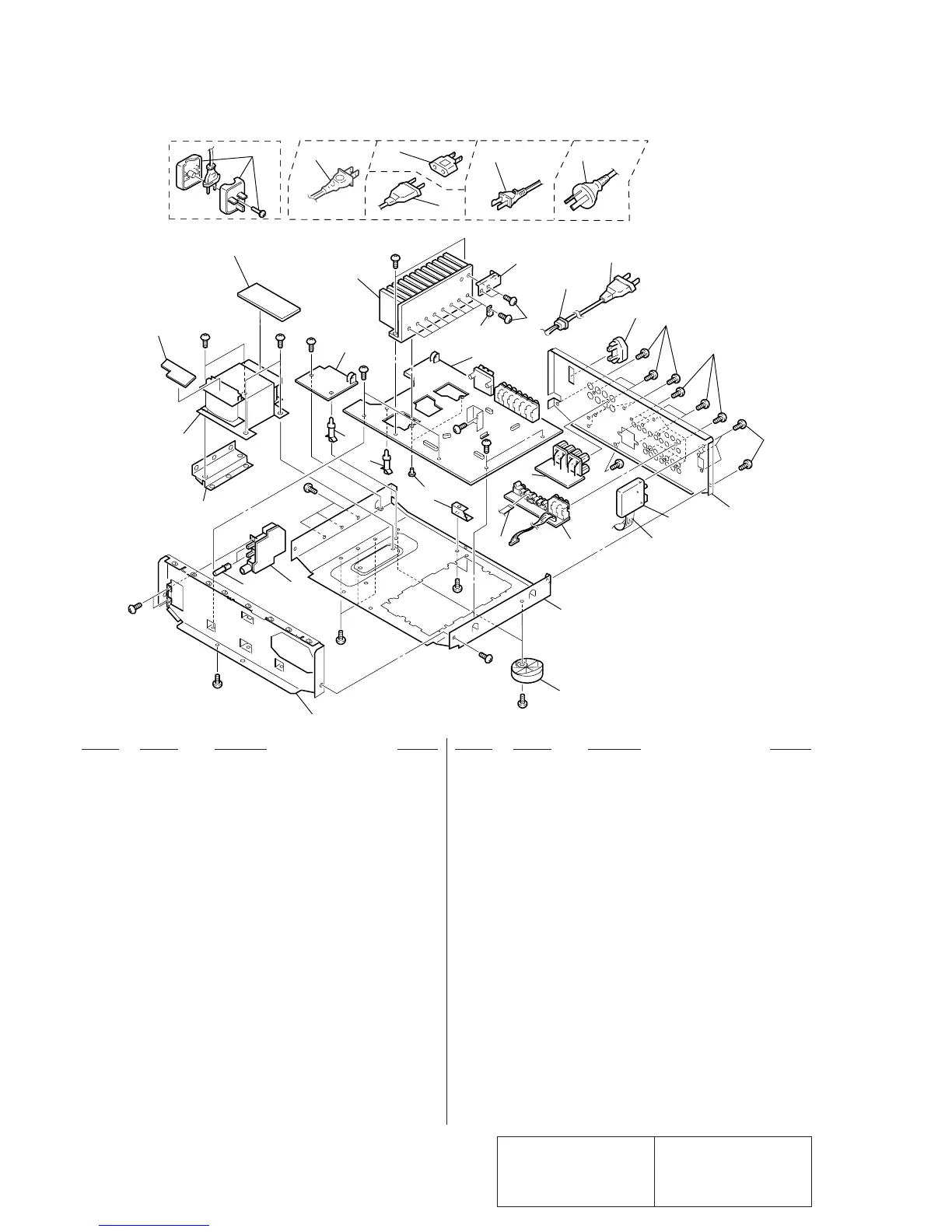

Sony STR-DE425 - Chassis Assembly Exploded View

— 30 —
4-2. CHASSIS SECTION
53
#2
#2
#1
#1
#1
#3
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
T901
not
supplied
Transistor
not supplied
CNJ902
not supplied
#1
not supplied
not supplied
54
57
58
59
63
64
62
65
61
66
51
52
56
60
55
56
#1
#3
58
58
58
67
58
E, PX MODEL
US, CND MODEL AUS MODEL
CH MODEL
EXCEPT US, CND, AUS, CH MODEL
67
UK MODEL
* 51 1-669-282-11 SP-SW BOARD
52 4-951-801-03 BUTTON (S)
* 53 1-669-280-11 PRIMARY BOARD
* 54 1-669-281-11 SECONDARY BOARD
* 55 1-669-279-11 STAND BY BOARD
* 56 4-954-051-51 HOLDER, PC BOARD
* 57 3-703-244-00 BUSHING (2104), CORD
! 58 1-777-071-21 CORD, POWER (EXCEPT US,CND,AUS,CH)
! 58 1-696-847-21 CORD, POWER (AUS)
! 58 1-777-071-11 CORD, POWER (CH)
! 58 1-783-204-11 CORD, POWER (US,CND)
* 59 4-998-205-01 BACK PANEL (E4)(US)
* 59 4-998-205-11 BACK PANEL (E4)(CND)
* 59 4-998-205-21 BACK PANEL (E4)(AUS)
* 59 4-998-205-31 BACK PANEL (E4)(E,SP,MY)
* 59 4-998-205-41 BACK PANEL (E4)(CH)
* 59 4-998-205-61 BACK PANEL (E4)(EE)
* 59 4-998-205-51 BACK PANEL (E4)(AEP,UK,G)
* 60 A-4407-457-A MAIN BOARD, COMPLETE (US)
* 60 A-4407-530-A MAIN BOARD, COMPLETE (CND)
* 60 A-4407-533-A MAIN BOARD, COMPLETE (AUS)
* 60 A-4407-535-A MAIN BOARD, COMPLETE (E,SP,MY,CH)
* 60 A-4407-545-A MAIN BOARD, COMPLETE(AEP,UK,G,EE)
* 61 1-669-284-11 SP-SCREW BOARD (AEP,UK,G,EE,E,SP,MY,CH)
* 62 1-669-283-11 VIDEO BOARD
63 1-693-407-41 TUNER (US,CND)
63 1-693-408-41 TUNER (AUS,AEP,UK,G,E,SP,MY,CH)
63 1-693-411-41 TUNER (EE)
64 1-782-080-11 WIRE (FLAT TYPE) (15 CORE)
65 1-782-074-11 WIRE (FLAT TYPE) (7 CORE)
66 X-4947-207-1 FOOT ASSY (F50150S)(EXCEPT US,CND)
66 X-4947-208-1 FOOT ASSY (F50150S)(US,CND)
67 1-569-008-21 ADAPTOR, CONVERSION 2P (E)
67 1-770-019-11 ADAPTOR, CONVERSION 3P (UK)
! CNJ902 1-251-416-11 OUTLET, AC (AUS)
! CNJ902 1-526-794-11 OUTLET, AC (AEP,G,EE,E,SP,MY,CH)
! T901 1-431-267-11 TRANSFORMER, POWER (US)
! T901 1-431-268-11 TRANSFORMER, POWER (CND)
! T901 1-431-270-11 TRANSFORMER, POWER (AUS)
! T901 1-431-791-11 TRANSFORMER, POWER (AEP,UK,G,EE)
! T901 1-431-792-11 TRANSFORMER, POWER (E,SP,MY,CH)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
